BRAKES,
WHEELS
AND
TIRES
------------
./
'. ,
....
':
.
,-',
.
,-'
. .
,..:;"','';'.~
~
''':'~>)o~,~;
-'
F

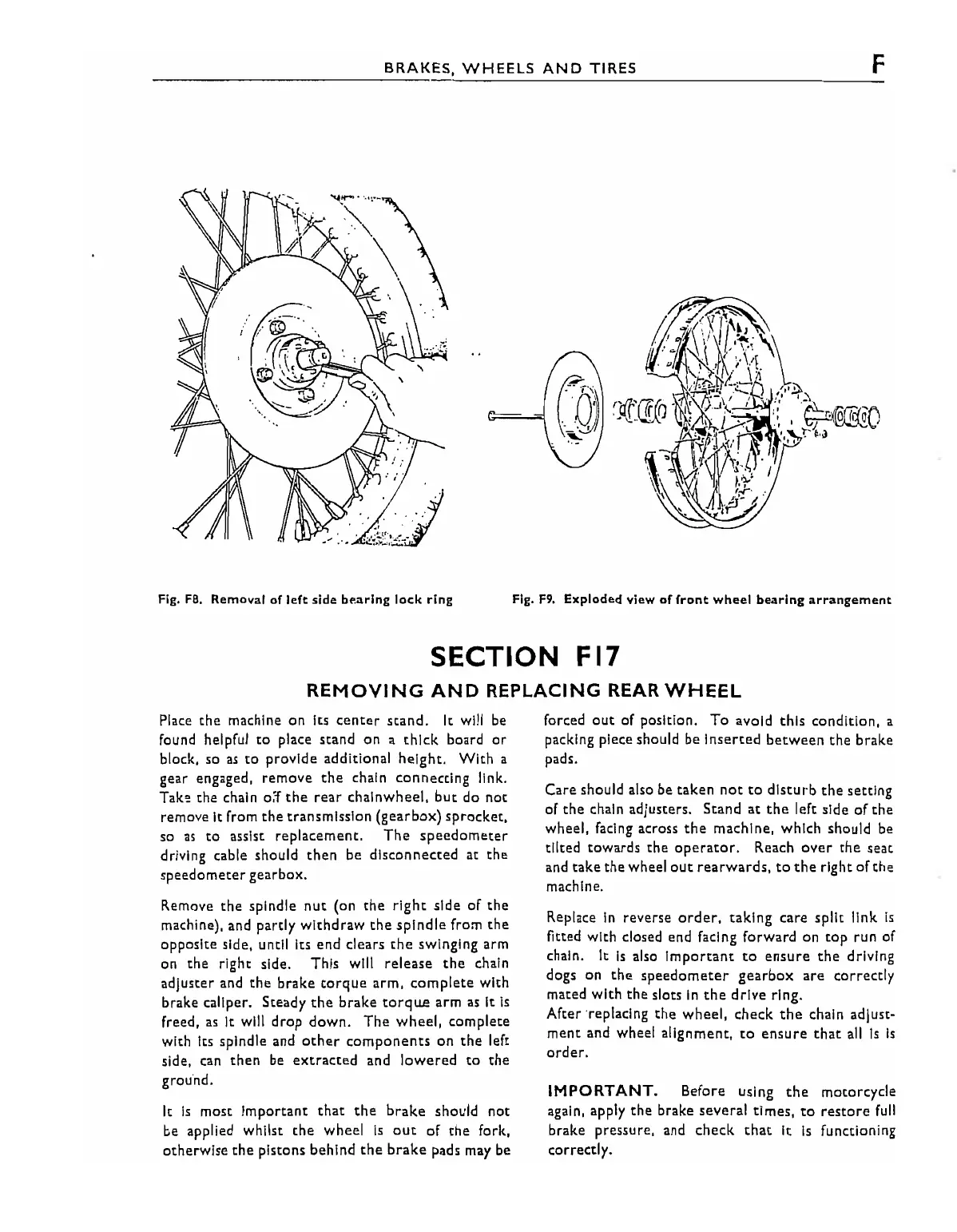

Fig.
FB.
Removal
of
left
side
bearing
lock
ring
Fig.
F9.
Exploded
view
of
front
wheel
bearing
arrangement
SECTION
FI7
REMOVING
AND
REPLACING
REAR
WHEEL
Place
the
machine
on
its
center
stand.
It will be
found helpful
to
place
stand
on
a
thick
board
or
block,
so
as
to
provide
additional
height.
With
a
gear engaged, remove the
chain
connecting link.
Tab
the
chain
oJ
the
rear
chainwheel,
but
do
not
remove
It
from
the
transmission
(gearbox)
sprocket,
so
as
to
assIst replacement.
The
speedometer
driving cable
should
then
be
disconnected
at
the
speedometer gearbox.
Remove
the
spindle
nut
(on
the
right
side
of
the
machine), and
partly
withdraw
the
spindle
from
the
opposite
side, until Its
end
clears
the
swinging
arm
on
the
right
side.
This
will
release
the
chain
adjuster
and
the
brake
torque
arm,
complete
with
brake
caliper.
Steady
the
brake
torque
arm
as It
is
freed, as It will
drop
down.
The
wheel,
complete
with Its
spindle
and
other
components
on
the
left
side,
can
then be extracted and
lowered
to
the
ground.
It
is
most
Important
that
the
brake
should
not
be applied
whilst
the
wheel
Is
oUt
of
the
fork,
otherwise
the
pistons
behind
the
brake
pads
may be
forced out
of
position.
To
avoid this condition, a
packing piece should
be
inserted
between
the
brake
pads.
Care
should also
be
taken
not
to
disturb
the
setting
of
the
chain
adjusters.
Stand
at
the
left
side
of
the
wheel,
facing across
the
machine,
which
should
be
tilted towards the
operator.
R.each
over
the
seat
and
take
the
wheel
oUt
rearwards,
to
the
right
of
the
machine.
Replace
in
reverse
order,
taking
care
spilt
link
Is
fitted
with
closed end facing
forward
on
top
run
of
chain. It
Is
also
Important
to
ensure
the
driving
dogs
on
the speedometer gearbox are correctly
mated
with
the
slots
In
the
drive
ring.
After
'replacing
the
wheel,
check
the
chain adJust-
ment
and
wheel
alignment.
to
ensure
that
all
Is
Is
order.
IMPORTANT.
Before
using
the
motorcycle
again, apply
the
brake
several
times,
to
restore
full
brake
pressure,
and
check
chat
It
Is
functioning
correctly.
F13
