ENGINE
B

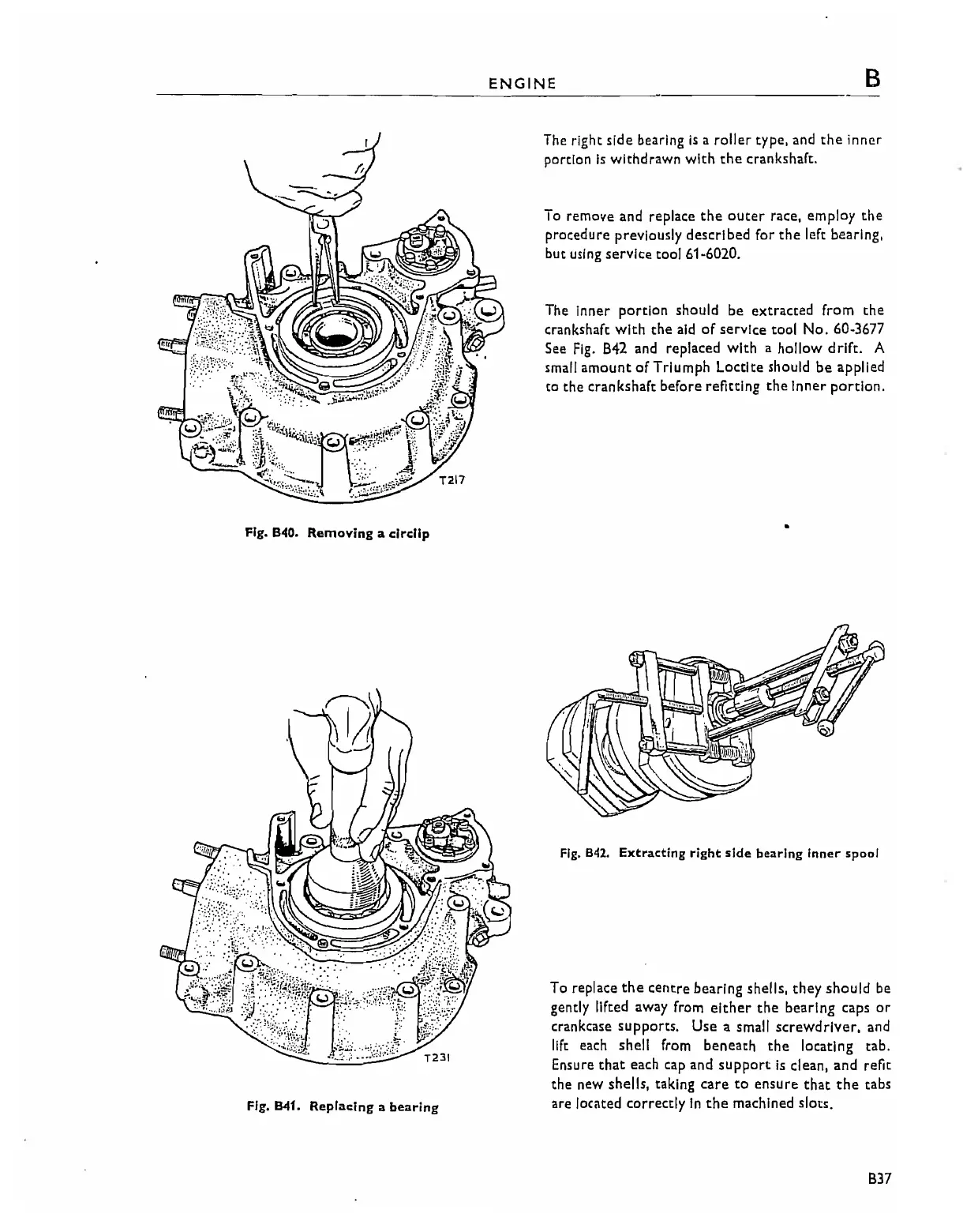

Fig.
B-40.
Removing a circllp
Fig. 841.
Replacing
a
bearing
The right side bearing
is
a roller type, and
the
inner
portion
is
withdrawn with
the
crankshaft.
To remove
and
replace
the outer
race.
employ
the
procedure previously described for
the
left bearing,
but using service tool 61-6020.
The inner portion should be extracted from the
crankshaft
with
the
aid
of
service tool
No.
60-3677
See
Fig.
B42
and replaced with a hollow
drift.
A
small
amount
of Triumph Loctlte should
be
applied
to the crankshaft before refitting
the
inner
portion
.
•
Fig.
842. Extracting right
side
bearing Inner
spool
To replace
the
centre bearing shells, they should be
gently lifted away from
either
the
bearing caps
or
crankcase supports. Use a small
screwdriver,
and
lift each shell from beneath
the
locating tab.
Ensure
that
each cap and
support
is
clean, and refit
the new shells, taking
care
to
ensure
that
the
tabs
are located correctly
in
the
machined slots.
