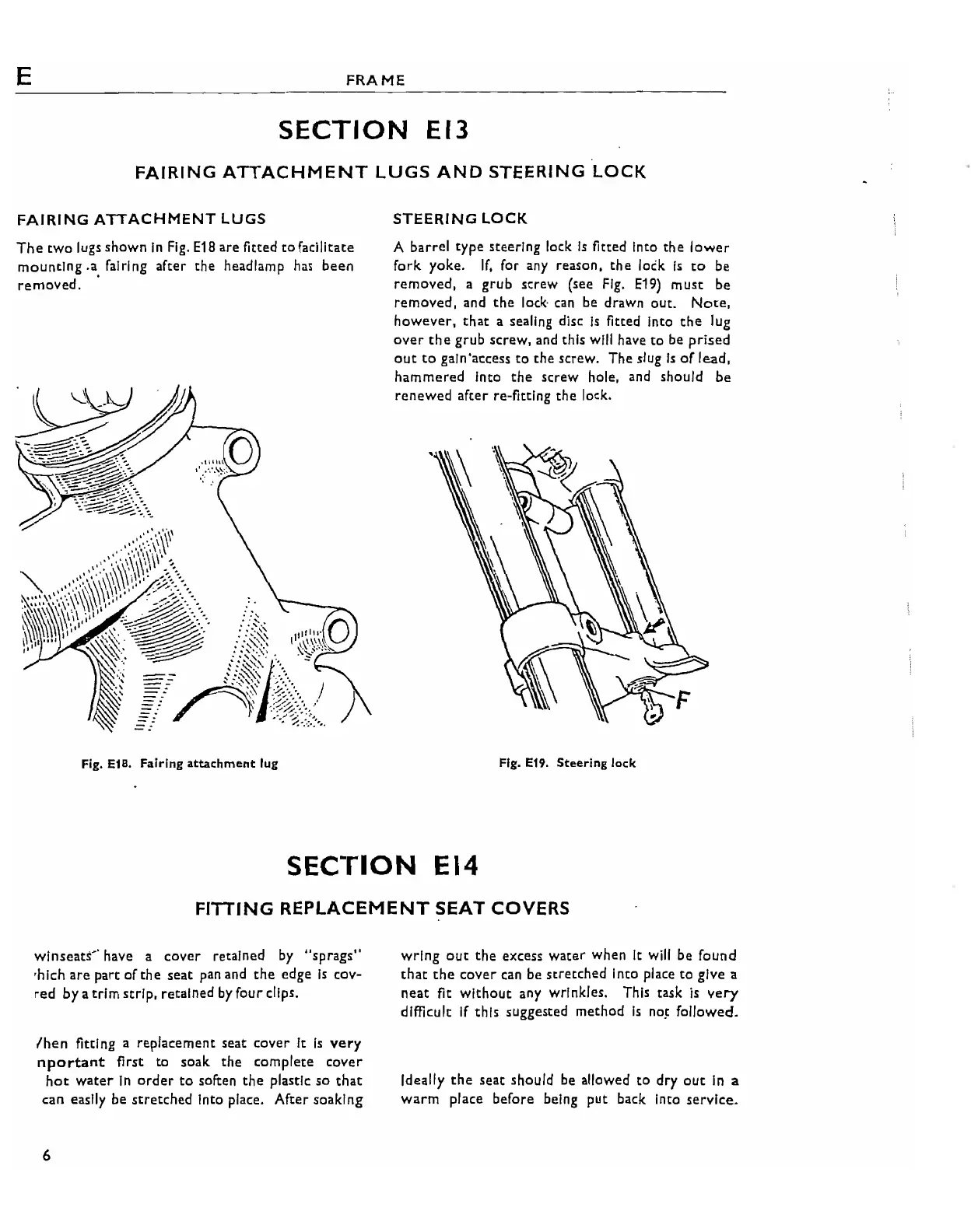

E
FRAME
SECTION
EI3
FAIRING
ATTACHMENT
LUGS
AND
STEERING
LOCK
FAIRING
ATTACHMENT
LUGS
The
tWo
lugs shown
In
Fig.
E18
are fitted
to
facilitate
mountlng.a
fairing after the headlamp
has
been
removed.
.
STEERING
LOCK
A barrel type steering lock
Is
fitted Into the
lower
fork yoke.
If,
for
any
reason,
the
lock
Is
to
be
removed, a grub screw (see
Fig.
E19)
must
be
removedI
and
the lock
can
be
drawn
QUt.
Note,
however,
that
a sealing dist
Is
fitted Into
the
Jug
over
the
grub screw, and this will have
to
be
prlsed
out
to
galn'aceess
to
the screw. The slug
Is
of
lead,
hammered
Into
the
screw hole, and should be
renewed
after re-fittlng the lock,
Fig. E18. Fairing
attachment
lug Fig.
E19.
Steering
lock
SECTION
EI4
FITTING
REPLACEMENT
SEAT
COVERS
winseats
...
· have a cover retained
by
"sprags"
'hlch
are
part of the
seat
pan
and
the
edge
Is
cov-
red by a trim strip, retained
by
four dips.
then
fitting a replacement seat cover It
Is
very
nportant
first to soak the complete cover
hot
water
In
order
to
soften
the
plastic so
that
can easily be
stretched
Into place, After soaking
6
wring
out
the
excess wacer when It will be found
that
the
cover
can be stretched Into place
to
give a
neat fit
without
any wrinkles. This task
is
very
difficult
If
this suggested method
Is
no.t
followed.
Ideally
the
seat should be allowed
to
dry oUt
In
a
warm
place before being
put
back Into
service.
