Triumph Trident T160 - B30 VALVE TIMING

ENGINE
B
A spacing washer Is fitted behind the pinion. and If
removed should be placed In safe-keeping.
RE-ASSEMBLY
Replace the spacing washer and re-fit the key to the
shaft.
Fit
the pinion with the chamfer and timing dot
outwards.
Assembly of the pinion Is aided by service tool
61-6024. which consists of a tubular drift and guide,
and ensures correct alignment.
Screw the guide Onto the crankshaft. and slide the
pinion over It, after having greased the pinion bore.
Align the key and key way, and drive the pinion onto
the crankshaft.
SECTION 830
VALVE TIMING

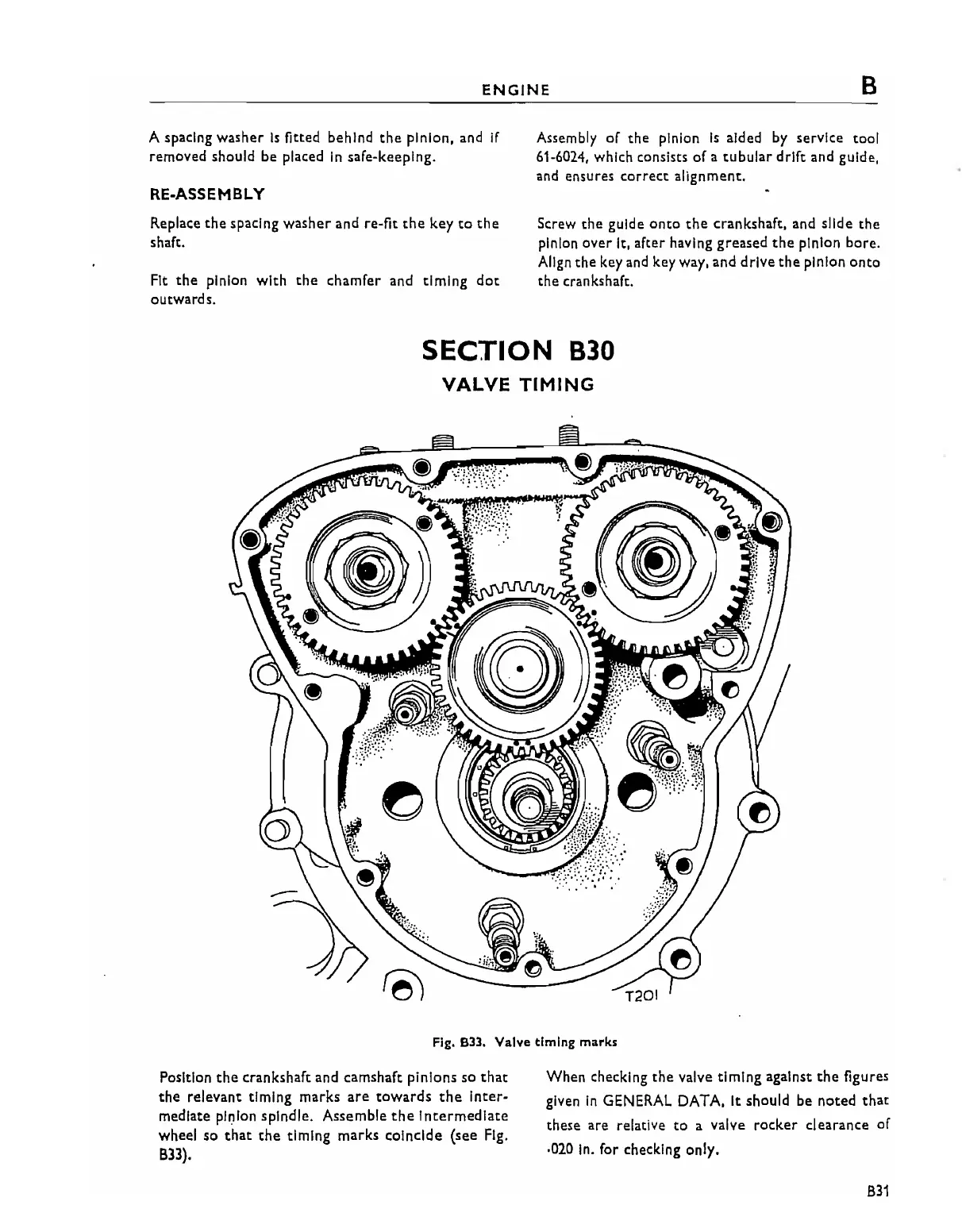

Fig. B33. Valve timing marks
Position the crankshaft and camshaft pinions so that
the relevant timing marks are towards the Inter-
mediate pl~lon spindle. Assemble the Intermediate
wheel so that the timing marks coincide (see Fig.
633).
When checking the valve timing against the figures
given
In GENERAL DATA. It should be noted that
these are relative to a valve rocker clearance of
.010 In. for checking only.
