Triumph Trident T160 - Electric Starter Mechanism

H
1 STARTER MOTOR COMPLETE
2 THROUGH FIXING BOLT
3 BRUSHES
4 COMMUTATOR END BRACKET
5 BEARING BUSH
6 THRUST PAD
7 INSULATING LINER
B PLATE COMPLETE
9 SPRING SET
1a END DRIVE BRACKET
11 BEARING BUSH
12 ARMATURE
13 FIELD COILS
H24
"
ELECTRICAL SYSTEM
,
::< ..

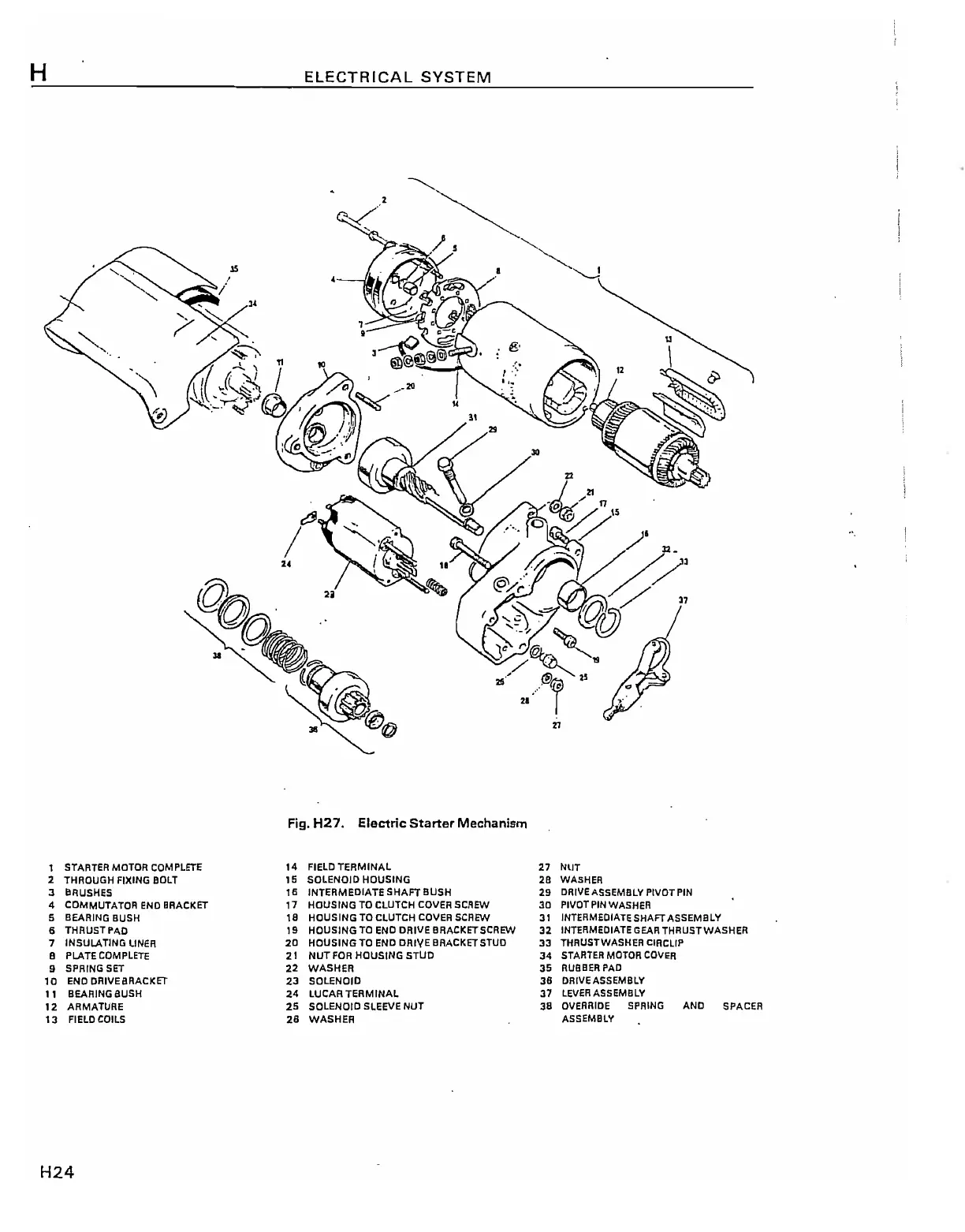

Fig. H27. Electric Starter Mechanism
14 FIELD TERMINAL
15 SOLENOID HOUSING
16 INTERMEDIATESHAFTBUSH
17 HOUSING TO CLUTCH CQVERSCAClN
18 HOUSINGTOCLUTCH COVER SCREW
19 HOUSING TO END DRIVE BAACKETSCREW
20 HOUSING TO END DRIVE BRACKETSTUD
21 NUT FOR HOUSING STUD
22 WASHER
23 SQLENOID
24 LUeAR TERMINAL
25 SOLENOID SLEEVE NUT
26 WASHER
Z1
27 NUT
28 WASHER
29 DRIVE ASSEMBLY PIVOT PIN
30 PIVOT PIN WASHER
31 lNTERMEOIATESHAFTASSEMBLY
32 INTERMEDIATE GEAR THRUSTWASHER
33 THRUSTWASHER CIRCLIP
-34 STARTER MorOR COVER
35 RUBBER PAD
36 DRIVEASSEMBLY
37 LEVER ASSEMBLY
3B OVERRIDE SPRING AND SPACER
ASSEMBLY
