Triumph Trident T160 - Exploded View of Carburetter

18-----11
21---"""":(.1
23----4:t;;;;
25-------.1
2. ------<~.JI11\
1. CARBURETTER BODY
1. '0' RING
J. MIXING CHAMaE!', TOP
-t. RETAINING SCREW
S. THROTTLE VALVE
6. SPRING ABUTMENT
7. SPRING
a. NEED lE CLIP
9. SPRING ABU"THENT
10. THROTTLE & ASSEMBLY
11. LOCKNUT
11. PILOT All'. SCREW
13. '0' RING
1'4. JET HOLDER
15. MAIN JET
16. NEEDLE JET
17. NEEDLE
18. FLOAT

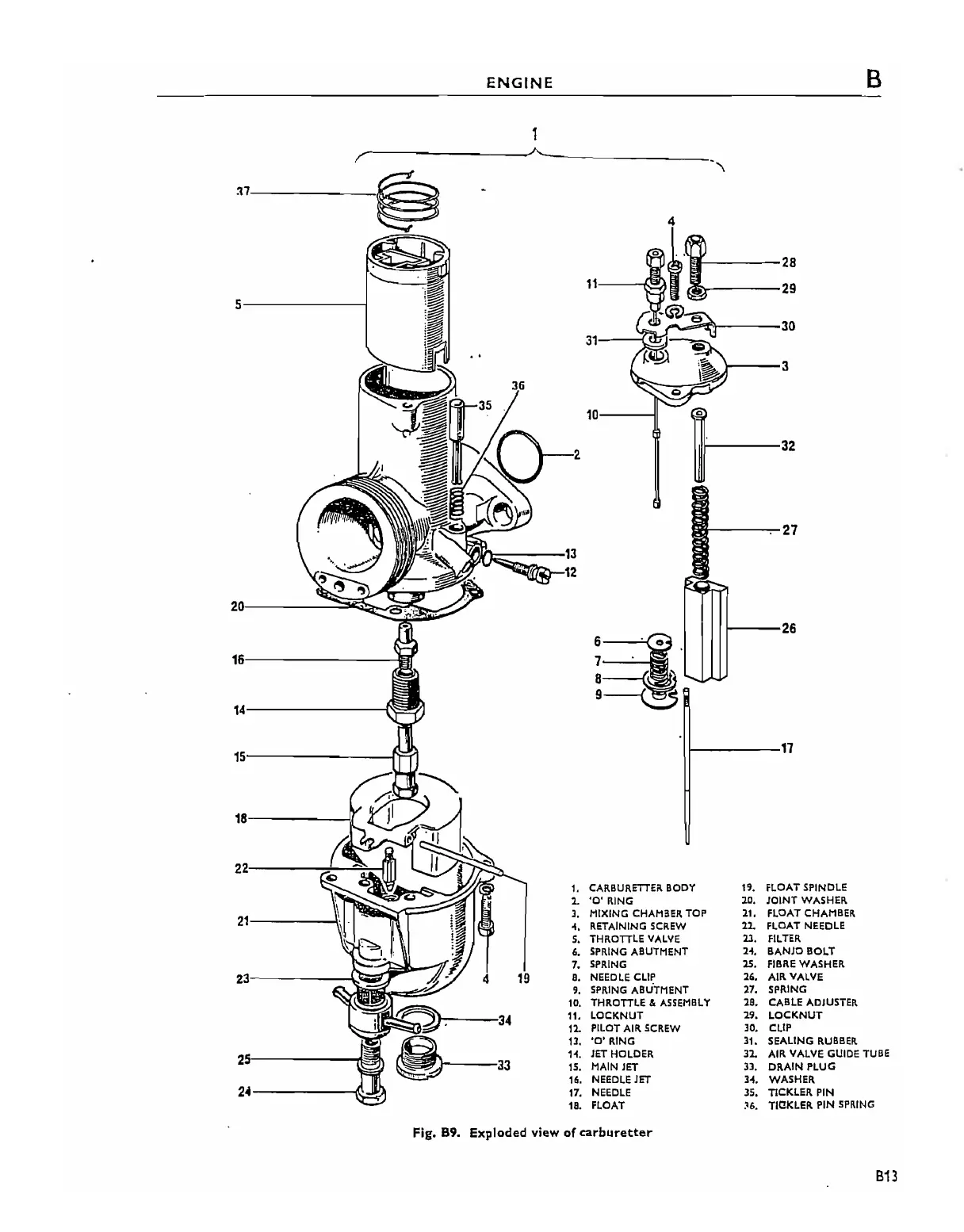

Fig. 89. Exploded view of carburetter
19. FLOAT SPINDLE
20.
JOINT WASHER
21. FLOAT CHAMBER
22., FLOAT NEEDLE
13. FILTER
2". BANJO BOLT
25. fIBRE WASHER
26. All'. VALVE
27. SPRING
2B. CABLE ADJUSTER
29. LOCKNUT
30. CLIP
31. SEALING RUBBER
32., All'. VALVE GUIDE TUBE
33. DRAIN PLUG
3... WASHER
35. TICKLER PIN
M. TIOKlER PIN SPRING
