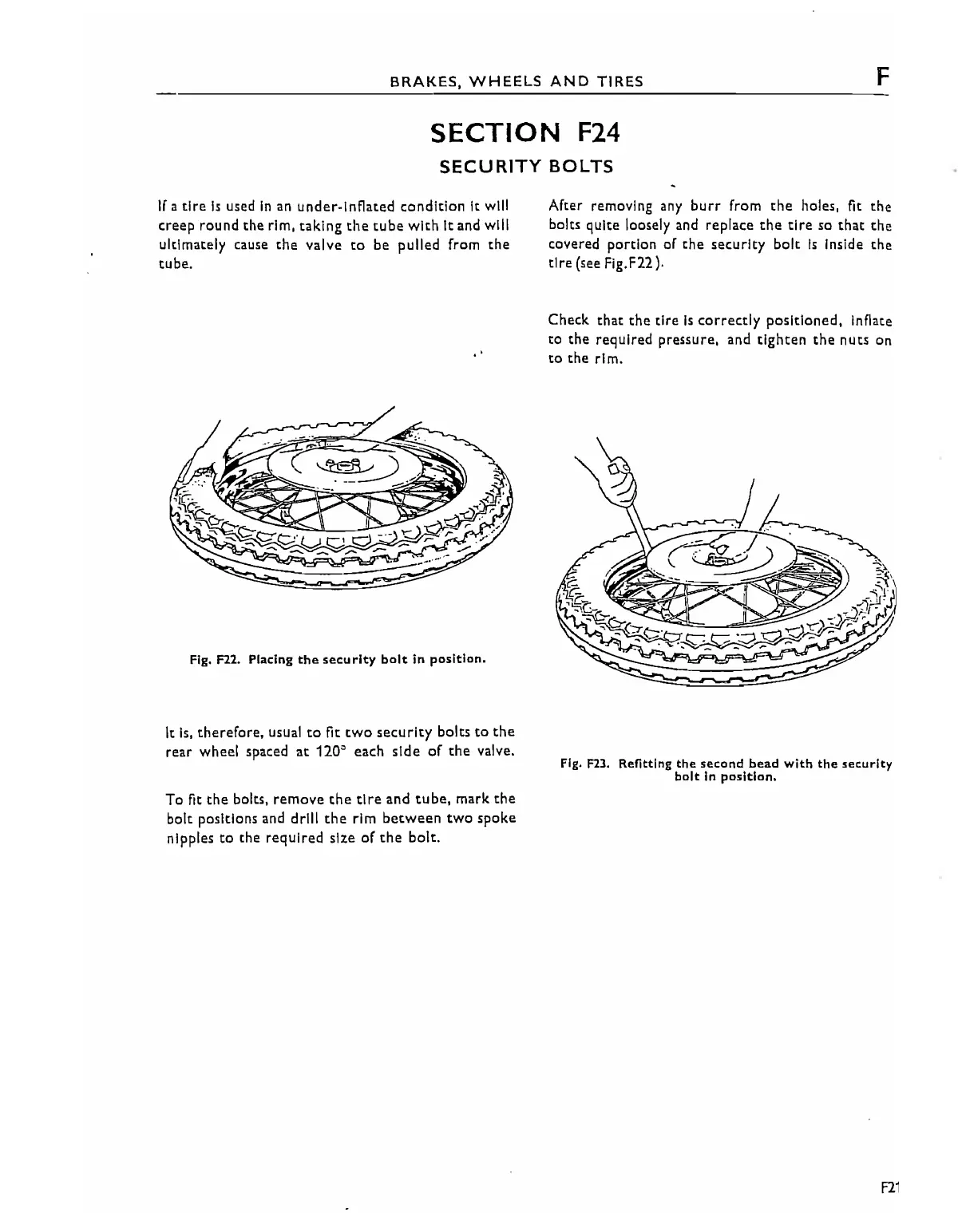

Triumph Trident T160 - F24 SECURITY BOLTS

BRAKES, WHEELS AND TIRES
SECTION F24
SECURITY BOLTS
F
If a tire Is used in an under-Innated condition It wili
treep round the rim, taking the tube with it and will
uitlmately cause
the valve to be puiled from the
tube.
Fig. F22. Placing the security bolt in position.
It is, therefore, usual to fit two security bolts to the
rear wheel spaced at 120" each side of the valve.
To fit
the bolts, remove the tire and tube, mark the
bolt positions and drill the rim between two spoke
nipples to the required size of the bolt.
After removing any burr from the holes, fit the
bolts quite loosely and replace che tire so that the
covered portion of the security bolt Is inside the
tire (see Fig.F22).
Check
that the tire is correctly positioned, innate
to the required pressure, and tighten the nuts On
to the rim.
Fig. F23. Refitting the second bead with the security
bolt in position.
F21
