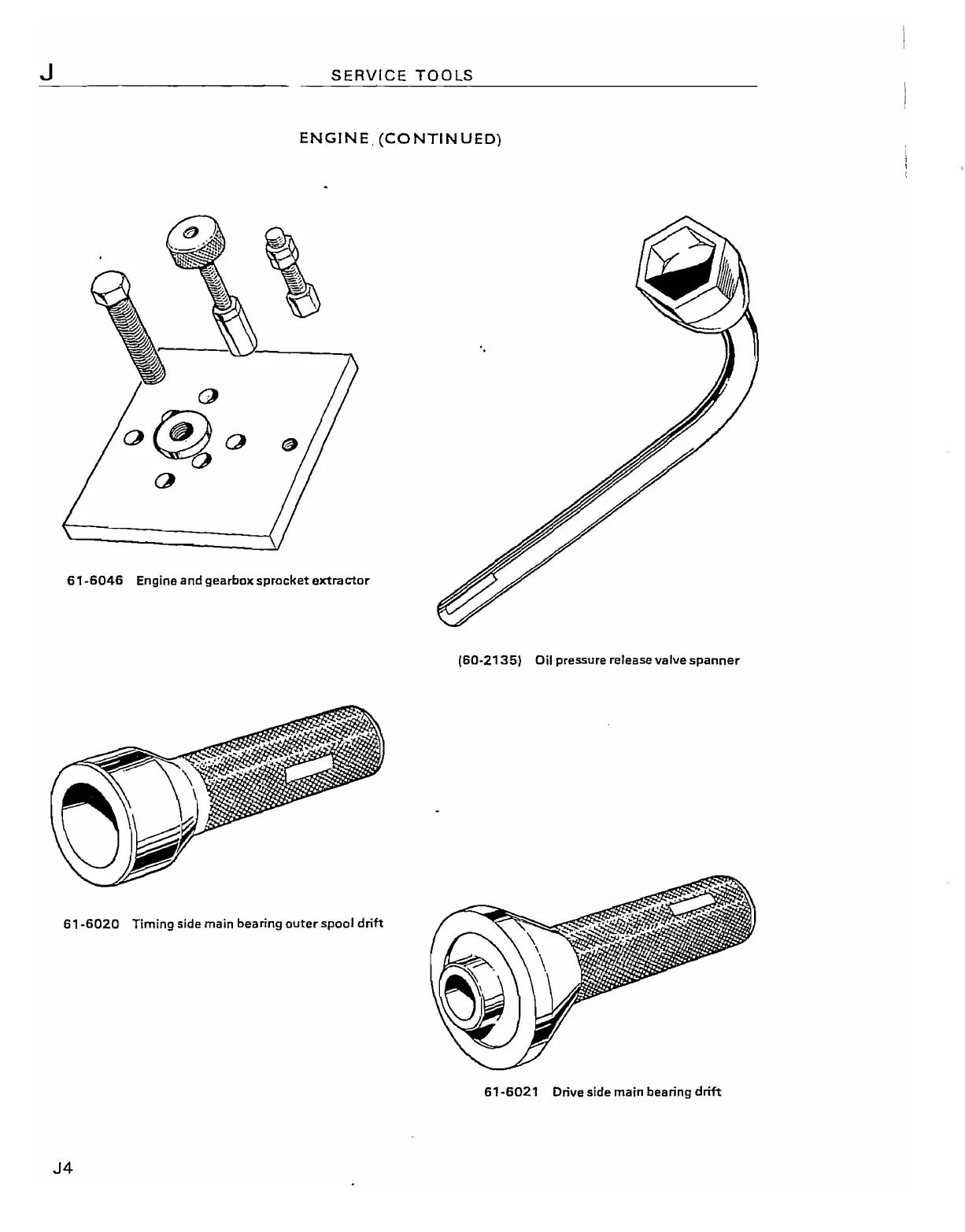

J

SERVICE

TOOLS

ENGINE.

(CONTINUED)

61-6046

Engine and gearbox sprocket

extractor

(60-2135)

Oil pressure release valve spanner

61-6020

Timing side main bearing outer spool drift

61-6021

Drive

side

main bearing drift

J4

ClassicBike.biz
