Triumph Trident T160 - C11 RENEWING SHOCK ABSORBER RUBBERS

PRIMARY DRIVE
SECTION CII

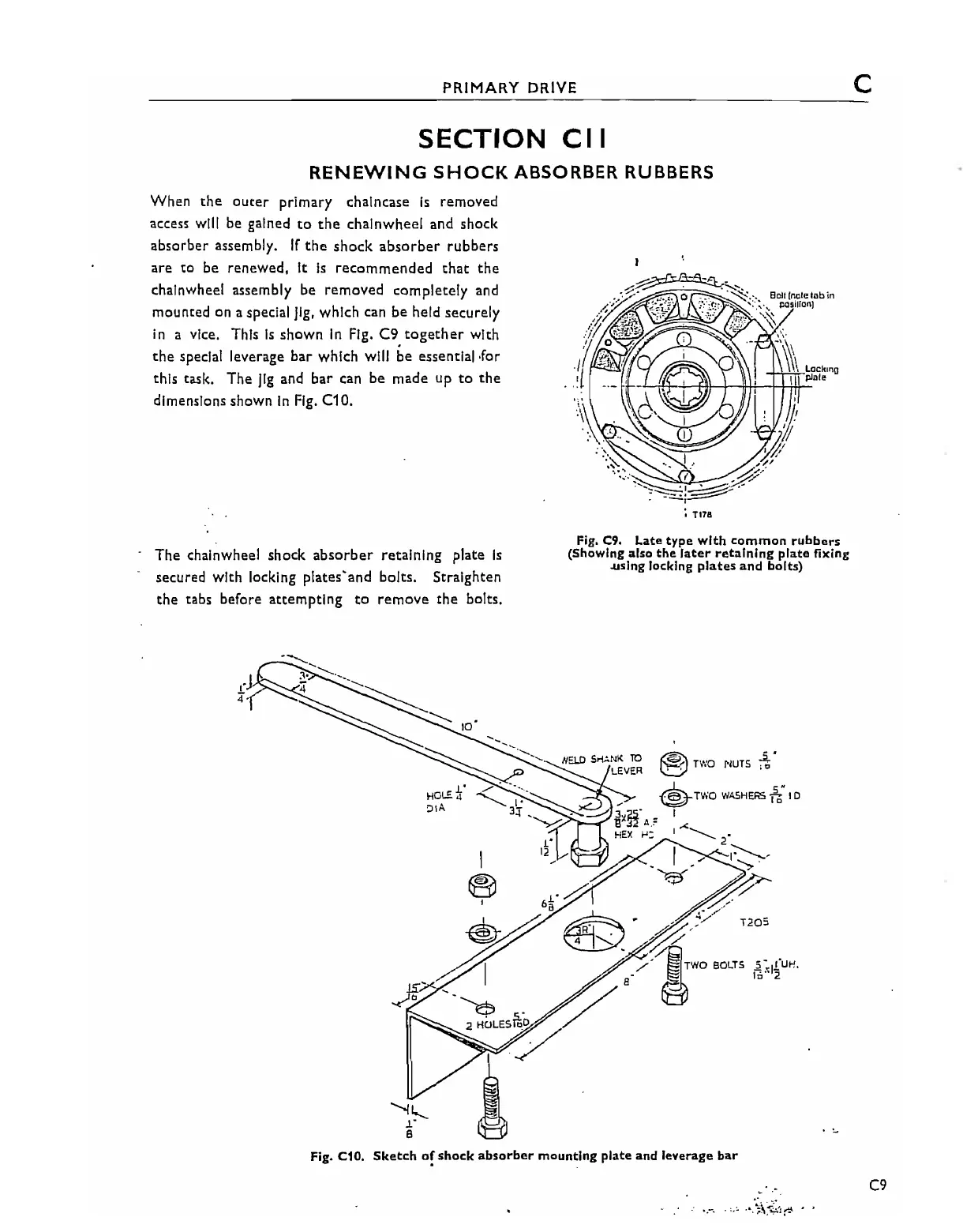

RENEWING SHOCK ABSORBER RUBBERS
c
When the outer primary chaincase is removed
access will be gained
to the chainwheel and shock
absorber assembly.
If the shock absorber rubbers
are to be renewed. It Is recommended that the
chainwheel assembly be removed completely and
mounted on a special Jig, which can be held securely
in a vice. This Is shown in Fig. C9 together with
the special leverage bar which will be essential·for
this task. The
Jig and bar can be made up to the
dimensions shown in Fig. C10.
The chainwheel shock absorber retaining plate is
secured with locking plates and bolts. Straighten
the tabs before attempting to remove the bolts.
: TI78
Fig. C9. Late type with common rubbers
(Showing also
the Jater retaining plate fixing
.using Jocking
plates and bolts)
~ TWO NUTS ft·
10
"t.....
r
B
Fig. C10. Sketch of shock absorber mounting plate and leverage bar
.a:II
UH
.
10" 2
.. ~
C9
