Triumph Trident T160 - Page 87

D
TRANSMISSION (GEARBOX)
13
11
12 16
1
6
2
7
3 4
5
D2
1. lOW GEAR
2. SECOND GEAR
J. THIRD GEAR
01. FOURTH GEAR
S. FIFTH GEAR
6. loW GEAR
7. SECOND GEAR
a. THIRD GEAR
9. FOURTH GEAR
10. FIFTH GEAR
11. HAINSHIFT
12. LAYSHIFT
13. FIRST GEAR. LAYSHAFT SELECTOR FORK
H. THIRD GEAR LA'l'SHAFT SELECTOR FORK
15. HAINSHAFT SELECTOR, FORK
16, LAYSHIFT ENGAGING DOG

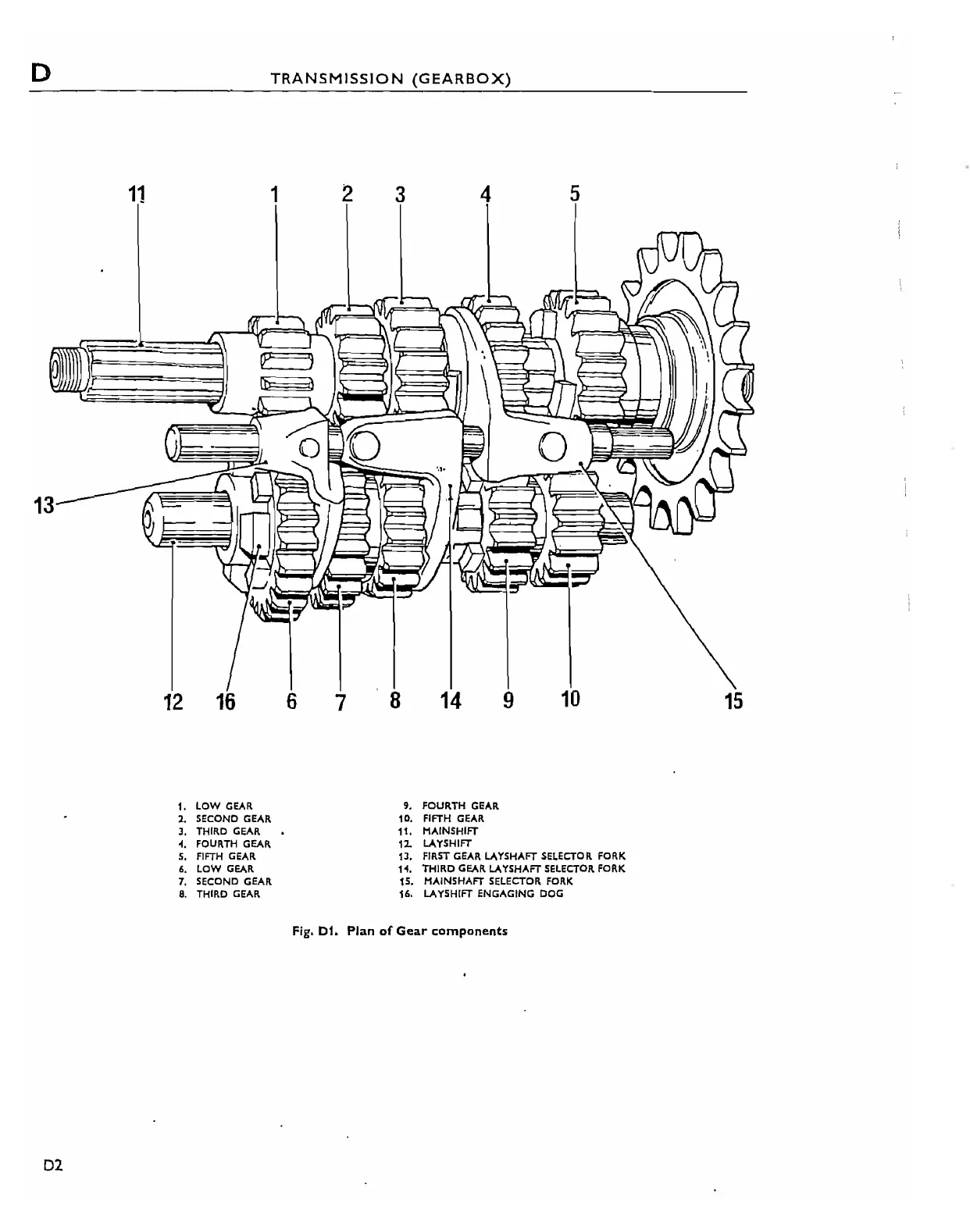

Fig. D1. Plan of Gear components
