VARI❋LITE - VL4000 BEAMWASH LUMINAIRE SERVICE MANUAL
82 02.9704.6010 0
Gobo 2 Sensor Index Assembly
21.9704.0260 Rev. B
Refer to Figure 3-37

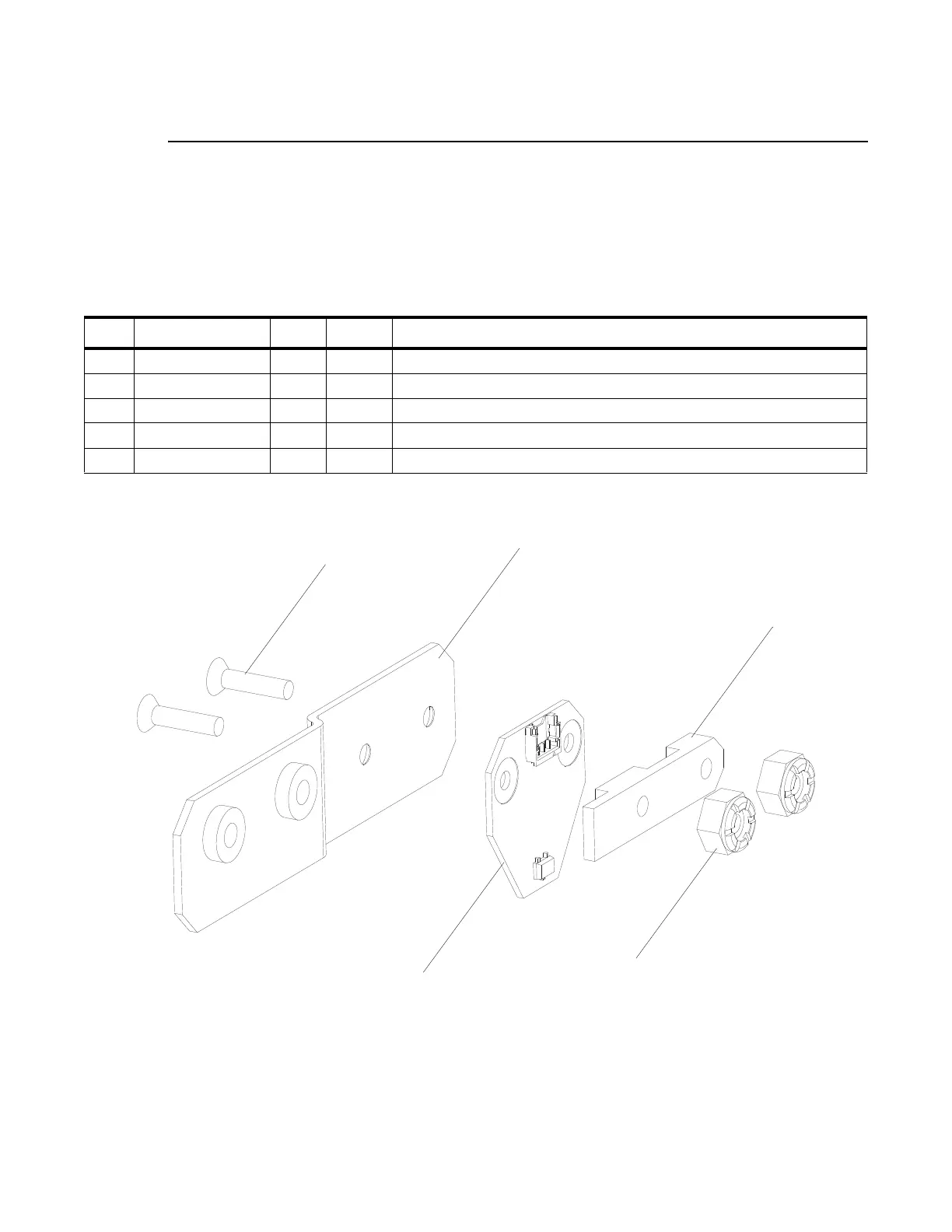

Figure 3-37: Gobo 2 Sensor Index Assembly
No. Item Qty. UM. Description
1 10.9704.0290 1 EA CLAMP, CONNECTOR, SENSOR BOARD
2 10.9704.0253 1 EA MOUNT, SENSOR BOARD, GOBO INDEX
3 53.2009.0006 2 EA NUT, 2-56 HEX NYLON LOCK SS
4 17.9704.0904 1 EA PCB ASSY, WHEEL POSITION SENSOR
5 53.6659.0014 2 EA SCREW, 2-56 X 3/8" PFB
5 (x2)
4
2
1
3 (x2)
