YOKE ASSEMBLY : TILT MOTOR WITH PULLEY ASSEMBLY
02.9704.6010 0 117
3
Tilt Motor with Pulley Assembly
21.9704.0764 Rev. A
Refer to Figure 3-58

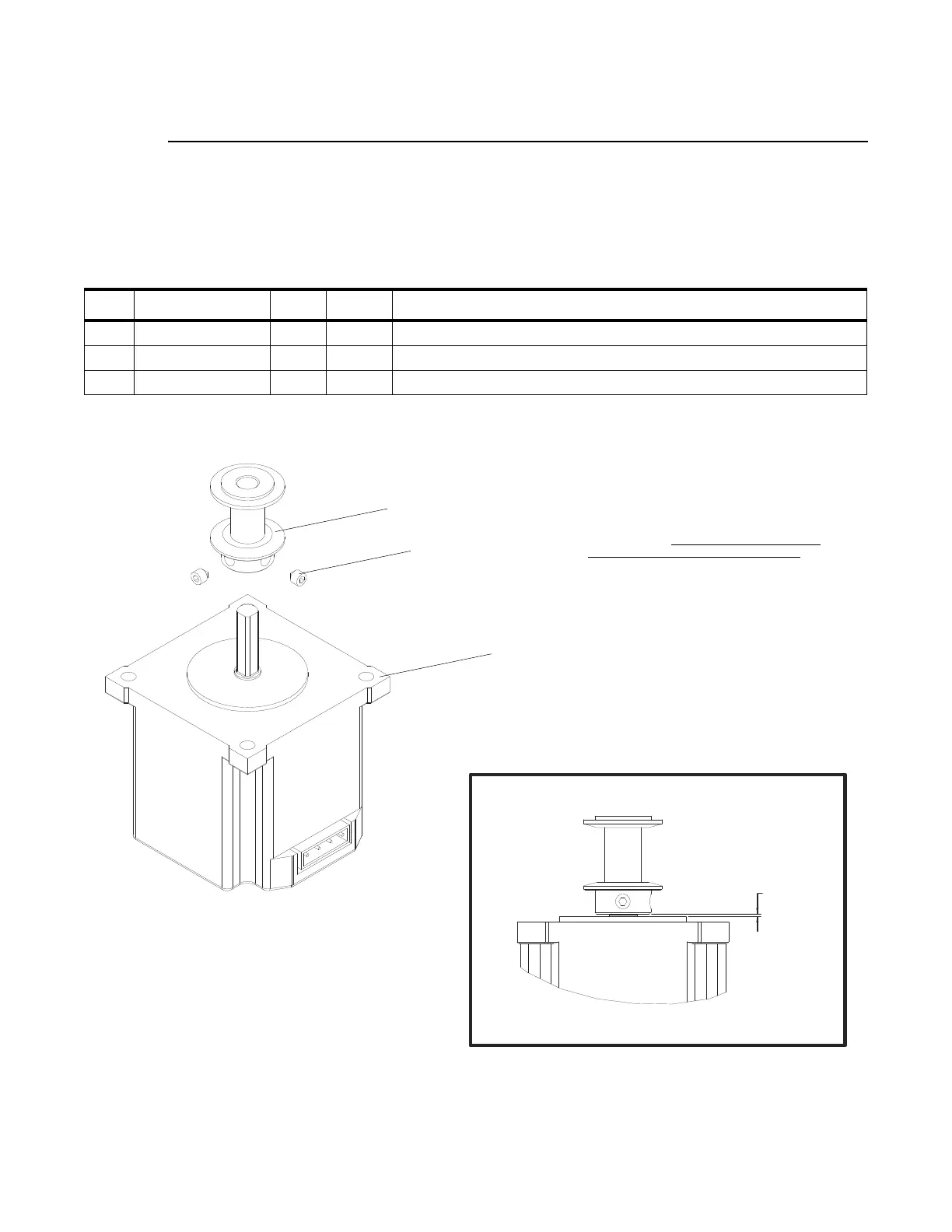

Figure 3-58: Tilt Motor with Pulley Assembly
No. Item Qty. UM. Description
1 10.9698.1749 1 EA 17T 2 MM TIMING PULLEY, WIDE BELT
2 44.9698.0680 1 EA MOTOR, 3 PHASE SZ 23 HI-TRQ, MOONS
3 53.5560.0187 2 EA SCREW, SET 8-32 X 3/16" L
1
NOTES:
A. APPLY ONE DROP OF LOCTITE 603 (BY
OTHERS) TO SHAFT. INSTALL ITEM 1 ONTO
MOTOR SHAFT WITH A TWISTING MOTION TO
ENSURE COMPLETE COVERAGE OF SHAFT
WITH LOCTITE. MAKE SURE LOCTITE DOES
NOT DRIP DOWN INTO MOTOR BEARING.
B. SET PULLEY AT HEIGHT SHOWN IN "PULLEY
HEIGHT DETAIL." DIMENSION IS FROM RAISED
CIRCLE ON MOTOR TO BOTTOM OF PULLEY.
A
B
3 (x2)
2
