VARI❋LITE - VL4000 BEAMWASH LUMINAIRE SERVICE MANUAL
158 02.9704.6010 0
Note: Cables are only available as complete assemblies. The information contained in this
section is for reference only.
VL4000 Tilt with Shield Cable Assembly
25.9704.2717 Rev. B
Refer to Figure 3-90

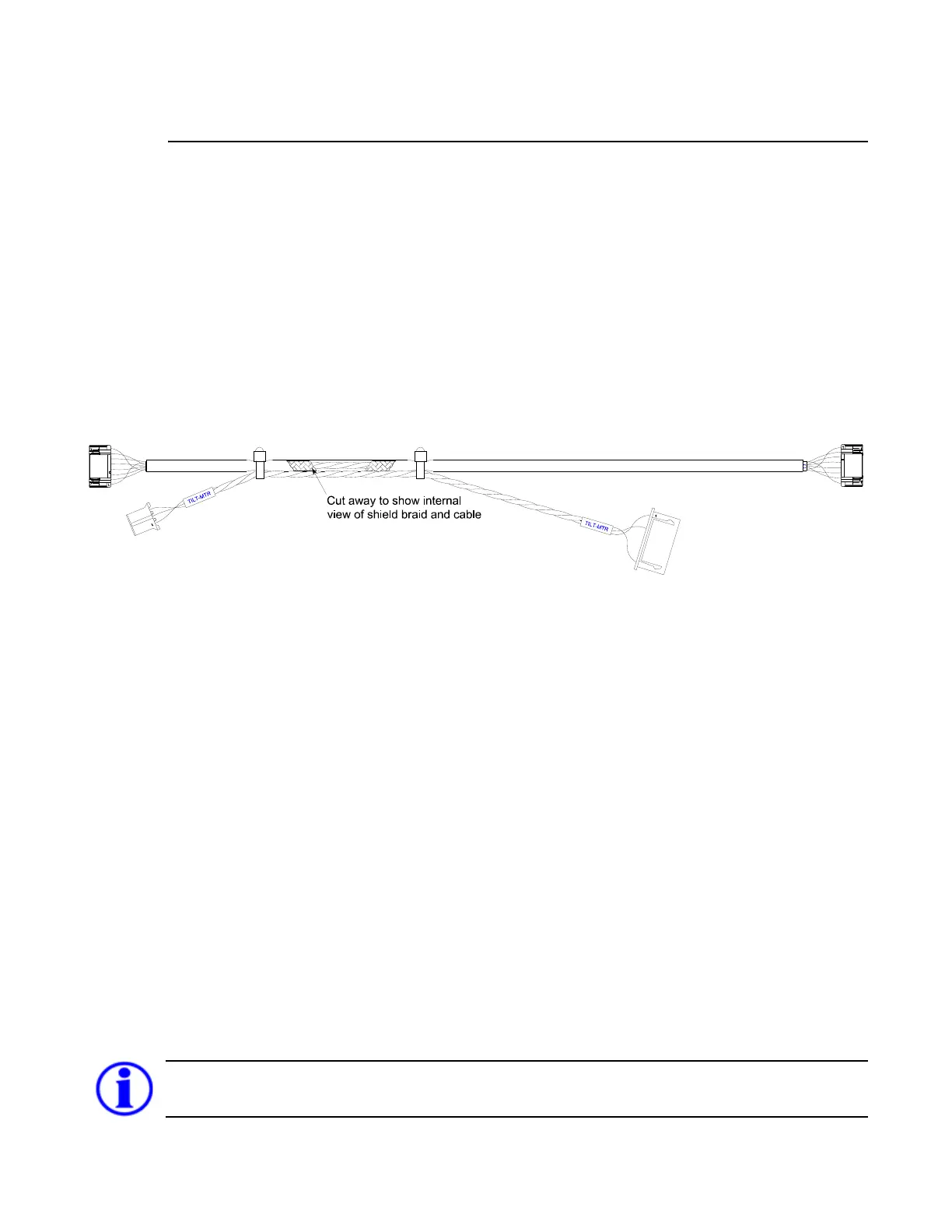

Figure 3-90: VL4000 Tilt with Shield Cable Assembly
