Vari Lite VL4000 - Upper Enclosure Cover Assembly

ENCLOSURE ASSEMBLY : UPPER ENCLOSURE COVER ASSEMBLY
02.9704.6010 0 137
3
Upper Enclosure Cover Assembly
21.9704.0850 Rev. A
Refer to Figure 3-70

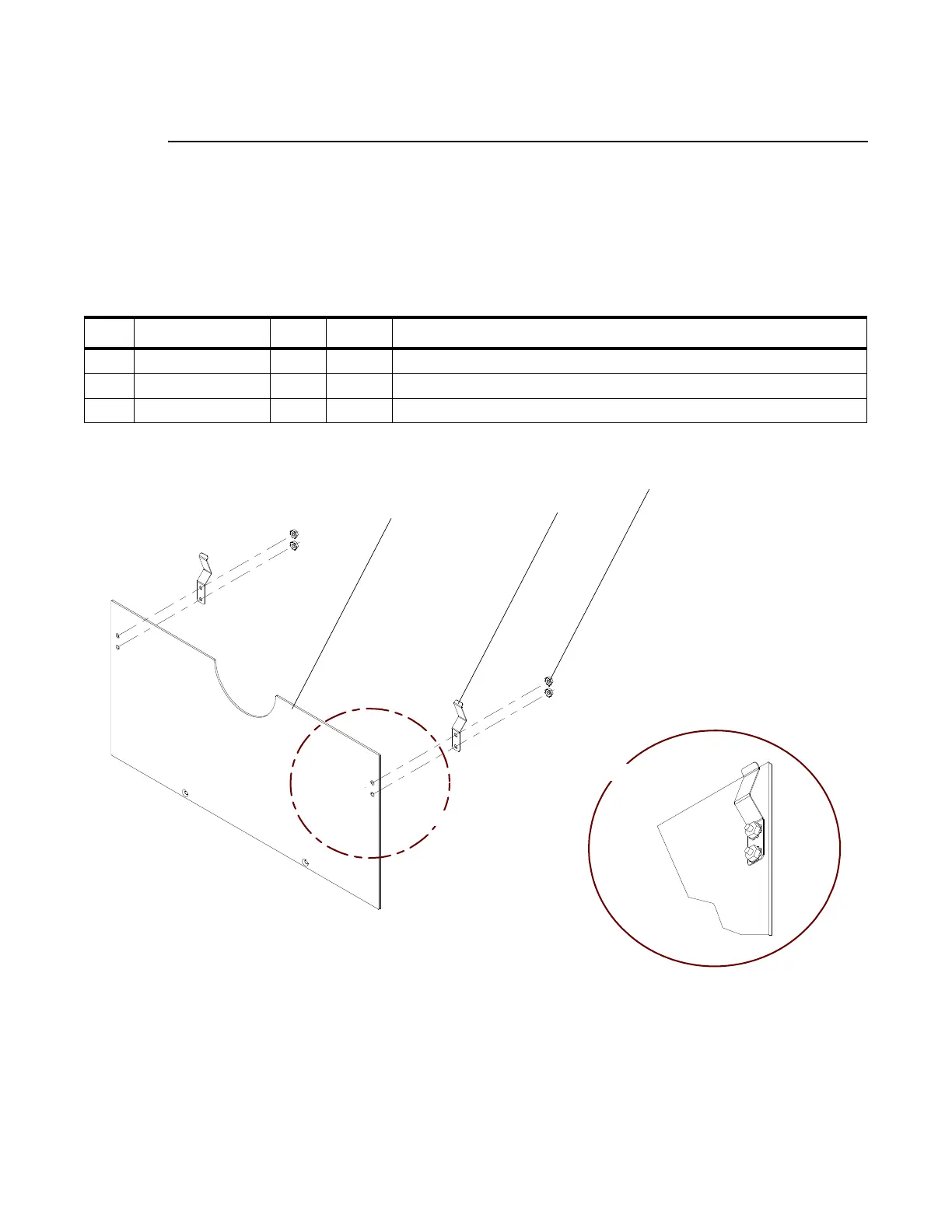

Figure 3-70: Upper Enclosure Cover Assembly
No. Item Qty. UM. Description
1 10.9704.0858 2 EA COVER LATCH SPRING
2 53.2200.0004 4 EA NUT, KEPS, 4-40
3 10.9704.0839 1 EA UPPER ENCLOSURE COVER
1 (x2)
3
2 (x4)
See Detail
Detail
