VARI❋LITE - VL4000 BEAMWASH LUMINAIRE SERVICE MANUAL
144 02.9704.6010 0
Note: Cables are only available as complete assemblies. The information contained in this
section is for reference only.
VL4000 Color Bulkhead 1 Cable Assembly
25.9704.0400 Rev. A
Refer to Figure 3-76

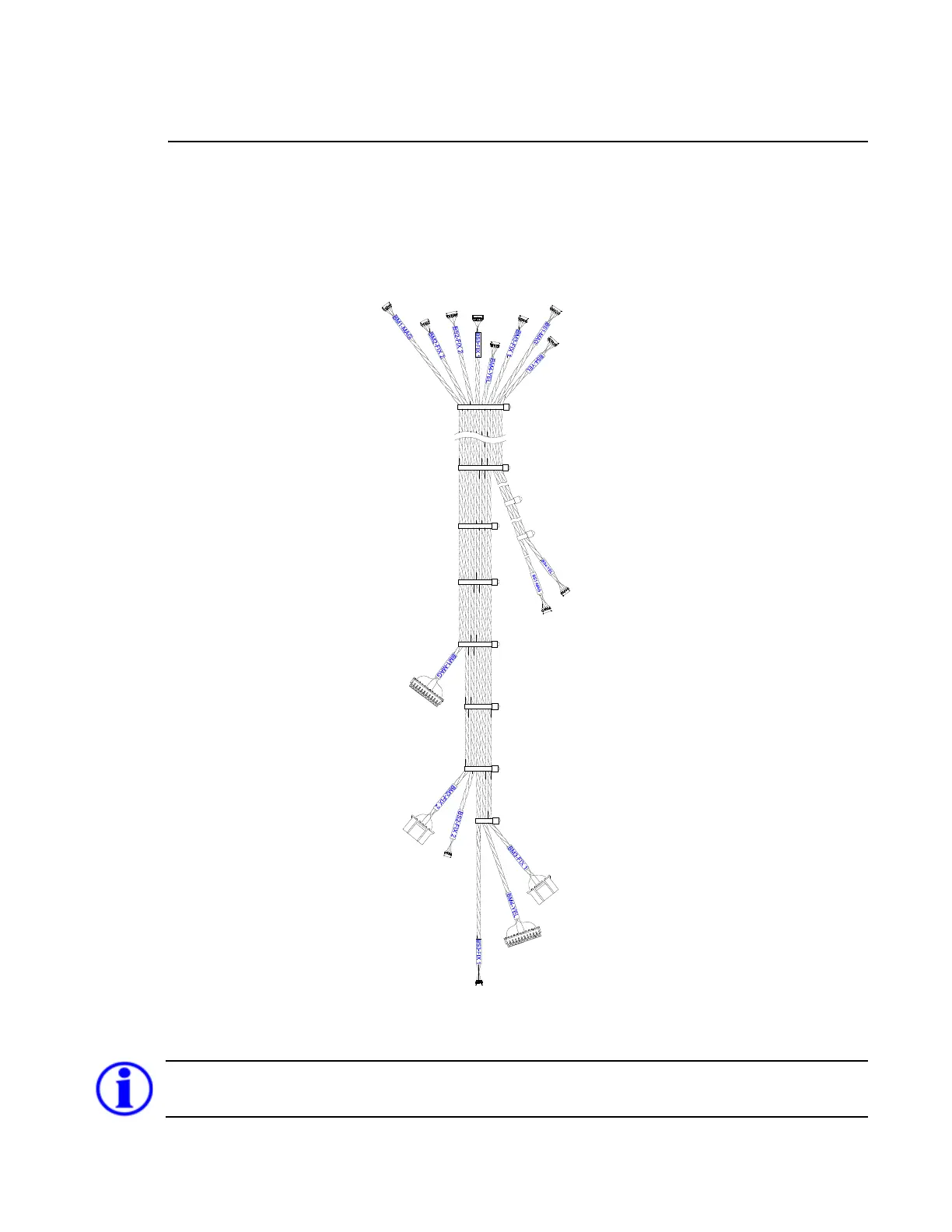

Figure 3-76: VL4000 Color Bulkhead 1 Cable Assembly
