Vari Lite VL4000 - Groove Belt Assembly

HEAD ASSEMBLY : 240 GROOVE BELT ASSEMBLY
02.9704.6010 0 97
3
240 Groove Belt Assembly
21.9704.0412 Rev. B
Refer to Figure 3-46

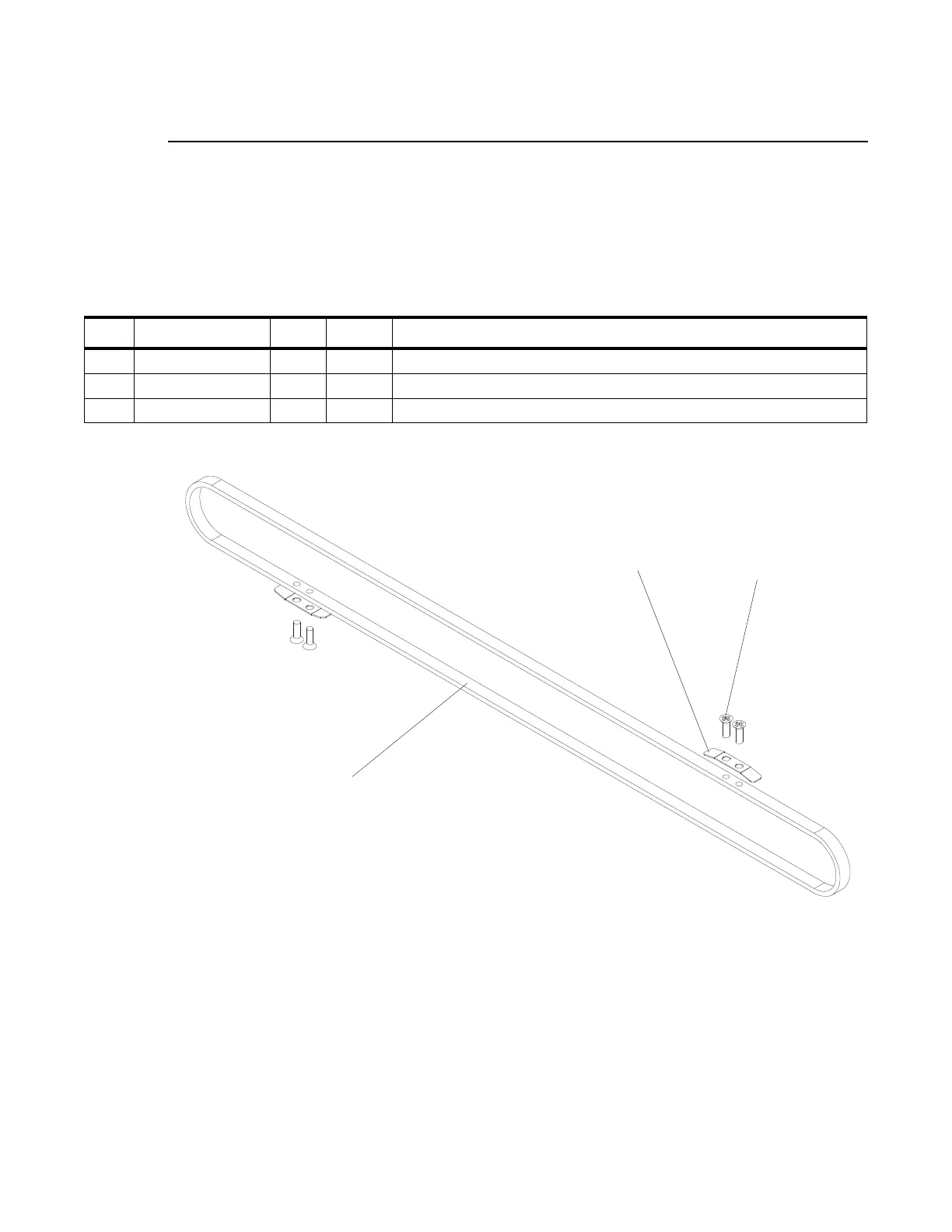

Figure 3-46: 240 Groove Belt Assembly
No. Item Qty. UM. Description
1 10.9704.0442 2 EA CLAMP, COLOR BELT
2 53.6661.0003 4 EA SCREW, 0-80 X 3/16" LG PFSS
3 54.9704.0402 1 EA BELT, TIMING, MXL, 240 GRV, 125 WD, SIL/KEV
2 (x4)
1 (x2)
3
