HEAD ASSEMBLY : GOBO 1 SENSOR INDEX ASSEMBLY
02.9704.6010 0 81
3
Gobo 1 Sensor Index Assembly
21.9704.0230 Rev. B
Refer to Figure 3-36

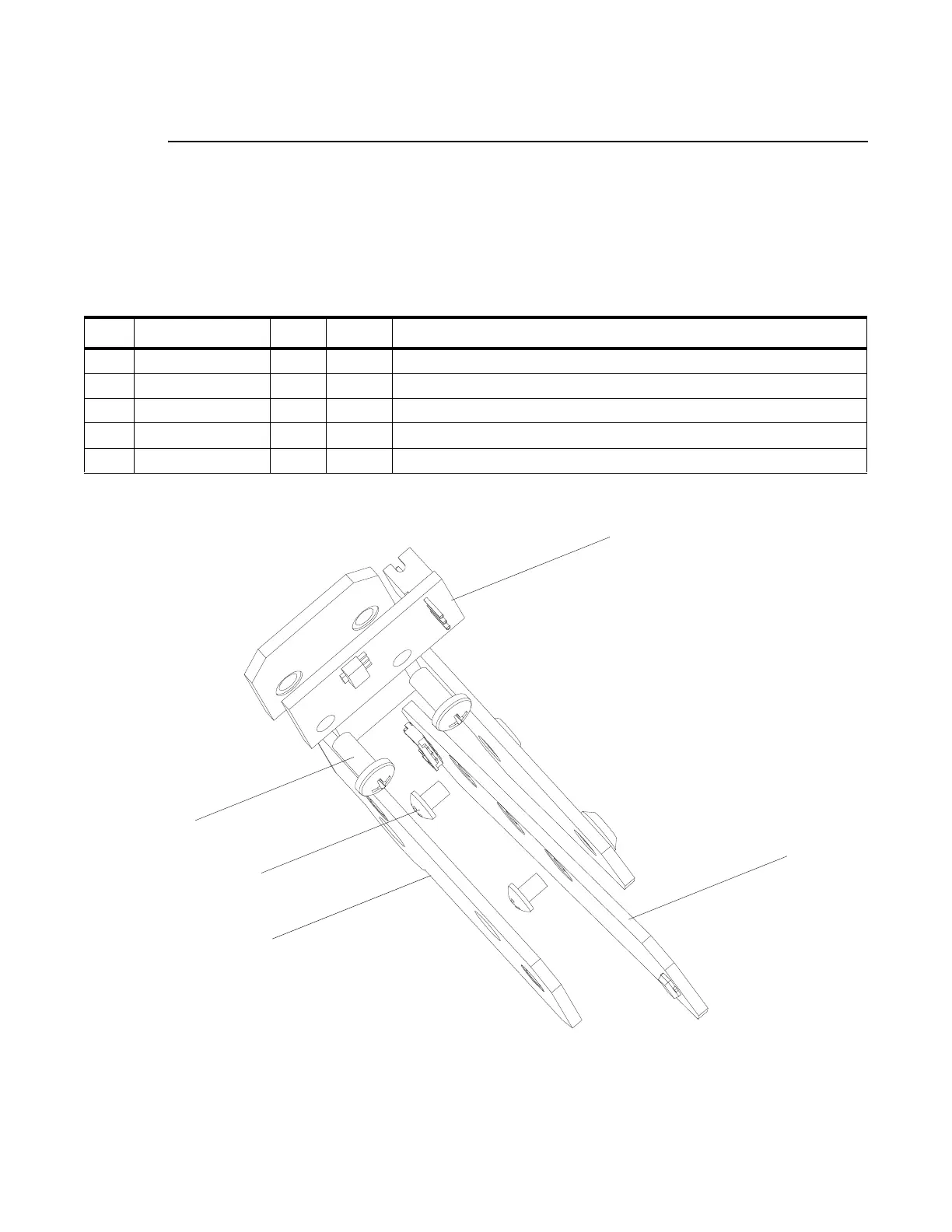

Figure 3-36: Gobo 1 Sensor Index Assembly
No. Item Qty. UM. Description
1 10.9704.0232 1 EA GOBO WHEEL 1 SENSOR BRACKET
2 17.9704.0905 1 EA PCB ASSY, GOBO 1 INDEX SENSOR
3 24.9678.3240 1 EA BRD ASSY, GOBO POSITION
4 53.6659.0012 2 EA SCREW, 2-56 X 1/8" PPZ
5 55.2203.0001 2 EA SCREW, 4-40 X 1/4" PPZ
3
5 (x2)
1
2
4 (x2)
