Vari Lite VL4000 - Color Flags Sensor Board Assembly

HEAD ASSEMBLY : COLOR FLAGS SENSOR BOARD ASSEMBLY
02.9704.6010 0 111
3
Color Flags Sensor Board Assembly
21.9704.0440 Rev. B
Refer to Figure 3-55

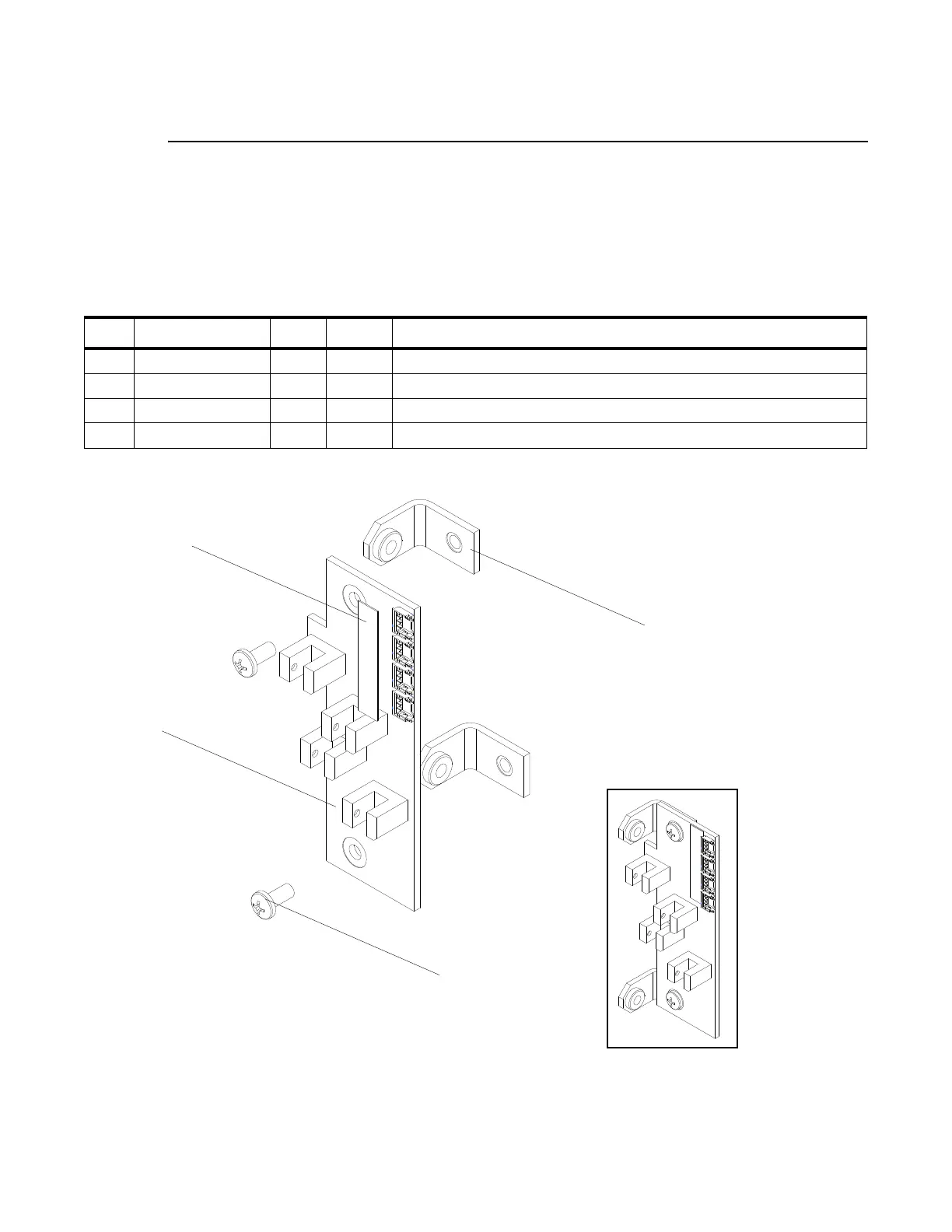

Figure 3-55: Color Flags Sensor Board Assembly
No. Item Qty. UM. Description
1 04.9704.0403 1 EA LABEL, COLOR SENSOR BOARD
2 10.9704.0422 2 EA MOUNT BRACKET, SENSOR BOARD
3 24.9704.0903 1 EA PCB, QUAD COLOR OPTICAL SENSOR
4 55.2203.0001 2 EA SCREW, 4-40 X 1/4" PPZ
1*
*APPLY LABEL OVER SILKSCREEN DENOTING COLORS ON BOARD..
2 (x2)
4 (x2)
3
