Vari Lite VL4000 - Lamp Cover Assembly

HEAD ASSEMBLY : LAMP COVER ASSEMBLY
02.9704.6010 0 69
3
Lamp Cover Assembly
21.9704.0632 Rev. B
Refer to Figure 3-29

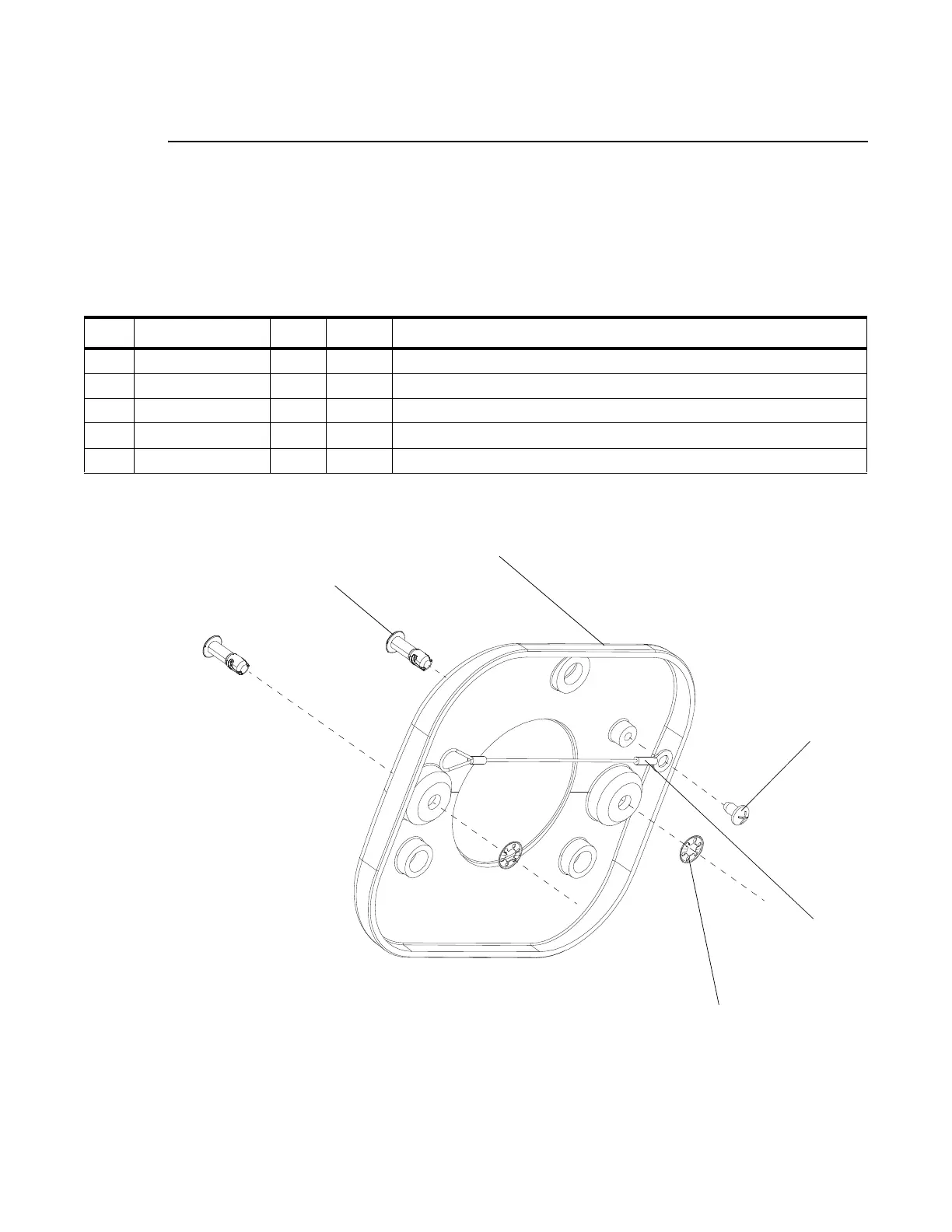

Figure 3-29: Lamp Cover Assembly
No. Item Qty. UM. Description
1 10.9638.0233 1 EA TETHER, REMOVABLE COVER
2 10.9704.1630 1 EA HEAD COVER, LAMP SOCKET
3 53.5655.0250 1 EA SCREW, #6 X 1/4" LG PLASTIC THREADING
4 55.2233.2003 2 EA DZUS RAPIER, 1/4-TURN STUD RETAINER, 5 MM
5 55.2233.2005 2 EA DZUS RAPIER, 1/4-TURN STUD, 5 MM, 12 MM LG
5 (x2)
1
2
3
4 (x2)
