Vari Lite VL4000 - Prism Arm Assembly

VARI❋LITE - VL4000 BEAMWASH LUMINAIRE SERVICE MANUAL
62 02.9704.6010 0
Prism Arm Assembly
21.9704.6335 Rev. B
Refer to Figure 3-23

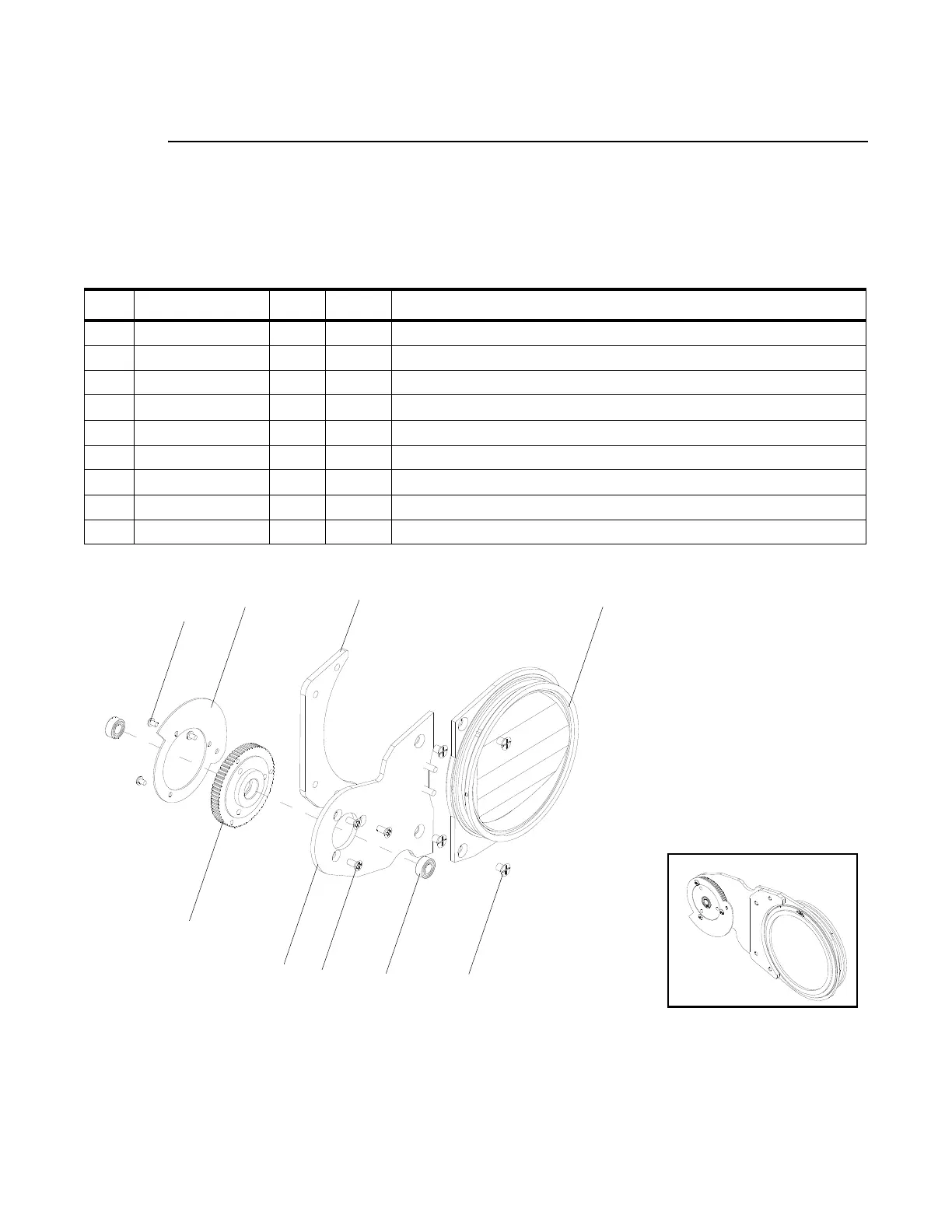

Figure 3-23: Prism Arm Assembly
No. Item Qty. UM. Description
1 10.9704.6313 1 EA INDEX PULLEY, LENTICULAR
2 10.9704.6321 1 EA ARM, PRISM
3 10.9704.6324 1 EA FLAG, ANIMATION ARM
4 10.9704.6327 1 EA COUPLER, PRISM ARM
5 21.9704.6395 1 EA ASSY, 5-FACET LINEAR PRISM, INTERCHANGEABLE
6 53.5564.0188 2 EA SCREW, 6-32 X 1/4" PFB UNDERCUT
7 53.6559.0001 3 EA SCREW, 4-40 X 1/4" PFZ
8 53.6659.0012 3 EA SCREW, 2-56 X 1/8" PPZ
9 54.9687.1253 2 EA BEARING, NPB, MR105ZZK13
3
*APPLY LOCTITE 242 TO THREADS PRIOR TO INSTALLATION.
8 (x3)*
6 (x4)*
9 (x2)
1
5
4
2
7 (x3)*
