VARI❋LITE - VL4000 BEAMWASH LUMINAIRE SERVICE MANUAL
68 02.9704.6010 0
Reflector Assembly
21.9704.6619 Rev. A
Refer to Figure 3-28

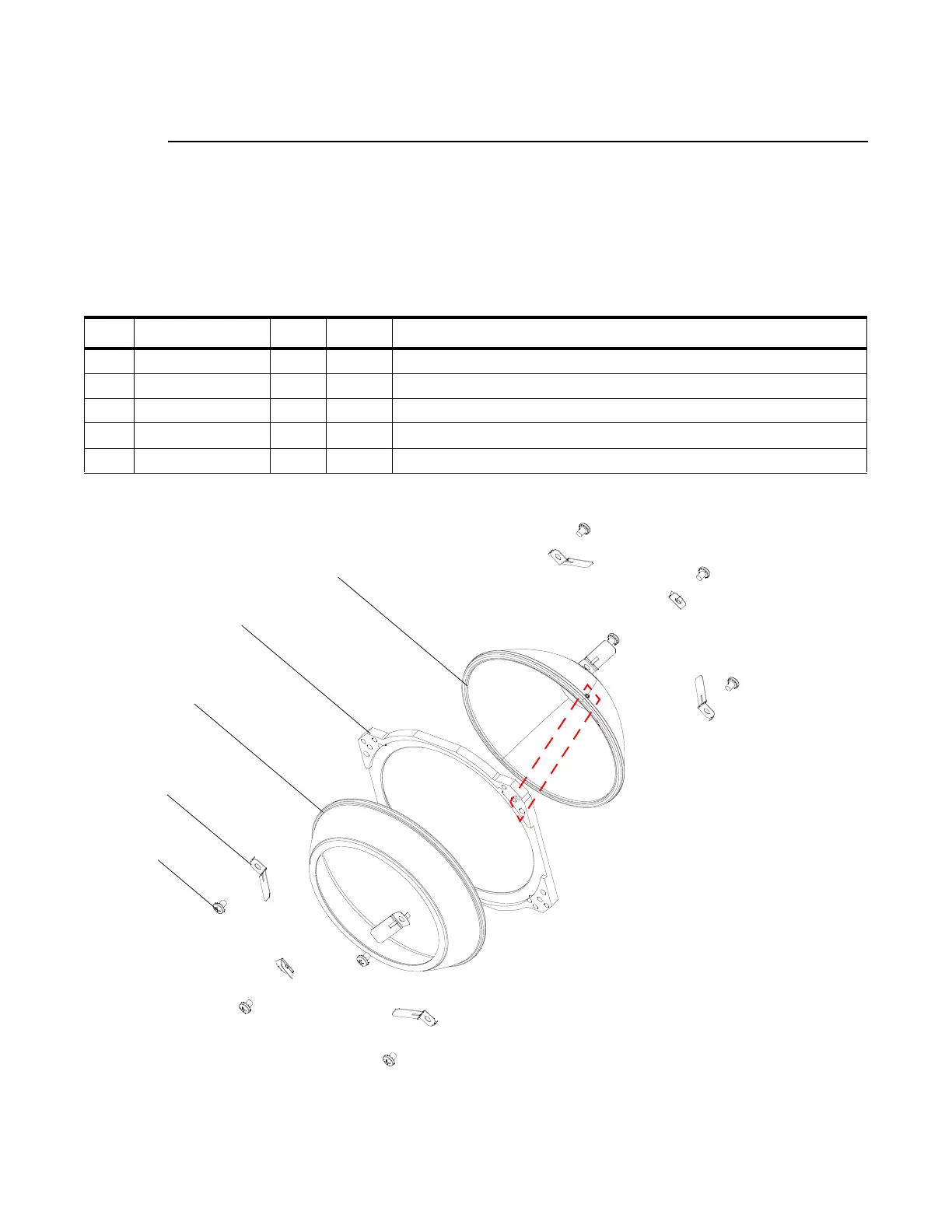

Figure 3-28: Reflector Assembly
No. Item Qty. UM. Description
1 10.9704.0618 8 EA CLIP, REFLECTOR MOUNT
2 10.9704.6617 1 EA REFLECTOR MOUNT PLATE
3 42.9704.0151 1 EA REFLECTOR, RETRO
4 42.9704.6150 1 EA REFLECTOR, PRIMARY, SMOOTH
5 53.6525.0188 8 EA SCREW, 6-32 X 3/16" LG PPZ
4
5 (x8)
2
3
1 (x8)
Note:
ALIGN BUMP ON REFLECTOR WITH NOTCHED
CORNER OF MOUNT PLATE.
BUMP FITS INSIDE SLOT IN MOUNTING CLIP.
See Note
