Vari Lite VL4000 - 210 Groove Belt Assembly

VARI❋LITE - VL4000 BEAMWASH LUMINAIRE SERVICE MANUAL
96 02.9704.6010 0
210 Groove Belt Assembly
21.9704.0411 Rev. B
Refer to Figure 3-45

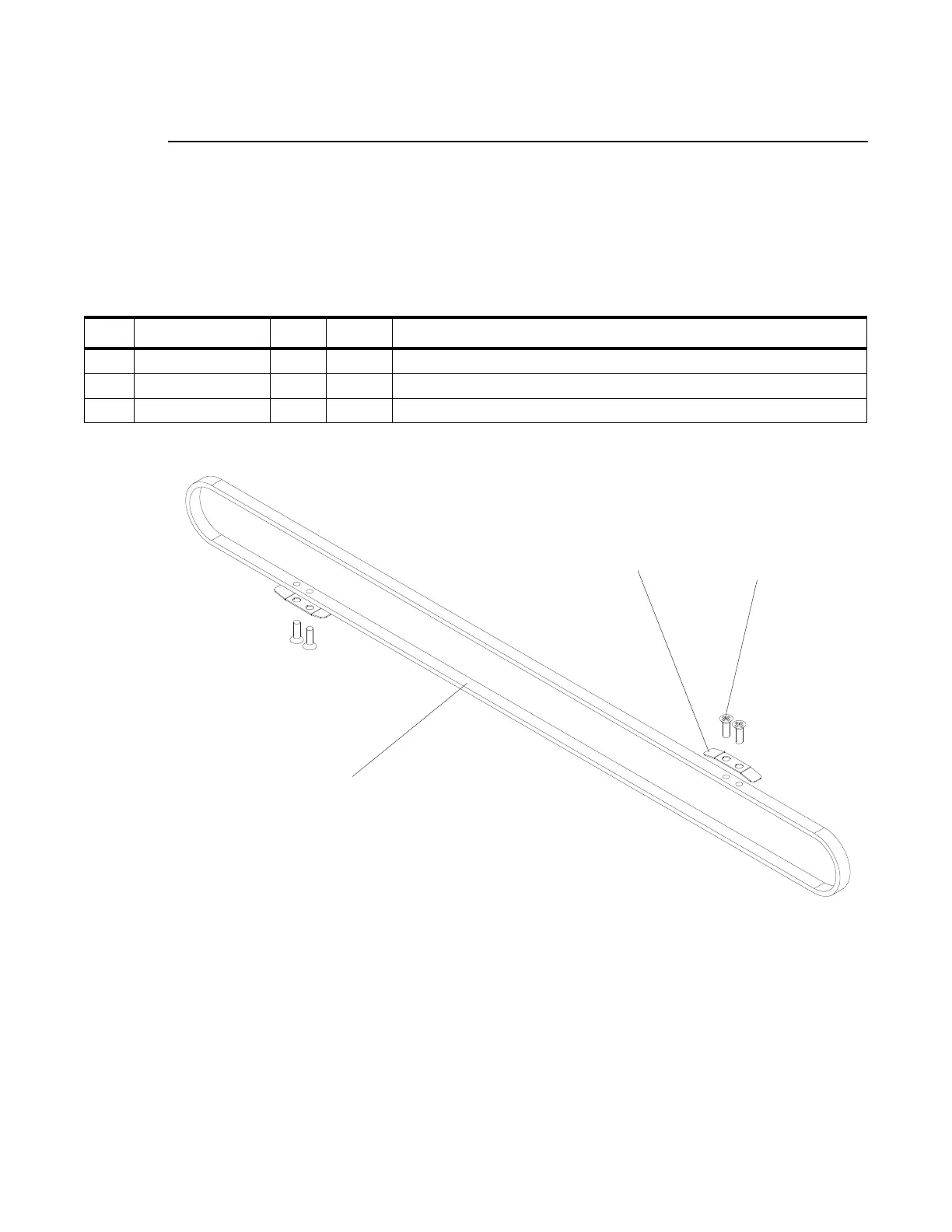

Figure 3-45: 210 Groove Belt Assembly
No. Item Qty. UM. Description
1 10.9704.0442 2 EA CLAMP, COLOR BELT
2 53.6661.0003 4 EA SCREW, 0-80 X 3/16" LG PFSS
3 54.9704.0401 1 EA BELT, TIMING, MXL, 210 GRV, 125 WD, SIL/KEV
2 (x4)
1 (x2)
3
