VARI❋LITE - VL4000 BEAMWASH LUMINAIRE SERVICE MANUAL
134 02.9704.6010 0
Pan / Fan Driver Board Assembly
21.9704.0870 Rev. G
Refer to Figure 3-64

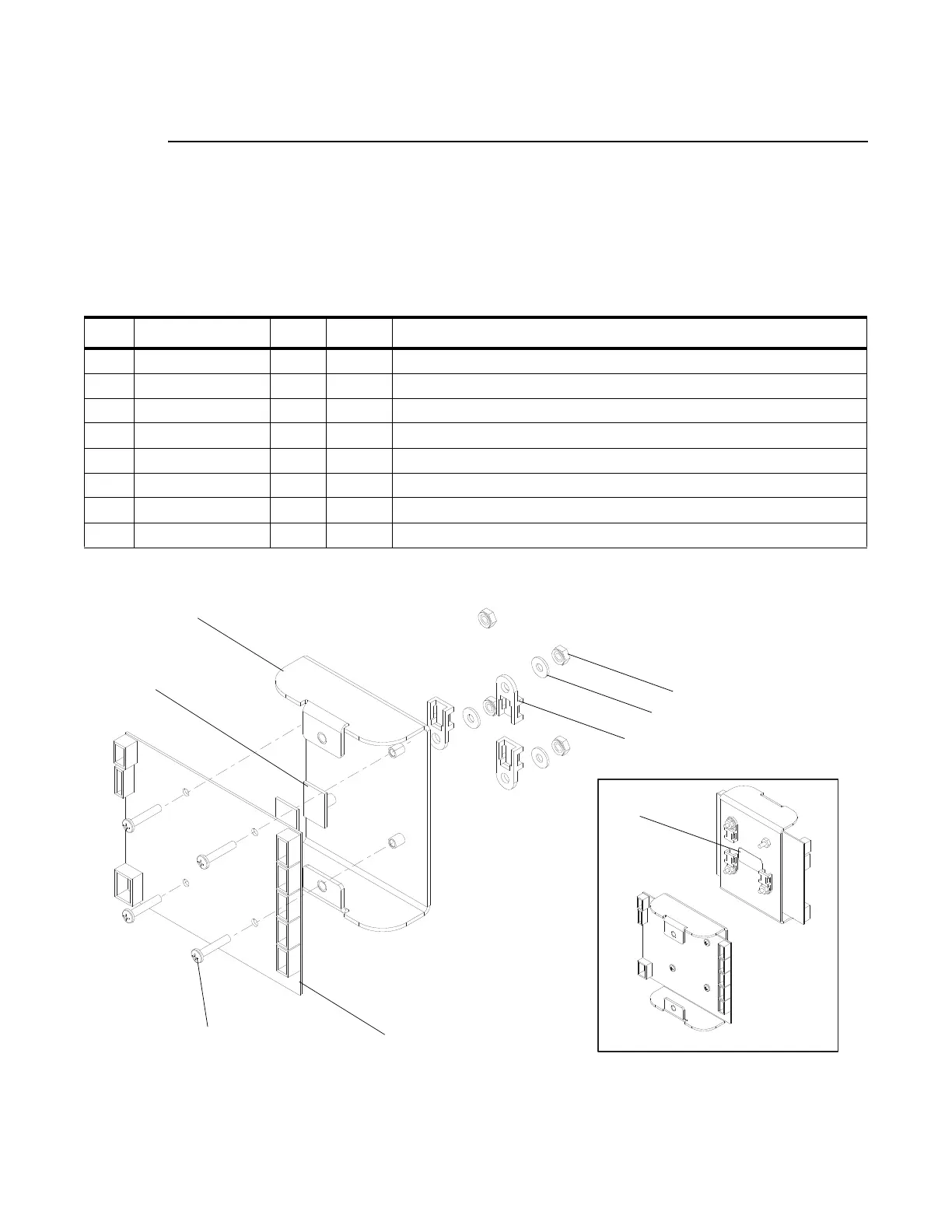

Figure 3-68: Pan / Fan Driver Board Assembly
No. Item Qty. UM. Description
1 04.9704.0801 1 EA DIPSWITCH LABEL, PAN BOARD
2 10.9704.2837 1 EA SENSOR BOARD MOUNT PLATE
3 24.9704.1907 1 EA PAN DRIVER BOARD
4 52-0406 2 EA THERM PAD, VO GAP PAD ULT-SOFT, 0.45" X 0.625"
5 53.2003.0001 4 EA NUT, 4-40 KEP ZINC PLATED
6 53.6519.0001 4 EA SCREW, 4-40 X 5/8" PPZ
7 55.2178.0001 3 EA CABLE ANCHOR MOUNT, #8 SCREW
8 55.6621.0001 3 EA WASHER, #4 FLAT ZINC
1*
5 (x4)
2
8 (x3)
7 (x3)
3
4 (x2)
6 (x4)
*Apply label in location shown.
