Vari Lite VL4000 - Tilt Belt Tension Rollers Assembly

VARI❋LITE - VL4000 BEAMWASH LUMINAIRE SERVICE MANUAL
118 02.9704.6010 0
Tilt Belt Tension Rollers Assembly
21.9704.1760 Rev. A
Refer to Figure 3-59

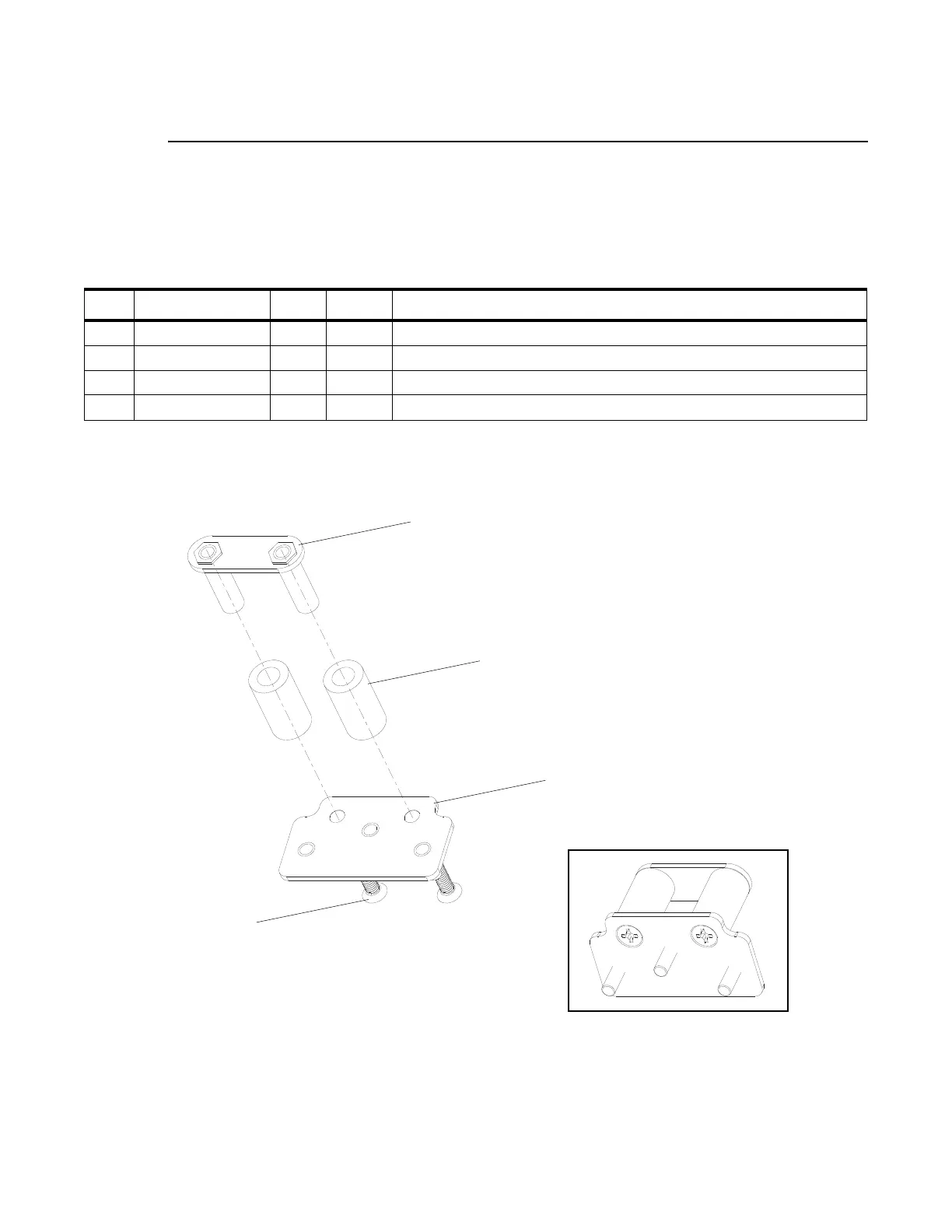

Figure 3-59: Tilt Belt Tension Rollers Assembly
No. Item Qty. UM. Description
1 53.6545.0010 2 EA 8-32 X 1" UNDERCUT FLAT HEAD PHILLIPS
2 10.9704.2702 1 EA PLATE, BELT TENSION, TILT
3 10.9704.0766 2 EA ROLLER, TENSION ADJUST, TILT
4 10.9704.2701 1 EA TILT BELT TENSION ROLLER
4
3 (x2)
2
1 (x2)
