Vari Lite VL4000 - VL4000 Beamwash Head Cover Assembly

VARI❋LITE - VL4000 BEAMWASH LUMINAIRE SERVICE MANUAL
42 02.9704.6010 0
VL4000 BeamWash Head Cover Assembly
22.9704.6670 Rev. A
Refer to Figure 3-10

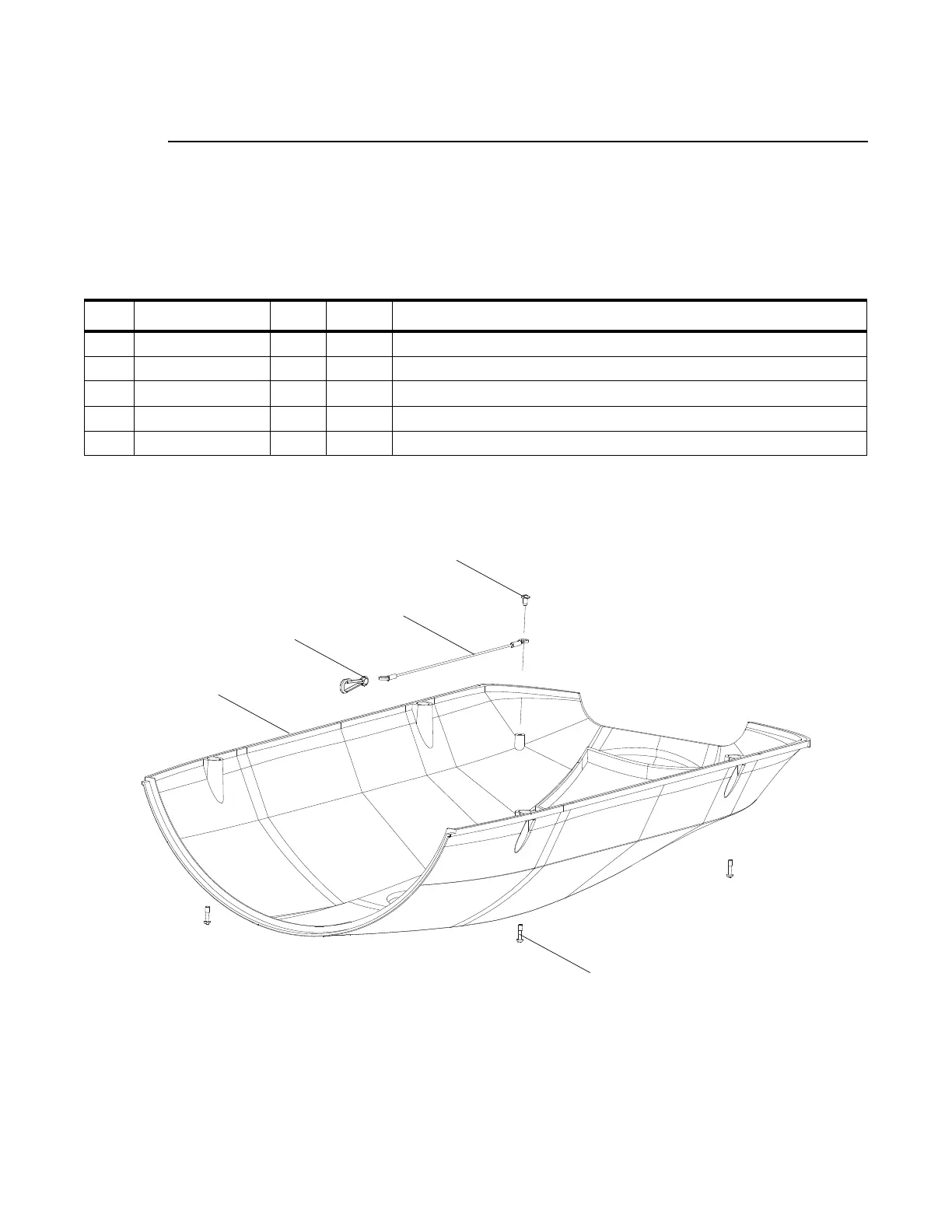

Figure 3-10: VL4000 BeamWash Head Cover Assembly
No. Item Qty. UM. Description
1 07.5049.0001 1 EA LANYARD, NYLON COATED, 8" LG
2 10.9704.6670 1 EA COVER, HEAD, TOP/BOTTOM
3 53.5655.0250 1 EA SCREW, #6 X 1/4" PPZ PLASTIC THD
4 53.6685.0500 4 EA SCREW, #6-32 X 1/2" PPB CAPTIVE
5 55.2011.0003 1 EA SNAP, SPRING 3/16" EYE DIA S
4 (x4)
3
2
1
5
