Vari Lite VL4000 - Zoom Lens Motor Assembly

HEAD ASSEMBLY : ZOOM LENS MOTOR ASSEMBLY
02.9704.6010 0 55
3
Zoom Lens Motor Assembly
21.9704.6195 Rev. D
Refer to Figure 3-19

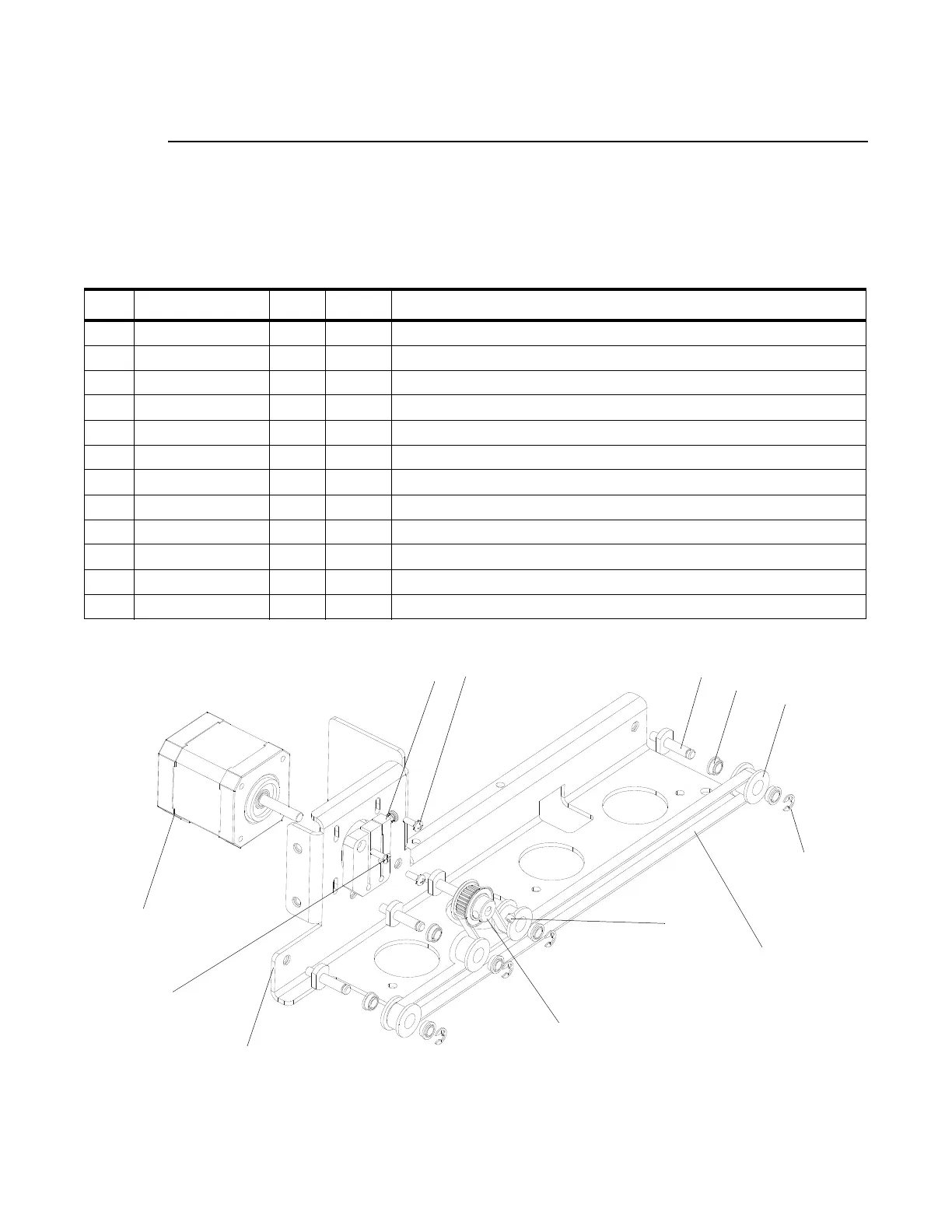

Figure 3-19: Zoom Lens Motor Assembly
No. Item Qty. UM. Description
1 10.9678.1131 1 EA FORWARD PULLEY SHAFT, BEARING
2 10.9704.1212 1 EA MOTOR PULLEY W/ FLANGES
3 10.9704.6195 1 EA MOUNT PLATE, BELT DRIVE
4 21.9704.0330 1 EA ASSY, DAMPER, MOTOR SHAFT, 5 MM
5 44.9704.1216 1 EA MOTOR, SIZE 17, 24 MM SHAFT, HIGH TORQUE
6 53.5560.0187 2 EA SCREW, SET 8-32 X 3/16" L
7 53.6596.0002 2 EA SCREW, 4-40 X 5/16" LG PPZ SEMS
8 53.6599.0001 1 EA SCREW, 4-40 X 3/8" PFZ
9 54.1262.0001 8 EA BEARING, FLANGED, 0.1875" BORE
10 54.2053.0001 4 EA MXT T BELT PULLEY, 20 GRV, 0.25" WD
11 54.9704.6172 1 EA TIMING BELT, MXL, 315 TEETH, 0.250" WIDE, URETH/KEV
12 55.2234.0001 4 EA E-RING, 0.188" SHAFT DIA, CAR SP
5
3
4
8*
*APPLY LOCTITE 242 TO THREADS
PRIOR TO INSTALLATION.
6 (x2)*
2
11
7 (x2)*
1 (x4)*
9 (x8)
10 (x4)
12 (x4)
