Vari Lite VL4000 - Side Mount Filter Holder Assembly

ENCLOSURE ASSEMBLY : SIDE MOUNT FILTER HOLDER ASSEMBLY
02.9704.6010 0 131
3
Side Mount Filter Holder Assembly
21.9704.2815 Rev. C

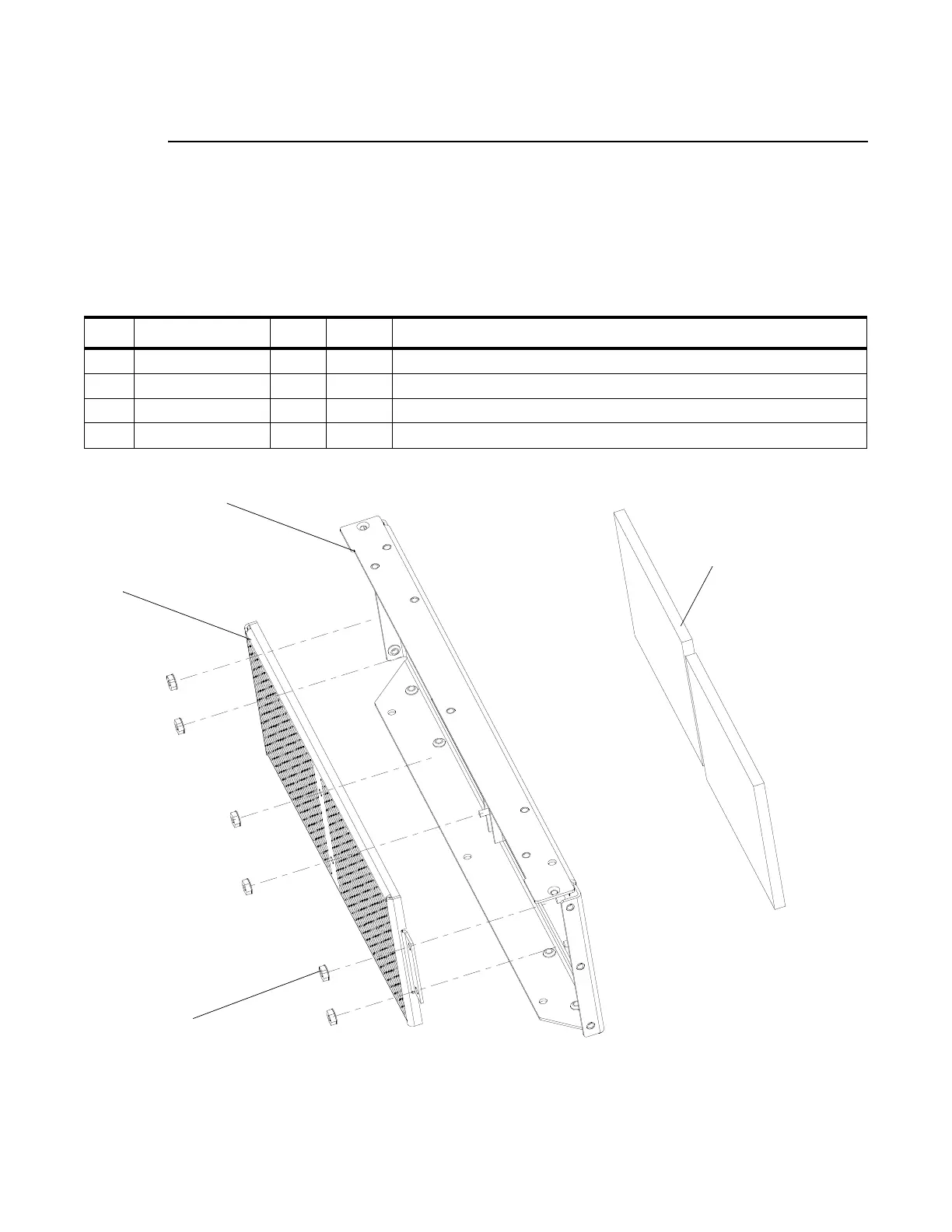

Refer to Figure 3-66
Figure 3-66: Side Mount Filter Holder Assembly
No. Item Qty. UM. Description
1 10.9704.1842 2 EA AIR FILTER
2 10.9704.2819 1 EA SIDE FILTER GRILL
3 10.9704.3818 1 EA UPPER ENCLOSURE FILTER SIDE
4 53.2200.0006 6 EA NUT, 6-32 KEP SS
1 (x2)
3
2
4 (x6)
