VARI❋LITE - VL4000 BEAMWASH LUMINAIRE SERVICE MANUAL
54 02.9704.6010 0
5mm Motor Shaft Damper Assembly
21.9704.0330 Rev. B
Refer to Figure 3-18

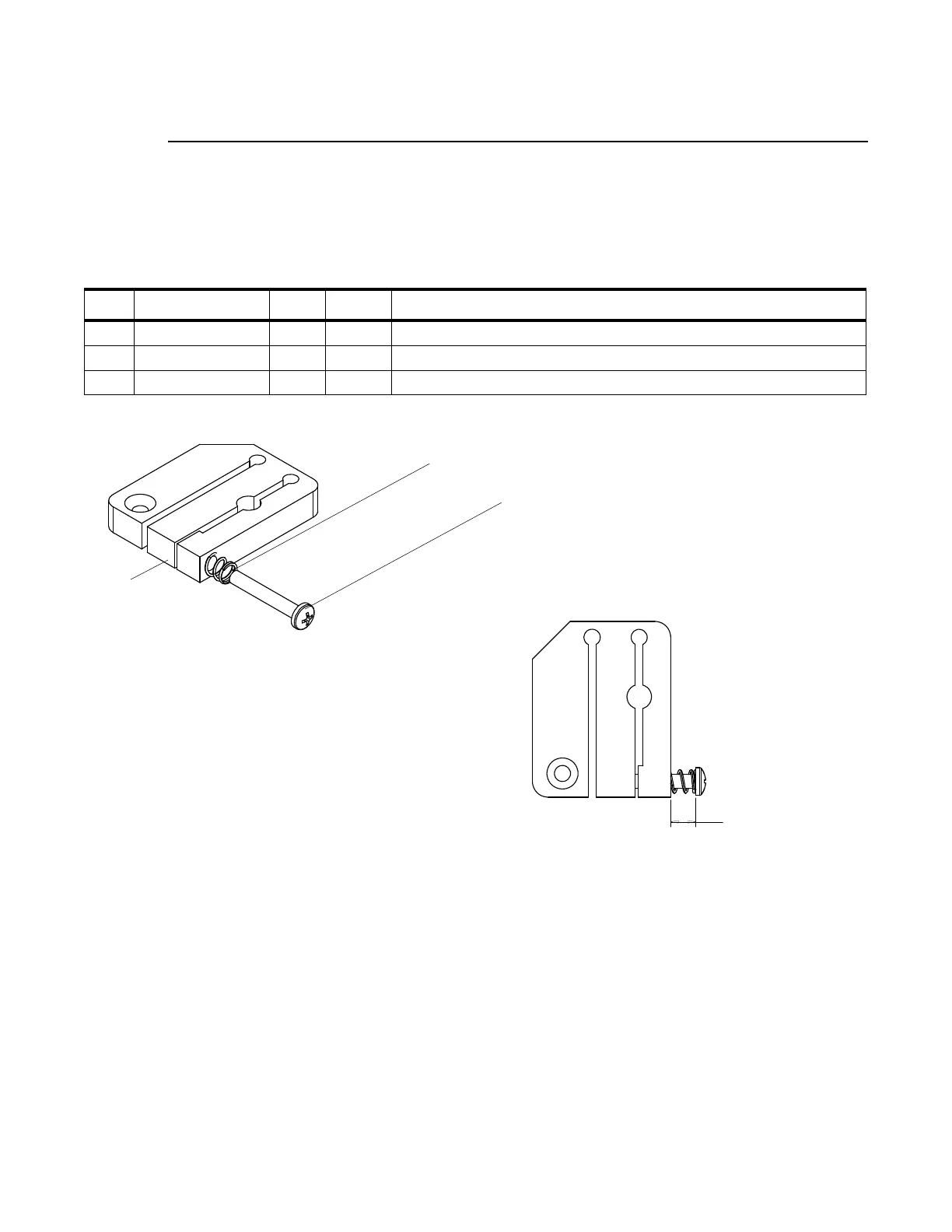

Figure 3-18: 5mm Motor Shaft Damper Assembly
No. Item Qty. UM. Description
1 55.6568.0113 1 EA COMPRESSION SPRING
2 10.9698.0335 1 EA DAMPER, MOTOR SHAFT, 5MM
3 53.6556.0001 1 EA SCREW, 4-40 X 3/4" PPZ
.200 REF INITIAL SETTING
3
2
1
