Vari Lite VL4000 - Animation Wheel 2 Motor Assembly

HEAD ASSEMBLY : ANIMATION WHEEL 2 MOTOR ASSEMBLY
02.9704.6010 0 85
3
Animation Wheel 2 Motor Assembly
21.9704.0332 Rev. D
Refer to Figure 3-39

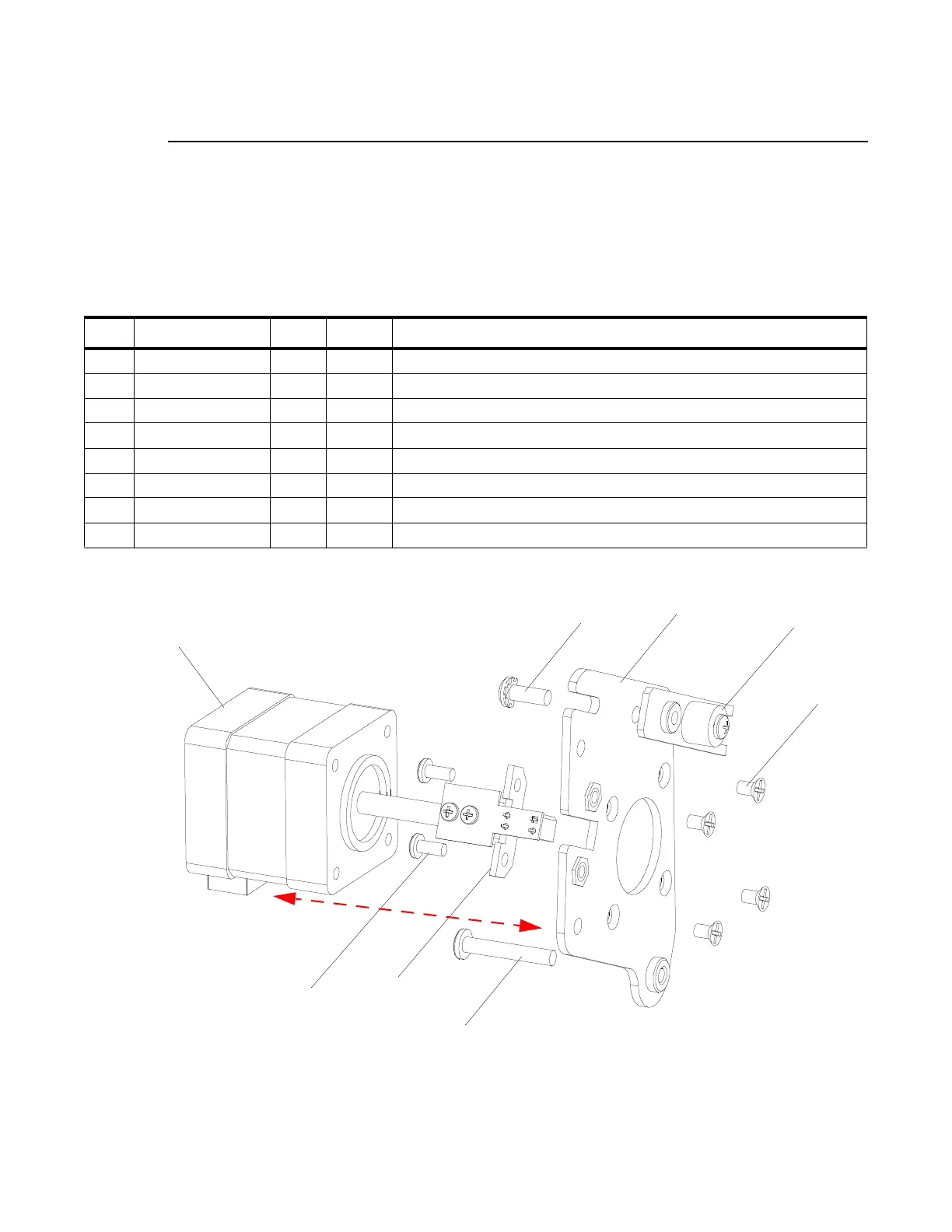

Figure 3-39: Animation Wheel 2 Motor Assembly
No. Item Qty. UM. Description
1 10.9704.1308 1 EA MOTOR MOUNT, ANIMATION WHEEL 2
2 21.9687.2500 1 EA ASSY, SENSOR, COLOR BULKHEAD
3 21.9704.0239 1 EA ASSY, TENSION ADJUST, ANIMATION WHEEL
4 44.9704.1213 1 EA MOTOR, SIZE 14, SHAFT 24 MM LG
5 53.6513.0002 4 EA SCREW, M3 X 5 MM PFZ
6 53.6558.0009 1 EA SCREW, 6-32 X 3/8" LG PPZ SEMS
7 53.6613.0001 1 EA SCREW, 6-32 X 7/8" PPZ
8 55.2203.0001 2 EA SCREW, 4-40 X 1/4" PPZ
5 (x4)*
4
*APPLY LOCTITE 242 TO THREADS PRIOR TO INSTALLATION.
7*
1
3
6
2
8 (x2)
NOTE POSITION OF CONNECTOR
RELATIVE TO MOUNT
