VARI❋LITE - VL4000 BEAMWASH LUMINAIRE SERVICE MANUAL
84 02.9704.6010 0
Concurrent Animation Wheel Assembly (continued)

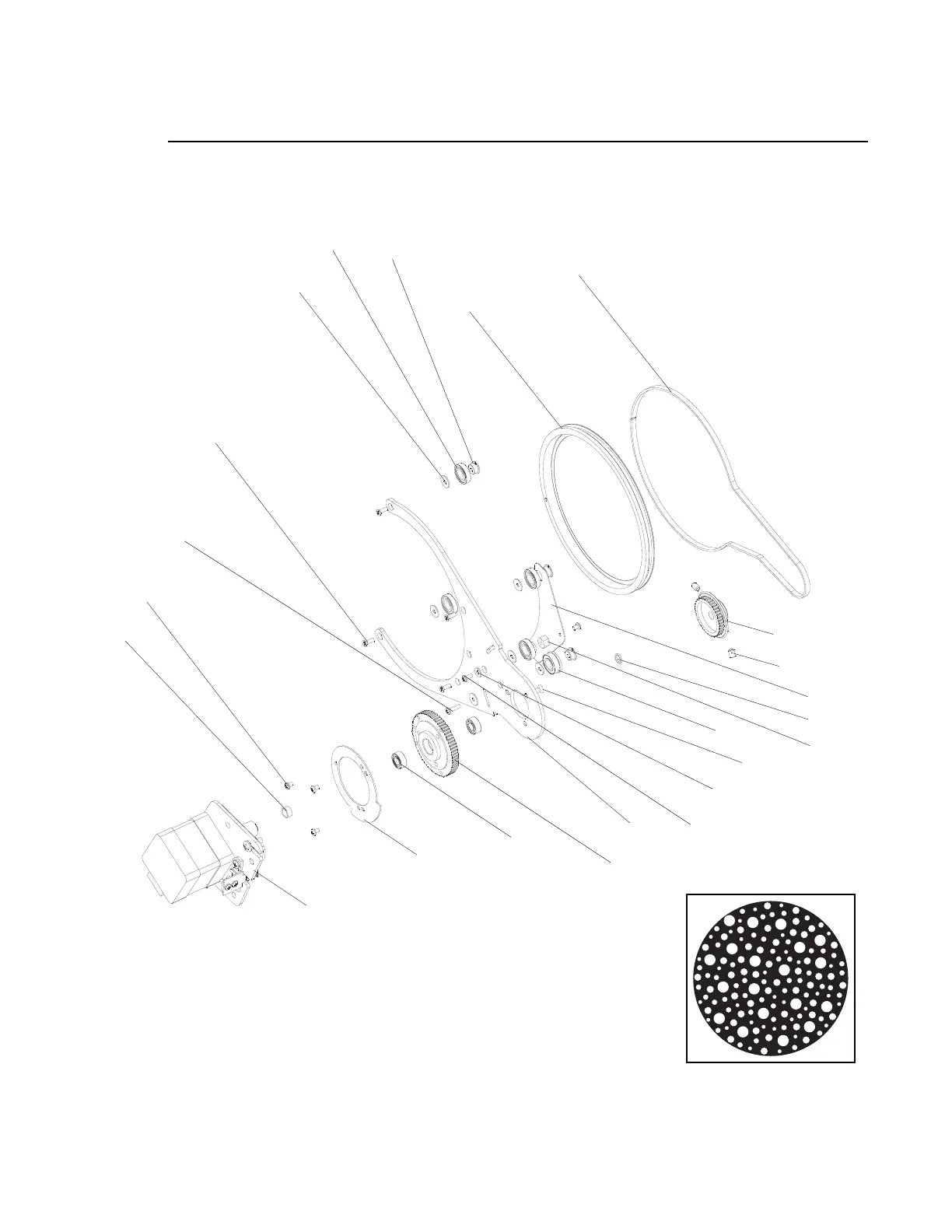

Figure 3-38: Concurrent Animation Wheel Assembly
21 (x4)
*APPLY ONE DROP OF LOCTITE TO SCREW THREADS DURING INSTALLATION.
**NOTE FLAG ORIENTATION.
***PRESS FIRMLY DOWN ON OUTSIDE PULLEY TO REMOVE ALL FREE SPACE IN PARTS STACK
BEFORE TIGHTENING SET SCREWS IN OUTSIDE PULLEY. VERIFY THAT THERE IS NO AXIAL
PLAY IN PARTS STACK AFTER SET SCREWS ARE TIGHTENED.
11
20
4 (x5)
3 (x6)
17 (x4)*
16 (x4)*
8
10
2**
19 (x2)
14*
15*
22
6
12 (x3)*
18
23
1
5
13 (x2)*/***
7 ***
9
