Vari Lite VL4000 - Control Belt Idler Assembly

VARI❋LITE - VL4000 BEAMWASH LUMINAIRE SERVICE MANUAL
110 02.9704.6010 0
Control Belt Idler Assembly
21.9704.5443 Rev. B
Refer to Figure 3-54

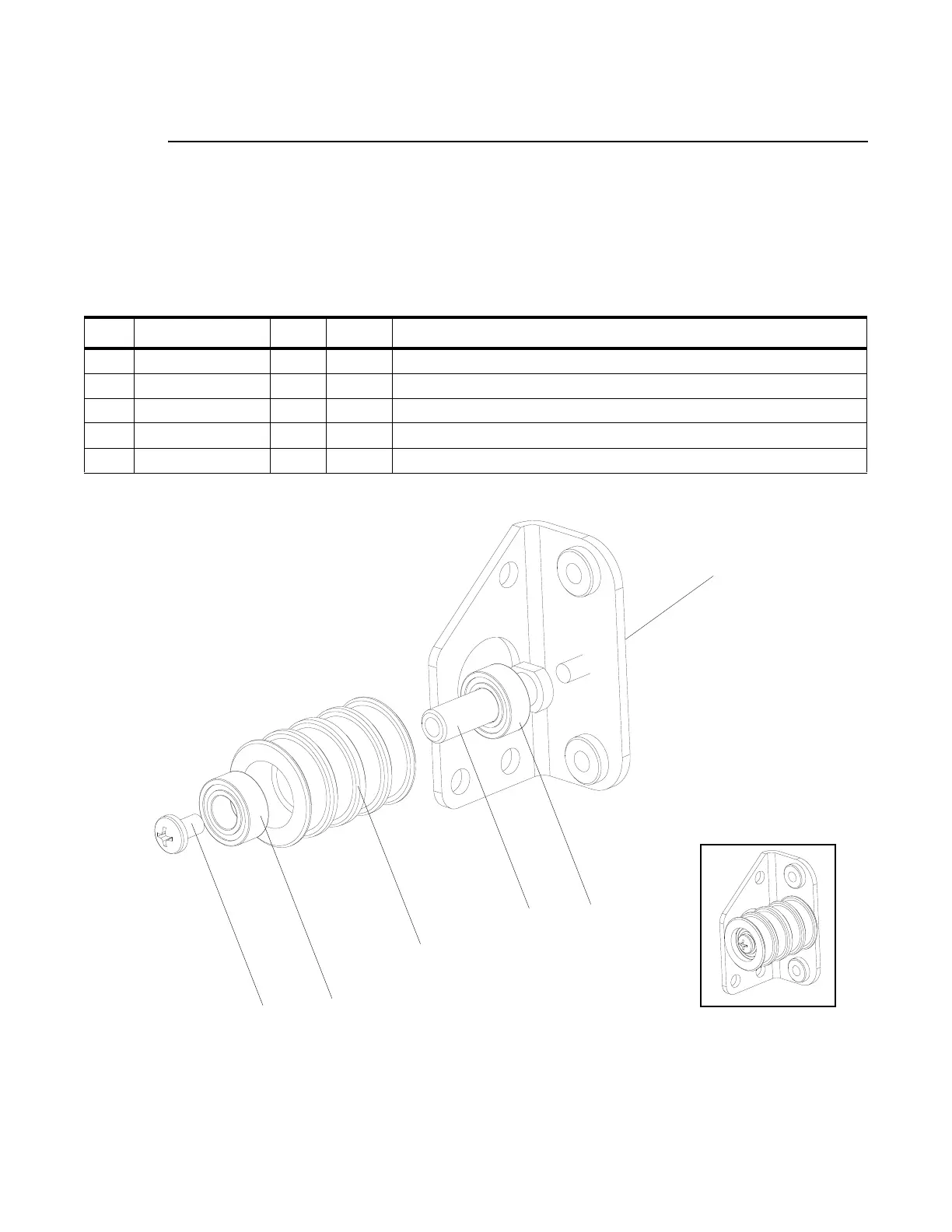

Figure 3-54: Control Belt Idler Assembly
No. Item Qty. UM. Description
1 10.9704.5409 1 EA IDLER PULLEY, COLOR FLAG
2 10.9704.5423 1 EA IDLER SHAFT, PULLEY, COLOR BULKHEAD
3 10.9704.5428 1 EA IDLER BRACKET, COLOR BULKHEAD
4 53.6597.0001 1 EA SCREW, 4-40 X 3/16" PPZ
5 54.9687.0253 2 EA BEARING, MR105ZZ
2
1
3
5
5
4*
*APPLY LOCTITE 242 TO THREADS PRIOR TO INSTALLATION.
