HEAD ASSEMBLY : WASH ASSEMBLY
02.9704.6010 0 63
3
Wash Assembly
21.9704.6355 Rev. F
Refer to Figure 3-24

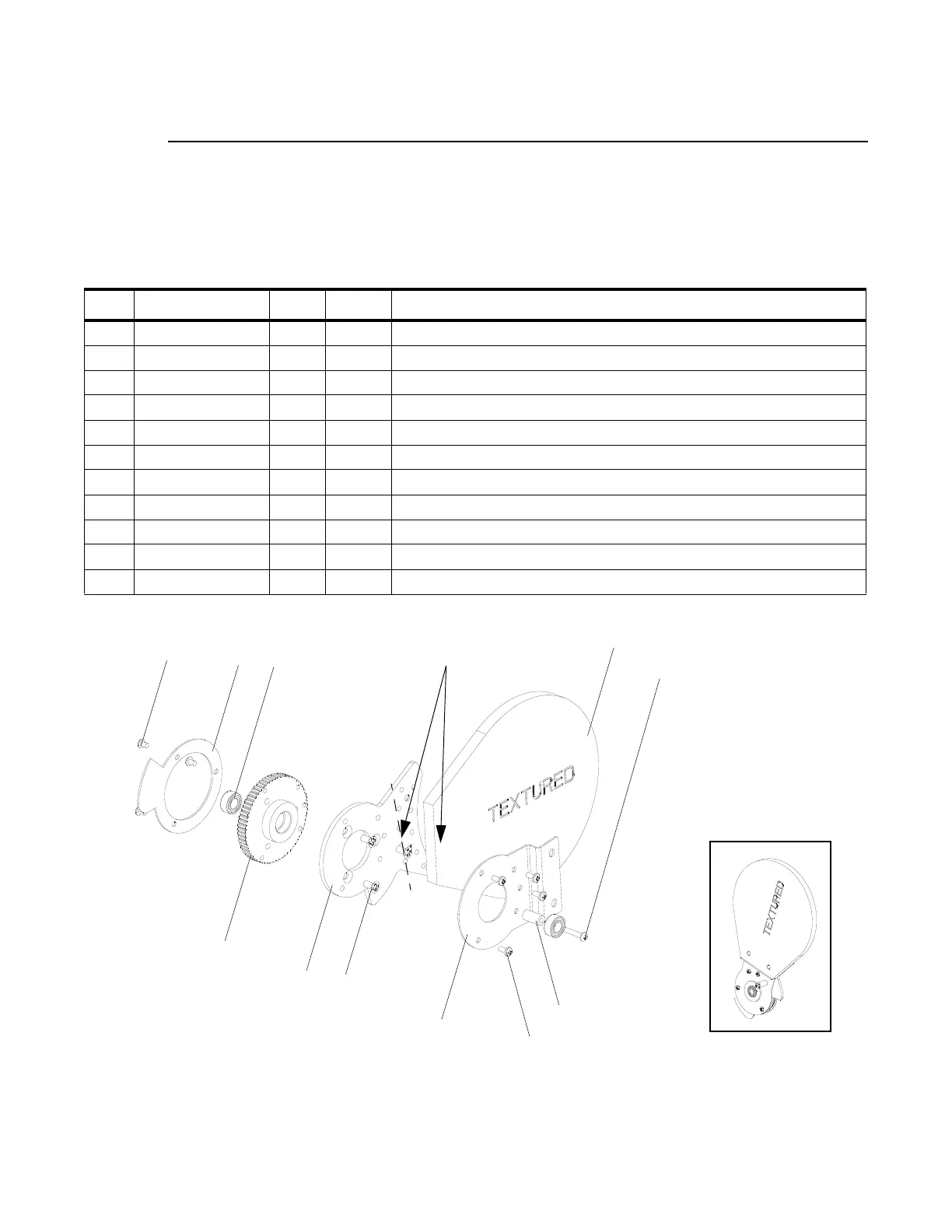

Figure 3-24: Wash Assembly
No. Item Qty. UM. Description
1 10.9704.6317 1 EA INDEX PULLEY, ARM
2 10.9704.6319 1 EA CLAMP, WASH GLASS
3 10.9704.6320 1 EA PULLEY FLANGE, WASH
4 10.9704.6351 1 EA ARM, WASH
5 42.9704.6155 1 EA GLASS, WASH
6 53.6559.0001 3 EA SCREW, 4-40 X 1/4" PFZ
7 53.6659.0006 4 EA SCREW, 2-56 X 3/16" PPZ
8 53.6659.0012 3 EA SCREW, 2-56 X 1/8" PPZ
9 53.6659.0075 1 EA SCREW, 2-56 X 3/4" PPZ
10 54.9687.1253 2 EA BEARING, NPB, MR105ZZK13
11 55.6506.0002 1 EA SPACER, RD, #2 ID, 3/16" OD, 3/8" LG, ALUM
*APPLY LOCTITE 242 TO THREADS PRIOR TO INSTALLATION.
8 (x3)*
5
9*
3
11
7 (x4)*
2
6 (x3)*
4
1
10 (x2)
**APPLY DOW CORNING RTV
3145 TO ARM. PRESS GLASS
DOWN TO SECURE. APPLY RTV
3145 UNDER CLAMP PRIOR TO
SECURING WITH HARDWARE.
VERIFY THAT GLASS IS
POSITIONED CORRECTLY
ALIGNED WITH EDGES OF ARM.
ALLOW TO CURE OVERNIGHT
PRIOR TO FURTHER ASSEMBLY.
See Note **
To Next Page
