VARI❋LITE - VL4000 BEAMWASH LUMINAIRE SERVICE MANUAL
64 02.9704.6010 0
Wash Arm Motor Assembly
21.9704.6360 Rev. B
Refer to Figure 3-25

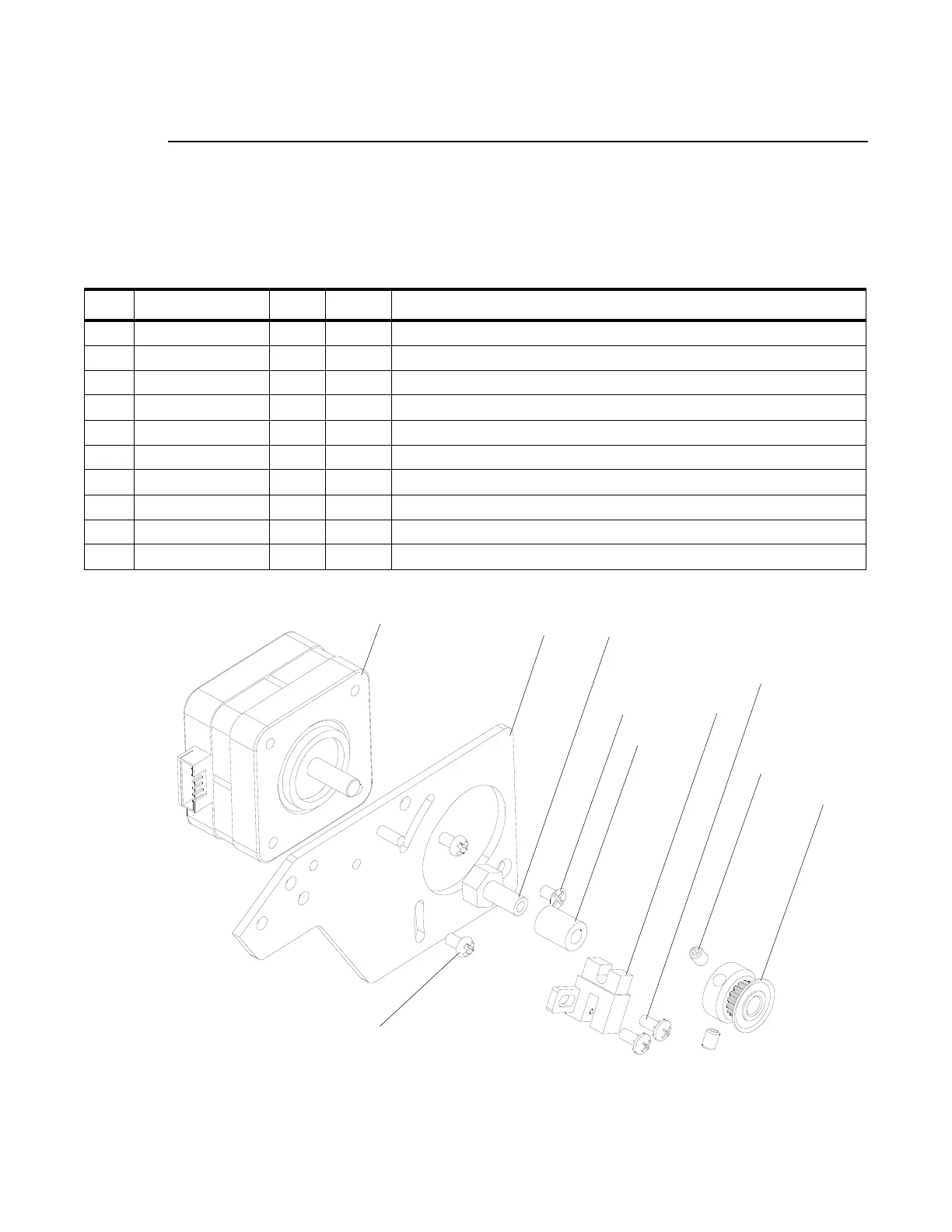

Figure 3-25: Wash Arm Motor Assembly
No. Item Qty. UM. Description
1 10.9704.1233 1 EA PULLEY, 16 GRV, 0.125" WD, ANIMATION ARM DRIVE
2 10.9704.6325 1 EA ARM STOP MOUNT
3 10.9704.6352 1 EA FROST PIVOT MOTOR MOUNT
4 25.9687.0020 1 EA SWITCH, SLOTTED OPTICAL
5 44.9704.0418 1 EA MOTOR, SIZE-17, 14MM SHAFT
6 53.6513.0008 1 EA SCREW, M3 X 0.5 X 5MM LG PFB METRIC
7 53.6513.0019 2 EA SCREW, M3 X 0.5MM PPB
8 53.6578.0002 2 EA SCREW, 6-32 X 3/16", SET, CUP PNT
9 53.6682.0002 2 EA SCREW, 4-40 X 1/4" PPZ SEMS
10 55.6738.0005 0.425 IN. TUBING, SILICONE, 4MM ID, 8MM, OD, SOFT RED, (0.425")
3
*APPLY LOCTITE 242 TO THREADS PRIOR TO INSTALLATION.
7 (x2)*
5
2
6*
10
8 (x2)*
1
4
9 (x2)*
