Vari Lite VL4000 - Back Cover Assembly

TOP ASSEMBLY : BACK COVER ASSEMBLY
02.9704.6010 0 45
3
Back Cover Assembly
21.9704.6671 Rev. A
Refer to Figure 3-13

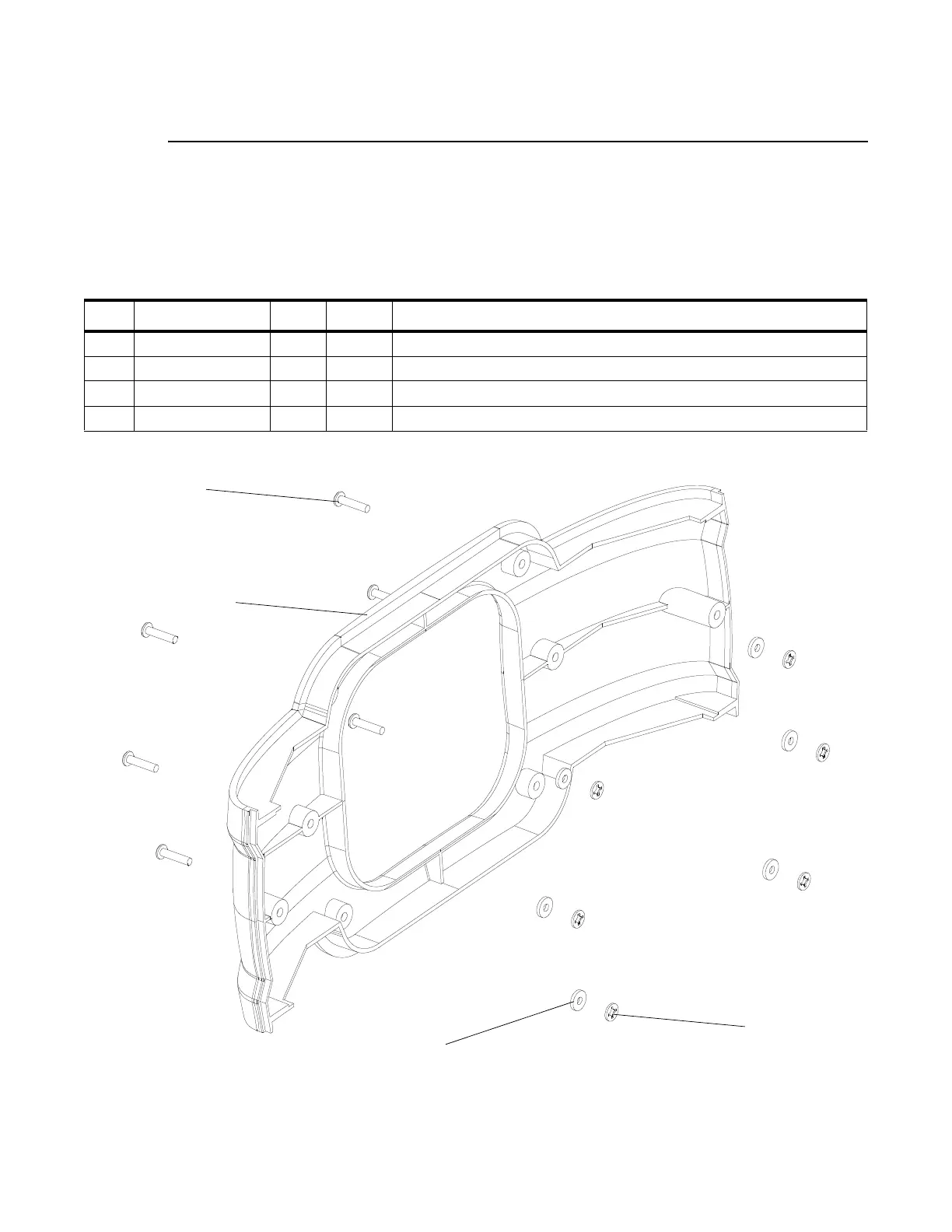

Figure 3-13: Back Cover Assembly
No. Item Qty. UM. Description
1 10.9704.0671 1 EA COVER, HEAD, REAR
2 53.6614.0001 6 EA SCREW, 6-32 X 5/8", PPB
3 55.6538.0002 6 EA WASHER, #6 NYLON, NATURAL
4 55.6879.0006 6 EA WASHER, #6, SELF RETAINING, 0.032 THK, NYLON
4 (x6)
3 (x6)
2 (x6)
1
