HEAD ASSEMBLY : RIGHT STROBE ASSEMBLY
02.9704.6010 0 109
3
Right Strobe Assembly (continued)

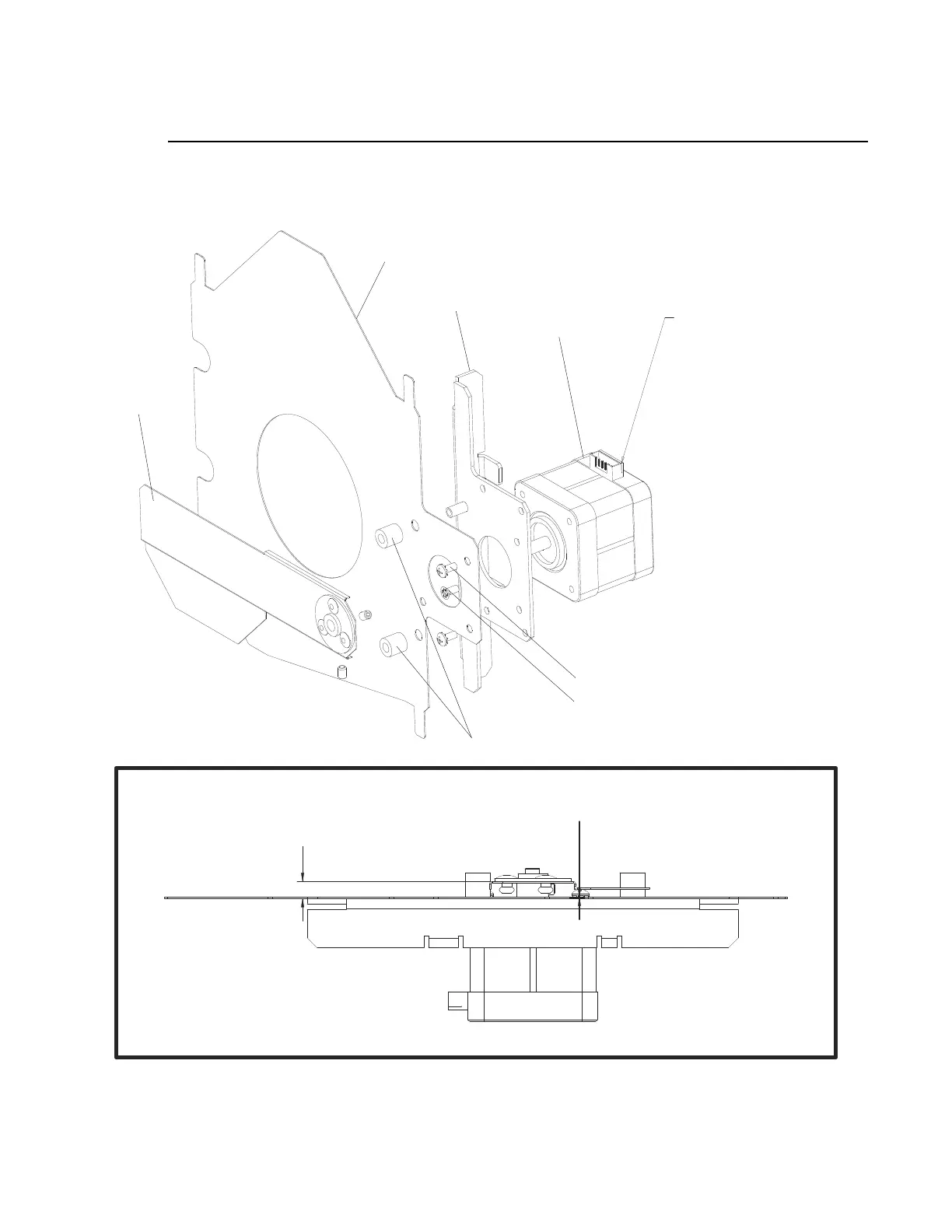

Figure 3-53: Right Strobe Assembly
NOTE MOTOR CONNECTOR CLOCKING
0.004” BETWEEN HUB AND MOTOR
0.220”
2
6
4*
7 (x2)
1
3
*APPLY LOCTITE 242 TO THREADS
PRIOR TO INSTALLATION.
INSTALL ITEM 6 WITH HIGHLY
REFLECTIVE SIDE TOWARD MOTOR.
BEND TABS (A) OVER ENDS OF
MOTOR MOUNT TO SECURE ENDS,
TWO PLACES.
5
A
A
