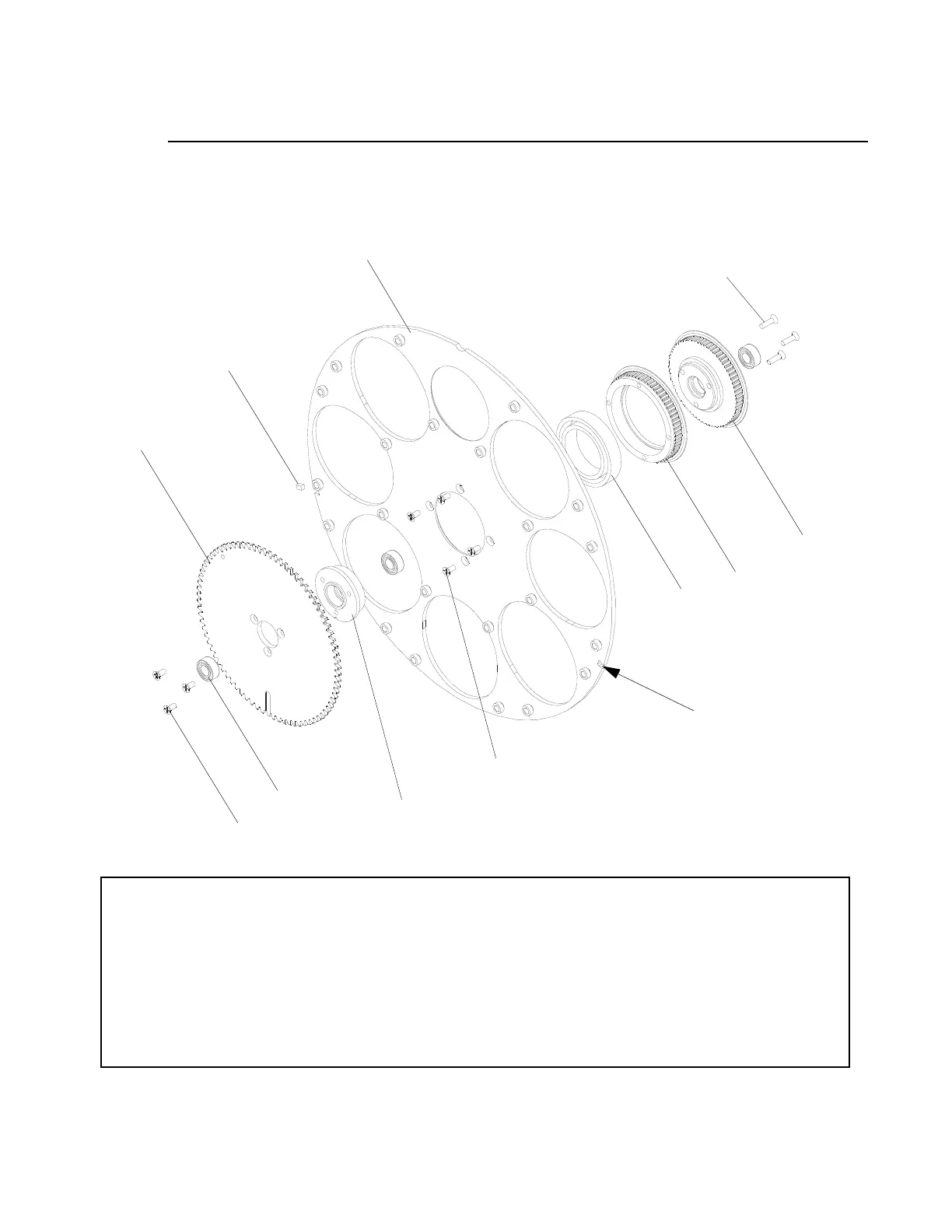

6 (x3)*
9 (x3)
3
10**
Note, this slot is
not used.
1
6 (x4)*
5
2
4
7 (x3)*
Notes:
*APPLY ONE DROP OF LOCTITE (ITEM 13) TO SCREW THREADS DURING INSTALLATION.
**CLEAN AREA AROUND MAGNET SLOT IN WHEEL THOROUGHLY WITH SOLVENT. INSTALL MAGNET (ITEM 10) INTO SLOT, SOUTH POLE
FACING OUT, USING TAPE (ITEM 12). APPLY TAPE CENTERED ON MAGNET WITH LONG SIDE FOLDED EQUALLY OVER WHEEL EDGE. PRESS
TAPE FIRMLY IN PLACE TO PROMOTE ADHESION BY RUBBING WITH A BLUNT TOOL.
WHEN INSTALLING GOBO/GAG CARRIER, TIME ASSEMBLY BY ALIGNING TIMING MARK ON SUN GEAR (ITEM 1) WITH HOLES ON PLANET
GEAR. ROTATE SUN GEAR SO WHITE MARK IS VISIBLE, THEN INSTALL CARRIER SO TWO TEETH WITH HOLES MESH WITH WHITE TOOTH.
REPEAT FOR ALL CARRIERS.
VERIFY THAT ASSEMBLY SPINS FREELY BY HOLDING SUN GEAR (ITEM 1) AND SPINNING THE PLATE/PLANETS AROUND WITH A FINGER IN
THE OPEN HOLE OF THE PLATE (ITEM 5). THERE SHOULD BE NO DRAG IN THE ASSEMBLY.
INSTALL PULLEY (ITEM 3) TO ASSY LAST WHILE ALL THREE BEARINGS (ITEM 9) ARE ALIGNED ON AN AXLE SHAFT BEFORE TIGHTENING
THREE SCREWS TO ENSURE ALIGNMENT.
8
