CAUTION: Be careful not to lose belt bearing, washer, screw or post. These will be required for
reassembly and installation.
Step 6. Slip belt off of animation wheel. Remove wheel.

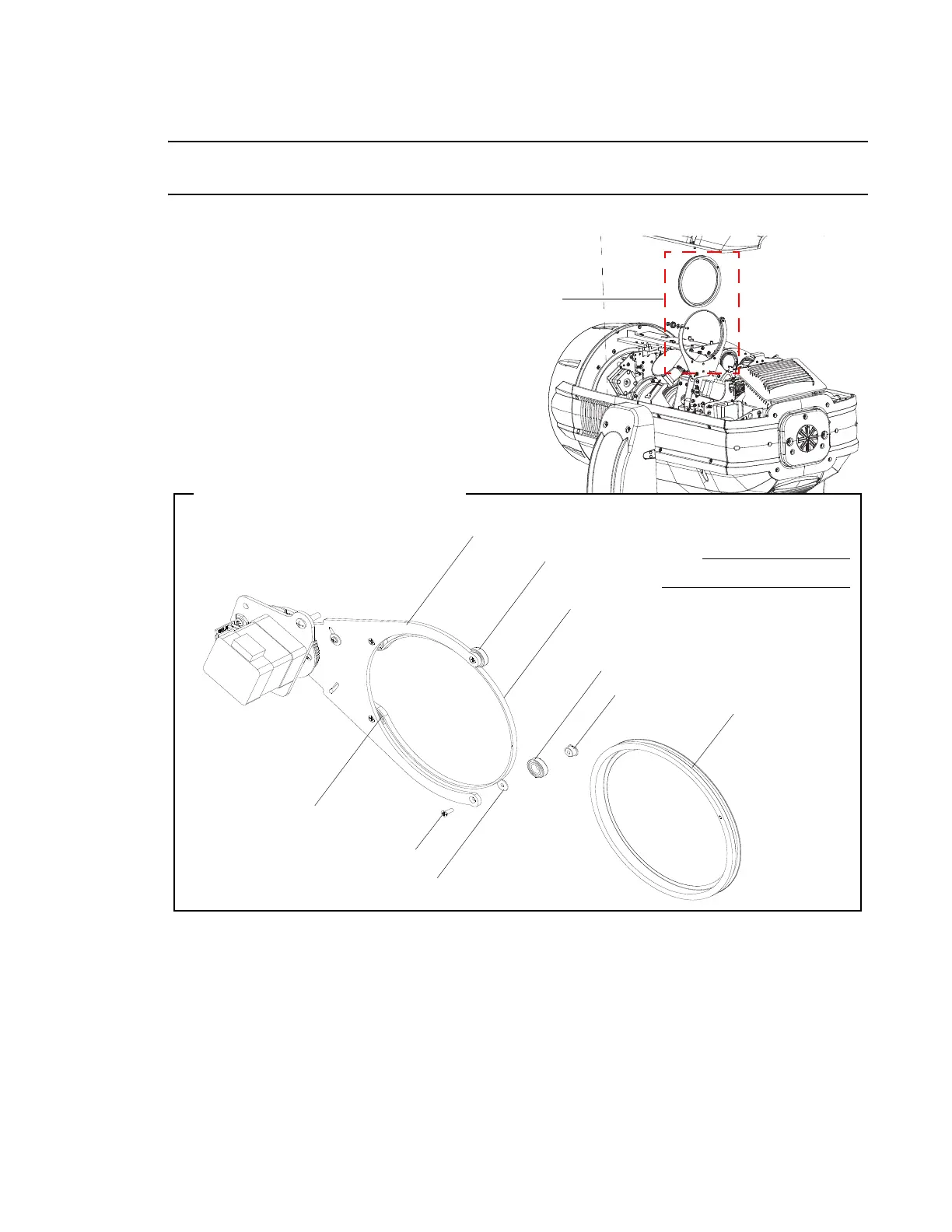

Figure 2-11: Animation Wheel Removal & Installation
Step 7. Slip belt around new wheel. Seat on all three bearings.
Step 8. Reassemble post onto bearing and washer. Hand-tighten down with screw.
Step 9. Swing animation arm back into beam area and hand-tighten down bulkhead screw.
Step 10. After animation wheel is installed, reinstall head cover.
See Detail
Animation Wheel Assembly (Detail)
Animation Wheel Assembly
Drive Belt
Animation Wheel
Belt Bearing
Belt Bearing
Bearing Post
Bearing Screw
Bearing Washer
Belt Bearing
Note:
Assembly shown for clarity.
