VARI❋LITE - VL4000 BEAMWASH LUMINAIRE SERVICE MANUAL
52 02.9704.6010 0
VL4000 BeamWash Optics Assembly (continued)

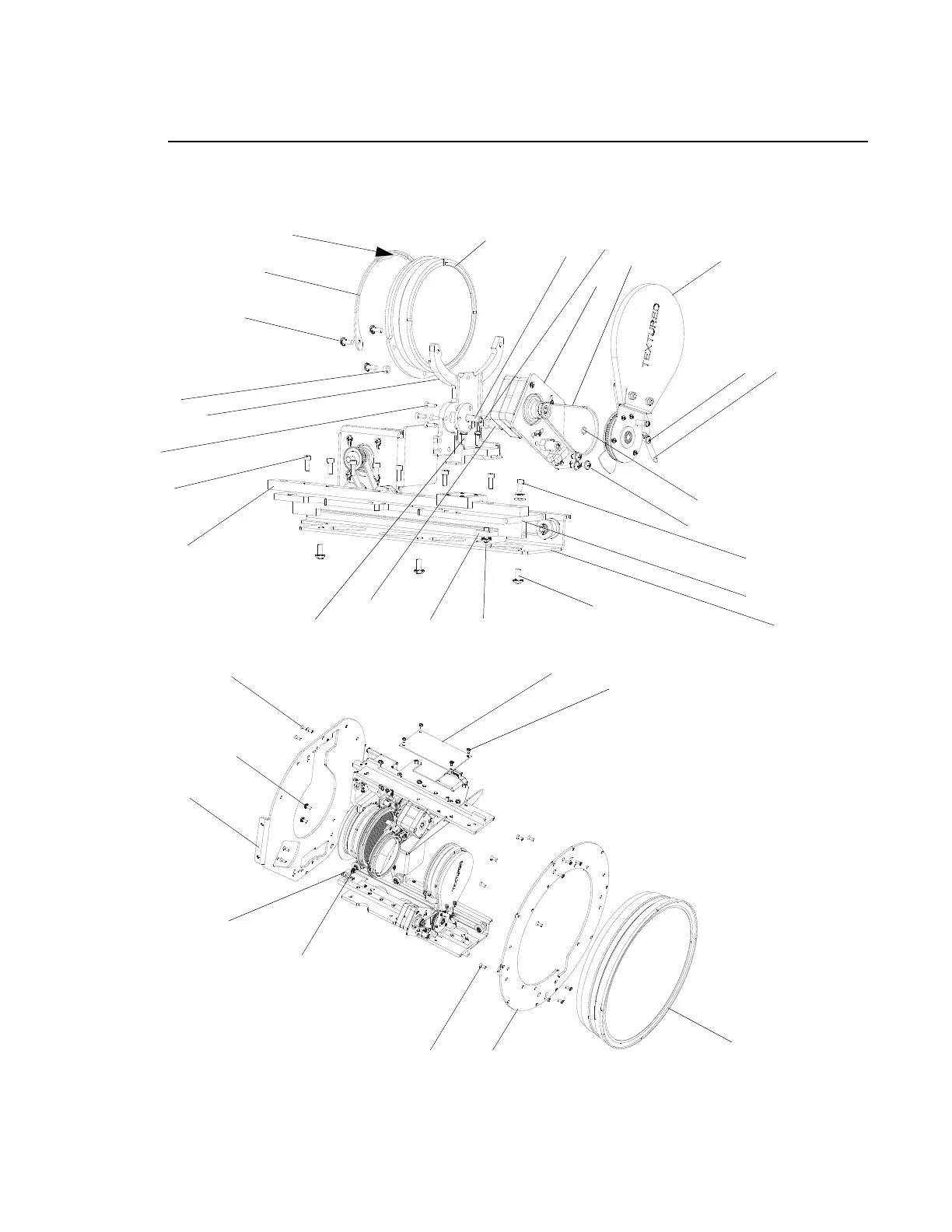

Figure 3-16: VL4000 BeamWash Optics Assembly (Part 2)
21
44
RTV Bead**
30 (x3)
40
9
32 (x4)*
17
10
16
37
1
29 (x3)
15
33
42
26, 39, 38
4
12
31 (x3)
36
8
41
25 (x4)
19
27 (x5)*
35 (x6)
23, 43
34 (x12)*
31 (x2)
6
24 (x2)
35 Ref
28 (x7)*
5
22
*APPLY LOCTITE 242 TO THREADS
PRIOR TO INSTALLATION.
**APPLY APPROX 1.25" BEAD OF
RTV TO INTERSECTION OF BAFFLE
AND LENS GROUP 1 APPROX
LOCATION MIDWAY BETWEEN TWO
MOUNTING SCREWS AS SHOWN
AFTER BAFFLE INSTALLATION.
ALLOW TO AIR CURE.
NOTE: VERIFY THAT TWO
OPTIC SENSORS ARE
INSTALLED THRU THE
RECTANGULAR CUTOUTS
IN THE REAR BULKHEAD
AND ARE PRESSED ALL
THE WAY UP AGAINST THE
BULKHEAD BEFORE
TIGHTENING THE
MOUNTING SCREW. THIS
WILL SET THE PROPER
POSITION FOR LENS
CALIBRATION.
