Operation7722−1/A1
Winterthur Gas & Diesel Ltd.
4/ 5
2.3 Lubrication
The lubrication system of the ELBA is connected to the low-pressure oil system of the
engine. In the housing (1, Fig. 4) lubricating oil (3) flows through the pipes (2) to the
shafts to lubricate the gear wheels. Oil that is not used flows through the oil return to
the crankcase.
Note: Damage to the gear wheels can occur if the oil supply to the ELBA
system stops.
WCH03085
DRIVING END
I
I
I - I
1
1
2
2
3

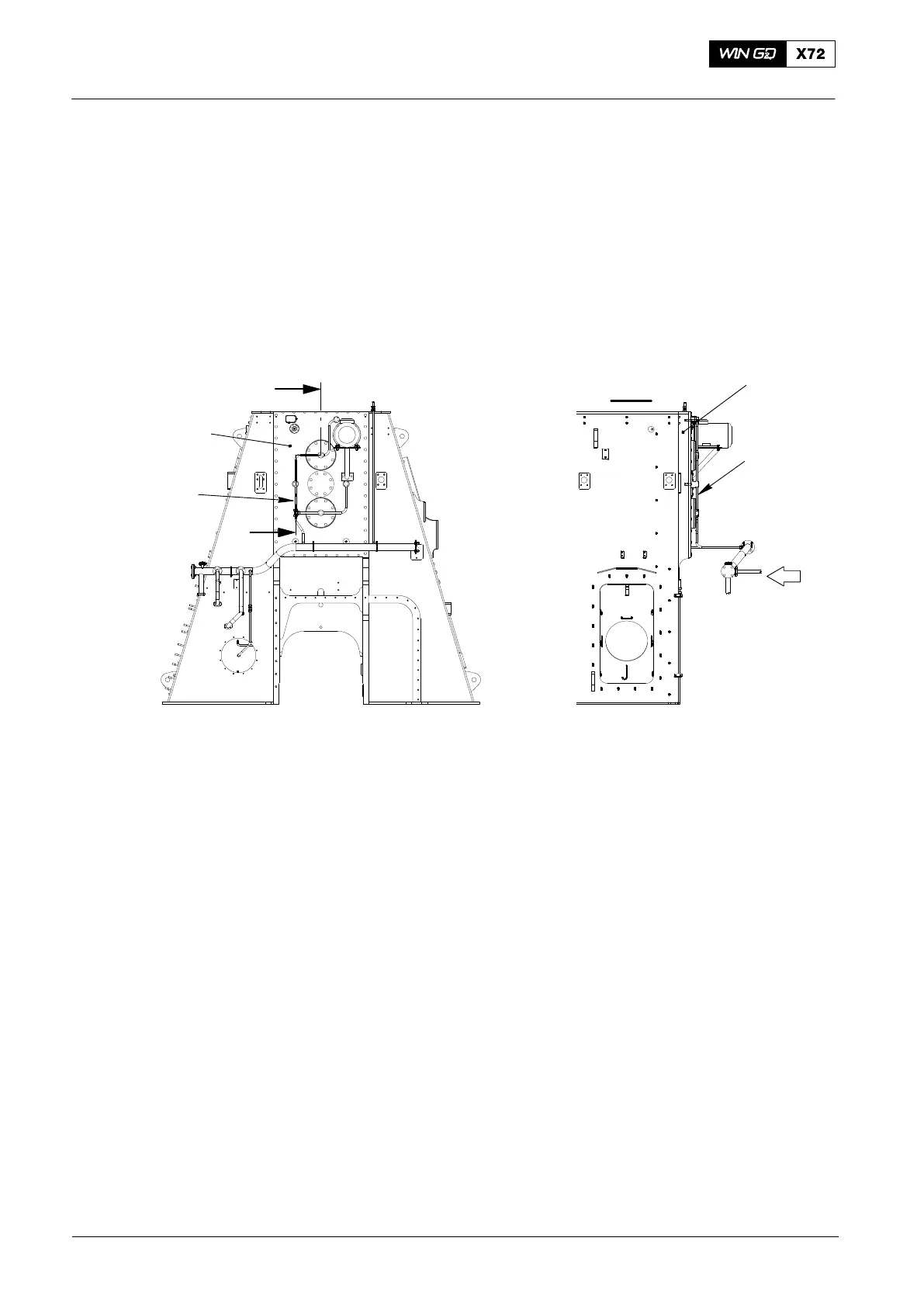

Fig. 4: ELBA Lubrication System
1 Housing 3 Oil inlet
2 Pipe
2.4 ELBA Failure
If the ELBA becomes defective, the engine can continue to operate, but there could
be an increase of 2
nd
order vibration at some engine speeds. Table 1 shows the error
modes and descriptions.
2.4.1 Procedure
If there is damage to, or problems with the electric motor, control system or gear
wheels do the procedure that follows:
Note: Do not set to OFF the main switch in the terminal box.
1) In the terminal box in the control room, set to OFF the monitor switch.
2) Refer to the documentation of the manufacturer and send a report to Wärtsilä
Services, Switzerland.
Refer to the Maintenance Manual 7722−1 for the procedures that follow:
D Removal and Installation of the bearings
D Checks
D Permitted limits of clearances.
2015-12
Integrated Electric Balancer
