Xerox Phaser 3330 Service Manual

Image Quality
Xerox Internal Use Only Phaser 3330 and WorkCentre 3335/3345
Service Manual
3-5

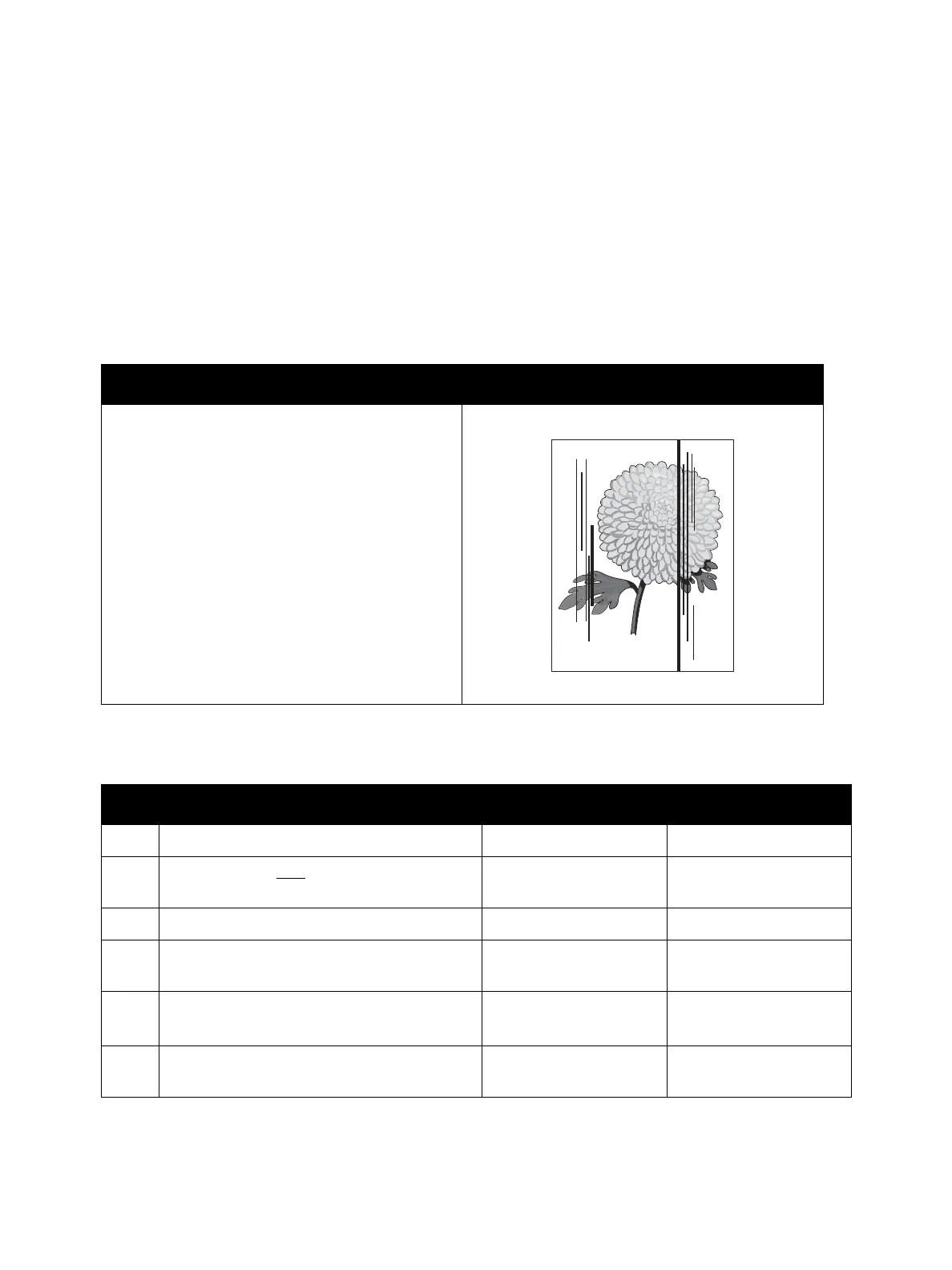

Vertical Black Line or Band
Black vertical lines or bands appear in the printed image.
Initial Actions
• Clean the Laser Unit window with a clean cotton swab.
• On the ADF or DADF, check the Platen for scratches or debris
Troubleshooting Reference Table
Troubleshooting Procedure Table
Applicable Parts Example Print
• Toner Cartridge, Refer to Xerox Supplies
and Accessories.
• Transfer Roller (PL 3.1A.40, Parts List 3.1A
Frame (2 of 2))
•
Fuser (PL 3.3.36, Parts List 3.3 Fuser)
• ADF Scanner Assembly (Parts List 7.1
WorkCentre 3335 SCANNER and ADF)
• DADF Platen Assembly (Parts List 8.1
WorkCentre 3345 SCANNER and DADF)
Step Actions and Questions Yes No
1. Is this a WC3335 or WC3345? Go to step 2. Go to step 5
2. Do lines appear only when using the
ADF/DAFDF?
Go to step 3 Go to step 4
3. Is the defect on the original document? Replace the original Clean the CVT Glass
4. Does the defect appear on both copies and
prints?
Go to step 5 Clean the Platen.
5. Replace the Toner Cartridge.
Does the error persists?
Go to step 6 Complete
6. Replace the Transfer Roller (PL 3.1A.40, Parts
List 3.1A Frame (2 of 2))
Complete
Vertical Stripes

Xerox Phaser 3330 Specifications

General

Print Technology	Laser
Print Speed	Up to 42 ppm
Print Resolution	Up to 1200 x 1200 dpi
First Page Out Time	As fast as 6.5 seconds
Monthly Duty Cycle	Up to 80, 000 pages
Standard Paper Capacity	250 sheets
Maximum Paper Capacity	850 sheets
Processor Speed	600 MHz
Memory	256 MB
Paper Output Capacity	150 sheets
Print Languages	PCL 5e, PCL 6, PostScript 3
Operating System Compatibility	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet
Media Sizes Supported	Letter, Legal, Executive, A4, A5
Maximum Paper Size	8.5 x 14 in (Legal)
Weight	10.6 kg
