Xerox Phaser 3330 Service Manual

Service Parts Disassembly
Xerox Internal Use Only Phaser 3330 and WorkCentre 3335/3345
Service Manual
4-93
Feed Actuator Spring
Parts List 3.1A Frame (2 of 2)
WARNING: Do not perform repair activities with the power on or electrical power supplied to the
machine. The machine could activate and cause serious personal injury when the power is on or
electrical power is supplied.
1. Do steps 1-4 in the Preparation section (page 4-3).
2. Undock the printer from the optional Tray 2 Base. (page 4-8).
3. Remove Tray 1 (page 4-6).
4. Remove the Duplex Unit (page 4-7).
Note: Before performing this step, note where the Feed Actuator Spring hooks into the frame.

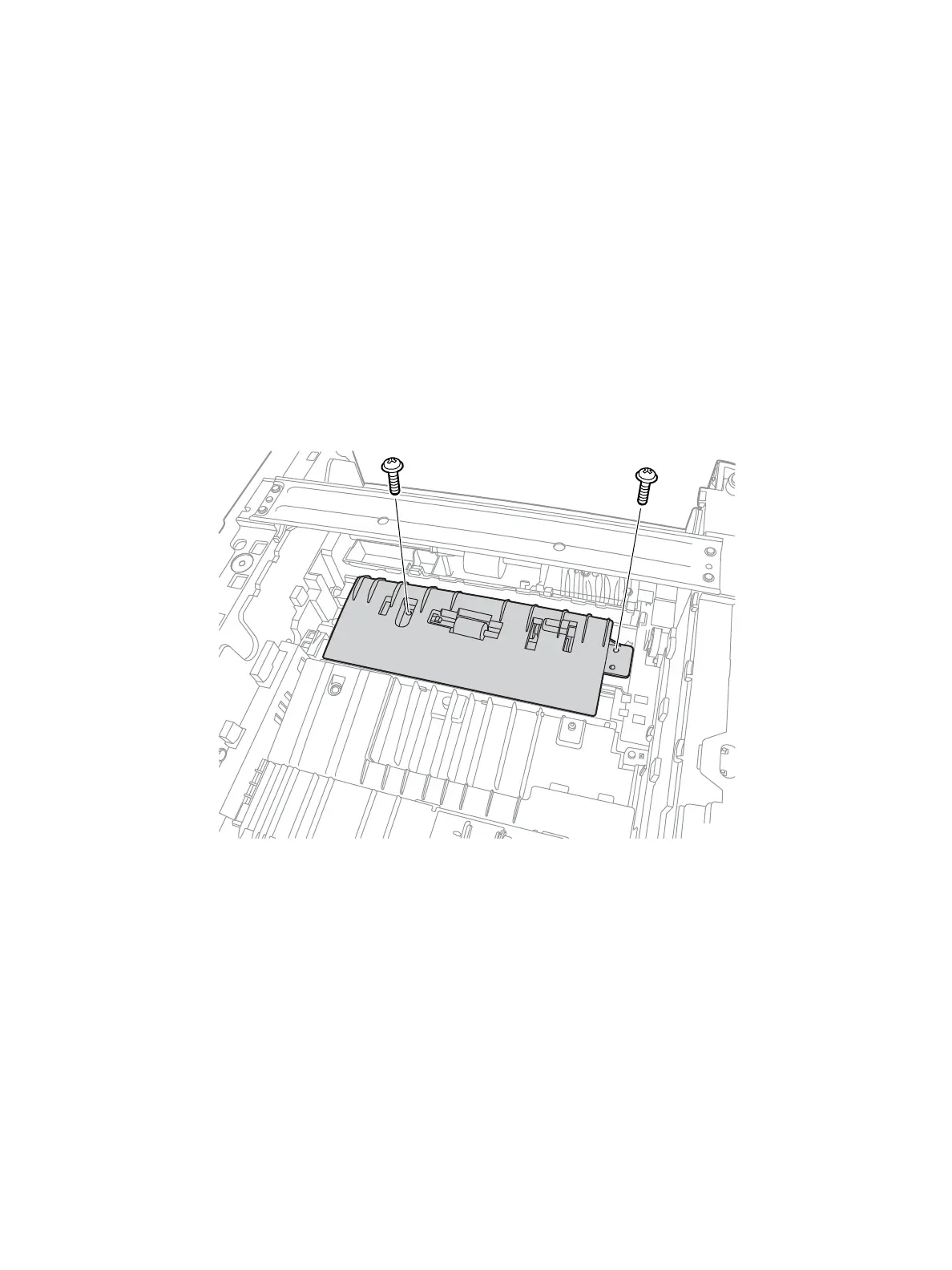

5. Remove 2 screws (silver, flanged, tap, 10 mm) and remove the sensor cover.
s3320-096
