Xerox Phaser 3330 Service Manual

Service Parts Disassembly
Phaser 3330 and WorkCentre 3335/3345 Xerox Internal Use Only
Service Manual
4-78
Modem (Fax) Interface Cable
Parts List 6.2 WorkCentre 3335/3345 Middle Cover
WARNING: Do not perform repair activities with the power on or electrical power supplied to the
machine. The machine could activate and cause serious personal injury when the power is on or
electrical power is supplied.
1. Do steps 1-4 in the Preparation section (page 4-3).
2. Remove the Front Door (page 4-13).
3. Remove the Rear Door (page 4-13).
4. Remove the Left Cover (page 4-15).
5. Remove the Right Cover (page 4-17).
6. Remove the Scanner (page 4-103).
7. Remove screws (2) and lift the Fax board cover off of the Fax Board (page 4-76).

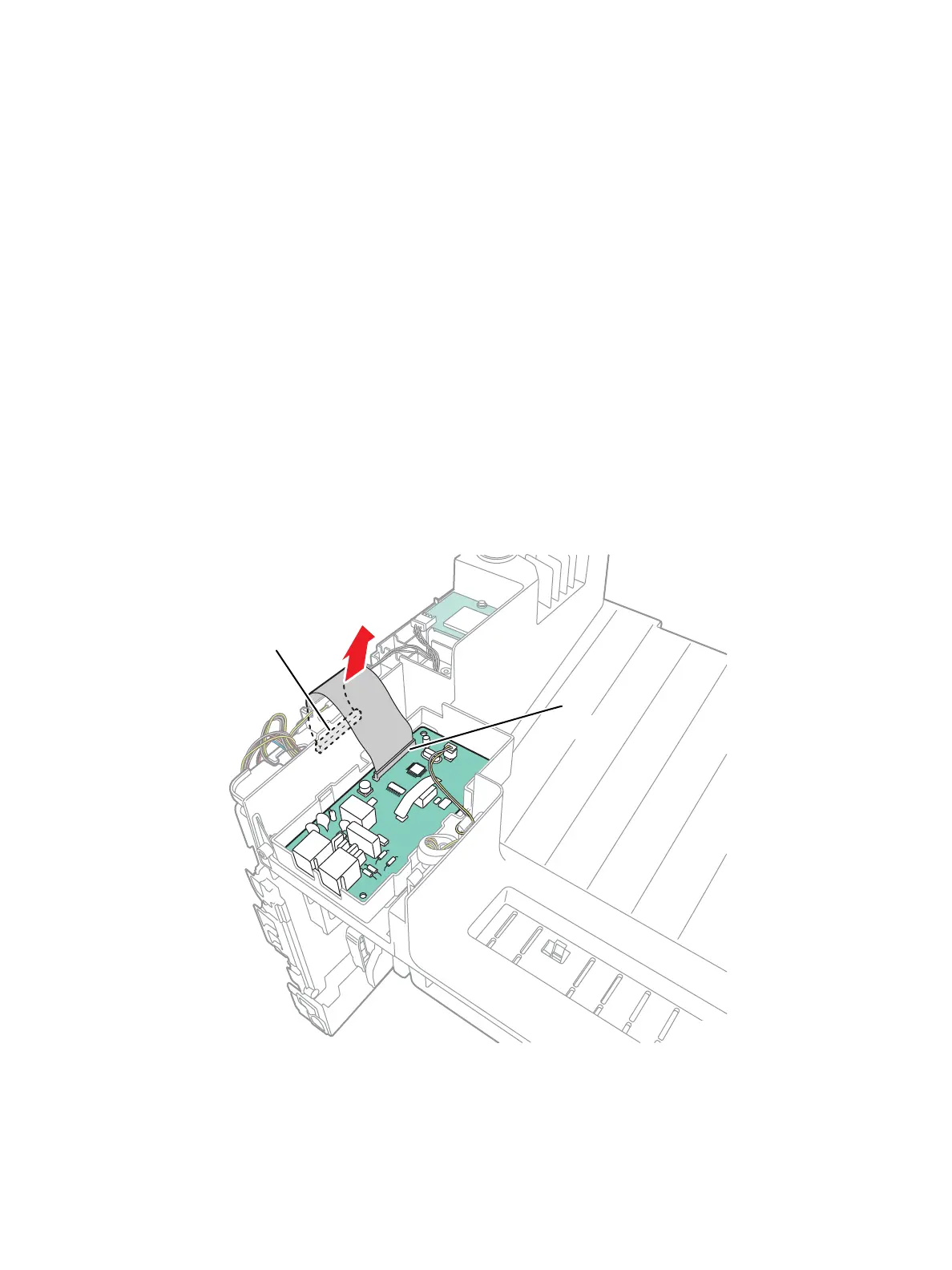

8. Disconnect the Modem Interface Cable at P/J1 on the Fax Board.
9. Remove the Upper Middle Cover (page 4-23).
10. Disconnect CN9 or CN26 to remove the Modem Interface cable.
s3320-256
P/J1
CN9 (3315)
CN26 (3325)
