Xerox Phaser 3330 Service Manual

Service Parts Disassembly
Phaser 3330 and WorkCentre 3335/3345 Xerox Internal Use Only
Service Manual
4-152
Optional Tray 2 Clutch
Parts List 12.3 Optional Tray Frame ETS
1. Disconnect the Optional Tray harness.
2. Remove the Optional Tray 2 Right Side Cover (page 4-149).
3. Unplug the Clutch connector.

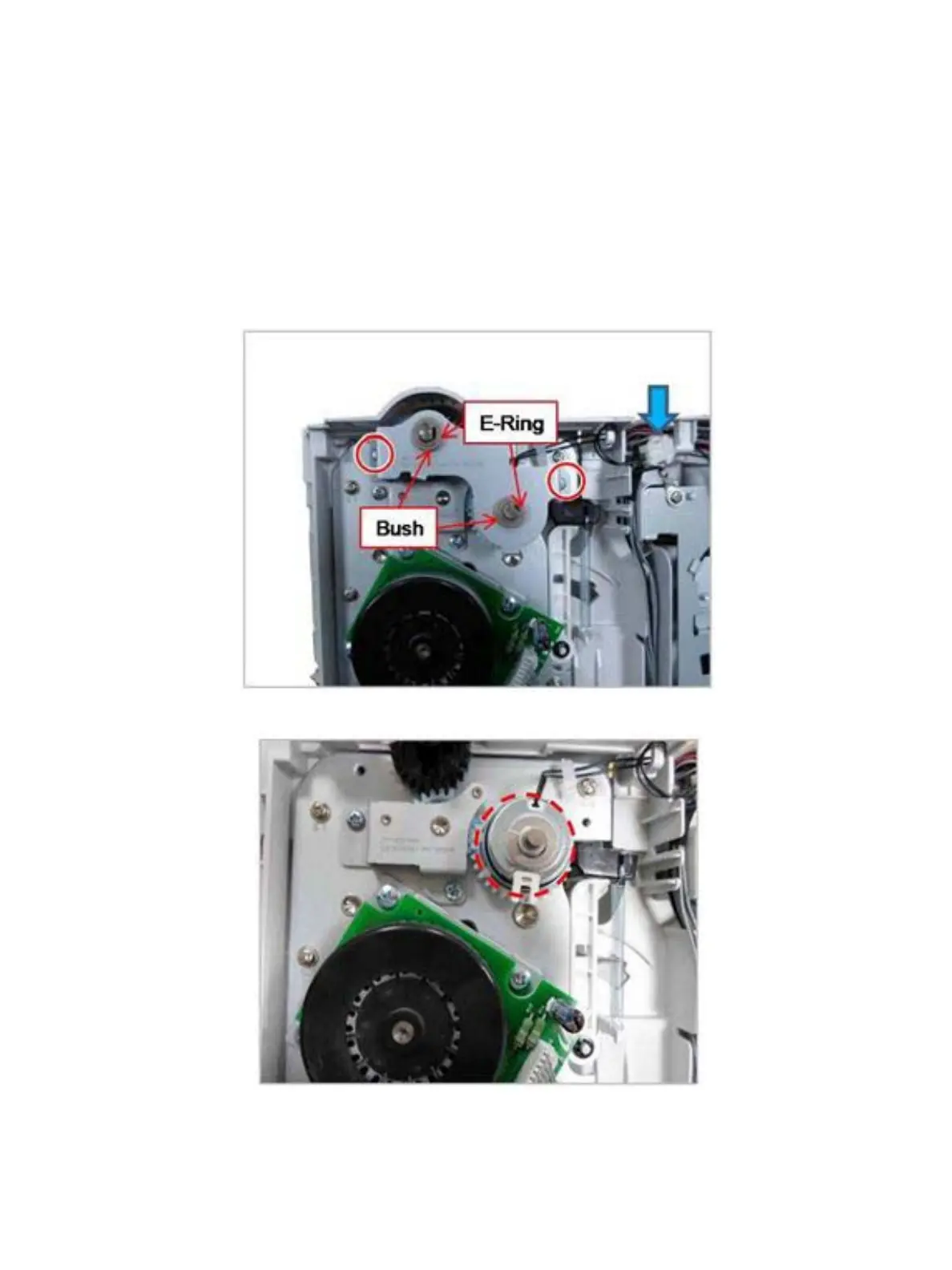

4. Remove 2 E-rings and 2 Bushings.
5. Remove 2 screws and release the clutch bracket..
6. Remove the Optional Tray 2 Clutch.
