Xerox Phaser 3330 Service Manual

Service Parts Disassembly
Xerox Internal Use Only Phaser 3330 and WorkCentre 3335/3345
Service Manual
4-107
A4 Middle Platen
A4 Middle Platen Assembly
Parts List 9.2 WorkCentre 3335/3345 Platen
WARNING: Do not perform repair activities with the power on or electrical power supplied to the
machine. The machine could activate and cause serious personal injury when the power is on or
electrical power is supplied.
1. Do steps 1-4 in the Preparation section (page 4-3).
2. Remove the ADF/DADF, WorkCentre 3335, (page 4-138); WorkCentre 3345, (page 4-116).
3. Remove the Scanner (page 4-103).
4. Remove the Control Panel (page 4-73).

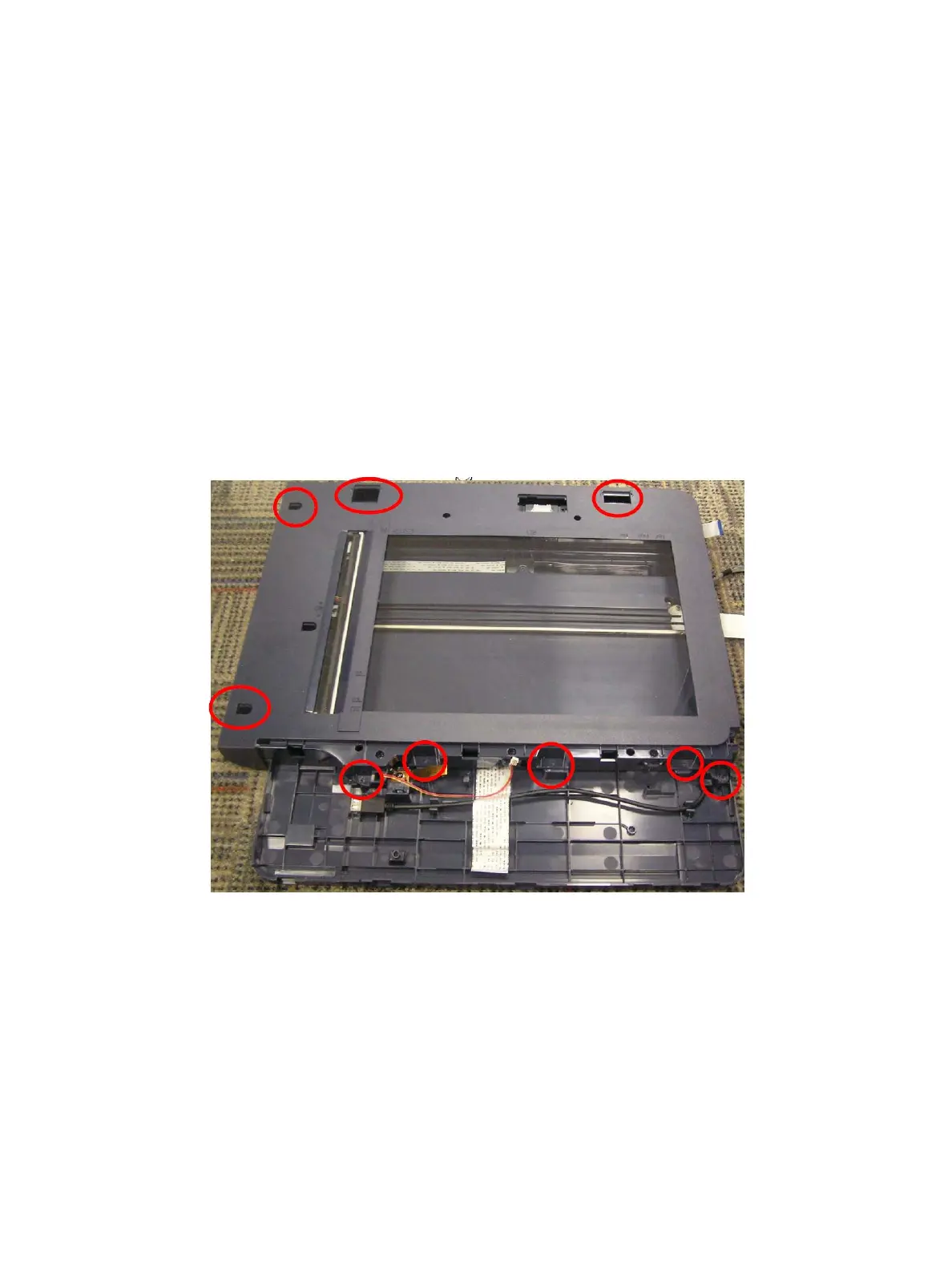

5. Remove 9 screws (flanged, tap, 10 mm).
6. Release all of the catches from the back of the assembly and remove the Upper Platen Assembly
(Parts List 9.2 WorkCentre 3335/3345 Platen, PL 9.2.1).
