Xerox Phaser 3330 Service Manual

Service Parts Disassembly
Phaser 3330 and WorkCentre 3335/3345 Xerox Internal Use Only
Service Manual
4-114
Timing Gear Belt (WorkCentre 3335/3345)
Parts List 9.2 WorkCentre 3335/3345 Platen
WARNING: Do not perform repair activities with the power on or electrical power supplied to the
machine. The machine could activate and cause serious personal injury when the power is on or
electrical power is supplied.
1. Do steps 1-4 in the Preparation section (page 4-3).
2. Remove the DADF/ADF, WorkCentre 3345 (page 4-116); WorkCentre 3335 (page 4-138).
3. Remove the Control Panel (page 4-73).
4. Remove the A4 Middle Platen (page 4-107).

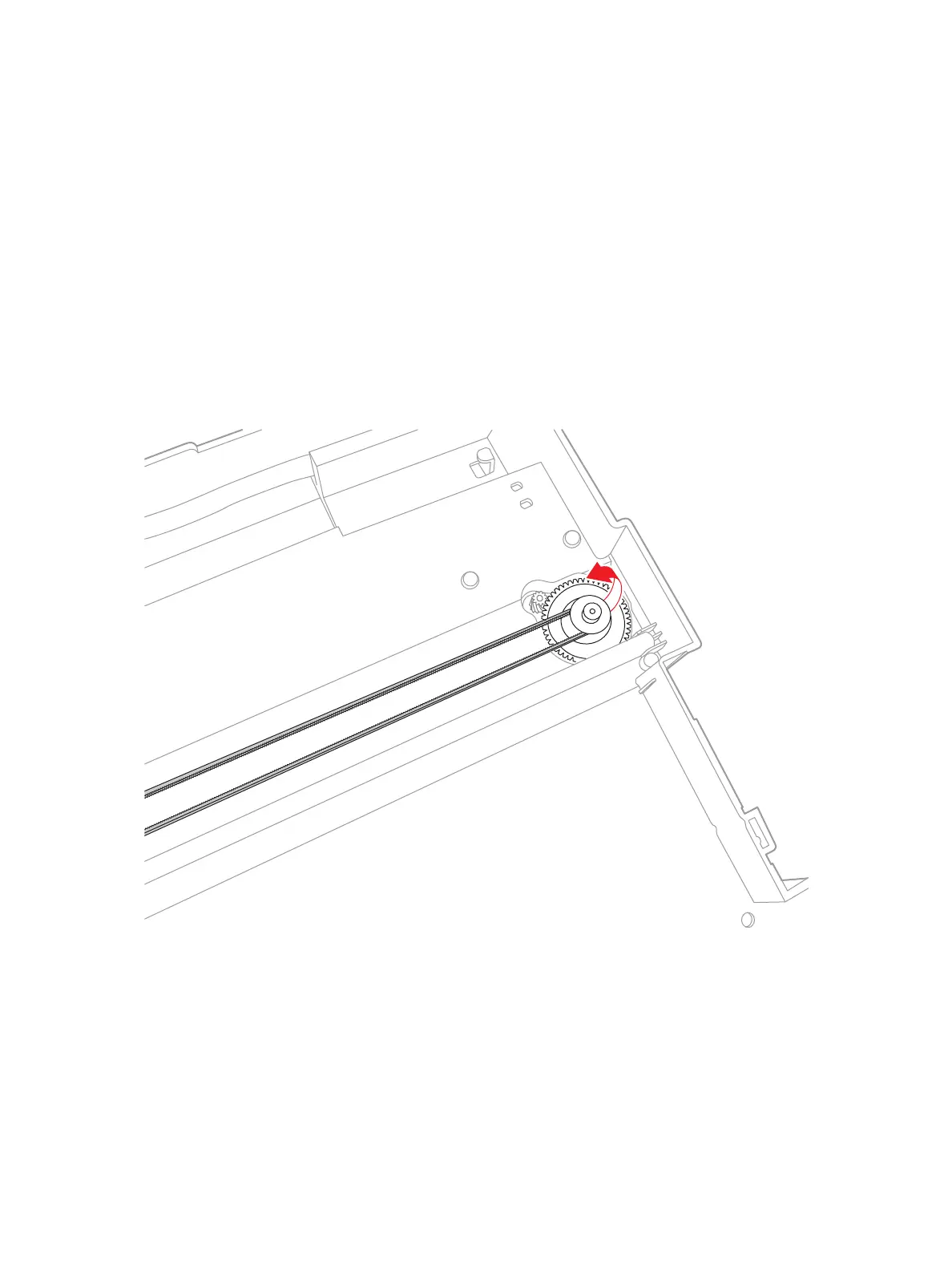

5. Disengage the Timing Gear Belt (Parts List 9.2 WorkCentre 3335/3345 Platen, PL 9.2.13) from the
scan drive gear.
s3320-186
