Xerox Phaser 3330 Service Manual

Service Parts Disassembly
Phaser 3330 and WorkCentre 3335/3345 Xerox Internal Use Only
Service Manual
4-36
5. Remove the Pin and lift the Retard Roller out of the Bypass Tray upper Guide.
Bypass Tray Pick Up Roller Assembly
Parts List 3.1A Frame (2 of 2)
WARNING: Do not perform repair activities with the power on or electrical power supplied to the
machine. The machine could activate and cause serious personal injury when the power is on or
electrical power is supplied.
1. Do steps 1-4 in the Preparation section (page 4-3)
2. Undock the printer from the optional Tray 2 Base. (page 4-8)
3. Remove the Bypass Tray (page 4-32).
4. Disengage the tab to separate the lower Bypass Tray Assembly from the upper Bypass Tray
Assembly.
Note: There is a Catch on the underside that must be cleared to separate the Bypass Upper and
Lower Assemblies.

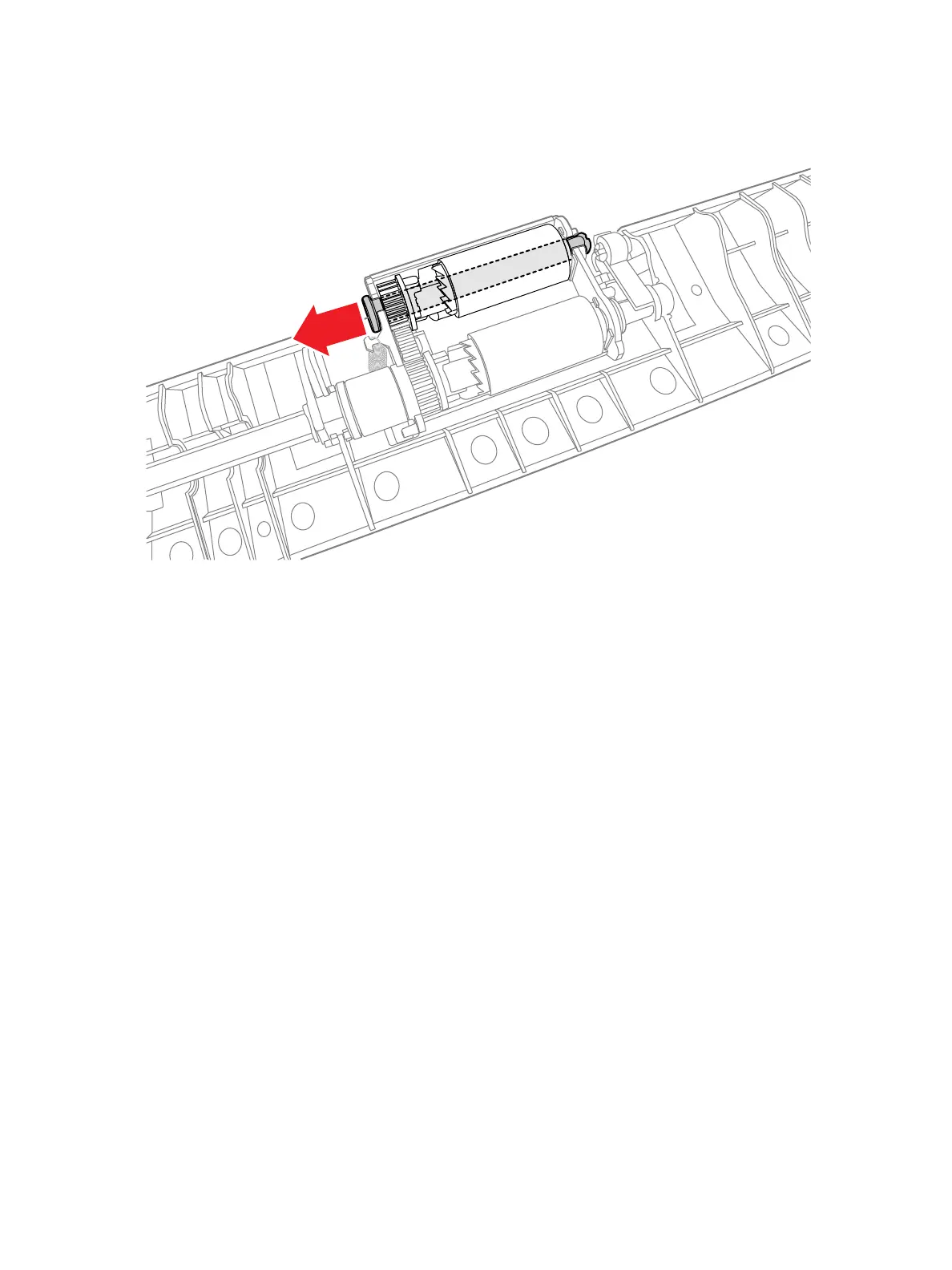

s3320-155
