Service Parts Disassembly
Xerox Internal Use Only Phaser 3330 and WorkCentre 3335/3345
Service Manual
4-79
DADF Board (3345 Only)
Parts List 8.1 WorkCentre 3345 SCANNER and DADF
1. Remove the DADF Assembly (page 4-116).

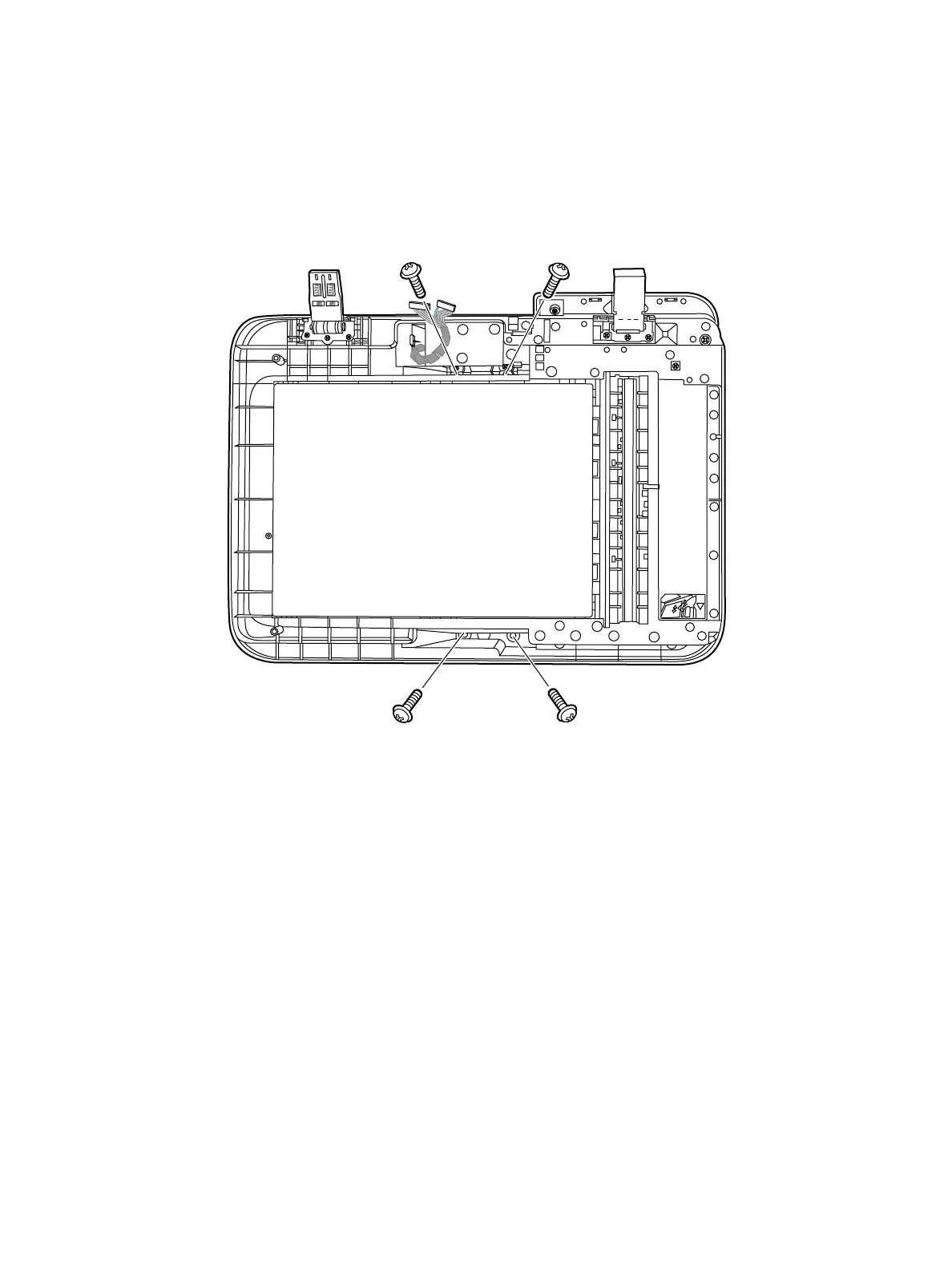

2. Remove 4 screws (silver, flanged, tapping, 10 mm) from the bottom of the DADF.
