Xerox Phaser 3330 Service Manual

Service Parts Disassembly
Xerox Internal Use Only Phaser 3330 and WorkCentre 3335/3345
Service Manual
4-157
Optional Tray 2 Pick Up Unit
Parts List 12.3 Optional Tray Frame ETS
1. Disconnect the Optional Tray harness.
2. Lift printer from the Optional Tray.
3. Remove the Optional Tray 2 Front Cover (page 4-147).
4. Remove the Optional Tray 2 Right Side Cover (page 4-149).
5. Remove the Optional Tray 2 main drive unit (page 4-155)

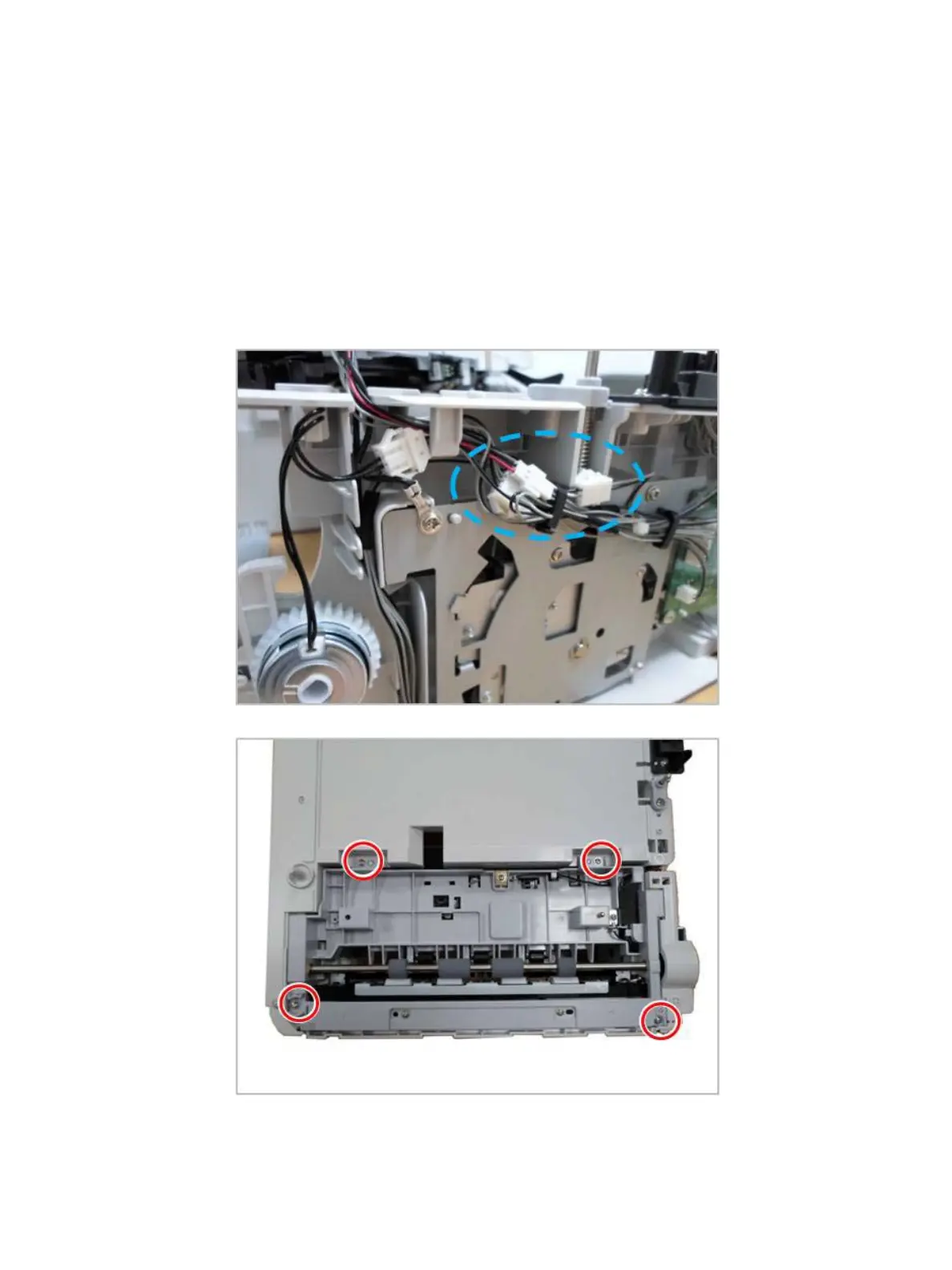

6. Unplug the connectors from the right side.
7. Remove 4 screws

Xerox Phaser 3330 Specifications

General

Print Technology	Laser
Print Speed	Up to 42 ppm
Print Resolution	Up to 1200 x 1200 dpi
First Page Out Time	As fast as 6.5 seconds
Monthly Duty Cycle	Up to 80, 000 pages
Standard Paper Capacity	250 sheets
Maximum Paper Capacity	850 sheets
Processor Speed	600 MHz
Memory	256 MB
Paper Output Capacity	150 sheets
Print Languages	PCL 5e, PCL 6, PostScript 3
Operating System Compatibility	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet
Media Sizes Supported	Letter, Legal, Executive, A4, A5
Maximum Paper Size	8.5 x 14 in (Legal)
Weight	10.6 kg
