Xerox Phaser 3330 Service Manual

Service Parts Disassembly
Phaser 3330 and WorkCentre 3335/3345 Xerox Internal Use Only
Service Manual
4-44
20 Feed Gear
Parts List 3.1A Frame (2 of 2)
WARNING: Do not perform repair activities with the power on or electrical power supplied to the
machine. The machine could activate and cause serious personal injury when the power is on or
electrical power is supplied.
1. Do steps 1-4 in the Preparation section (page 4-3).
2. Undock the printer from the optional Tray 2 Base. (page 4-8).
3. Remove the Main Drive Assembly (page 4-58).
4. Remove the Feed Drive Assembly (page 4-41).

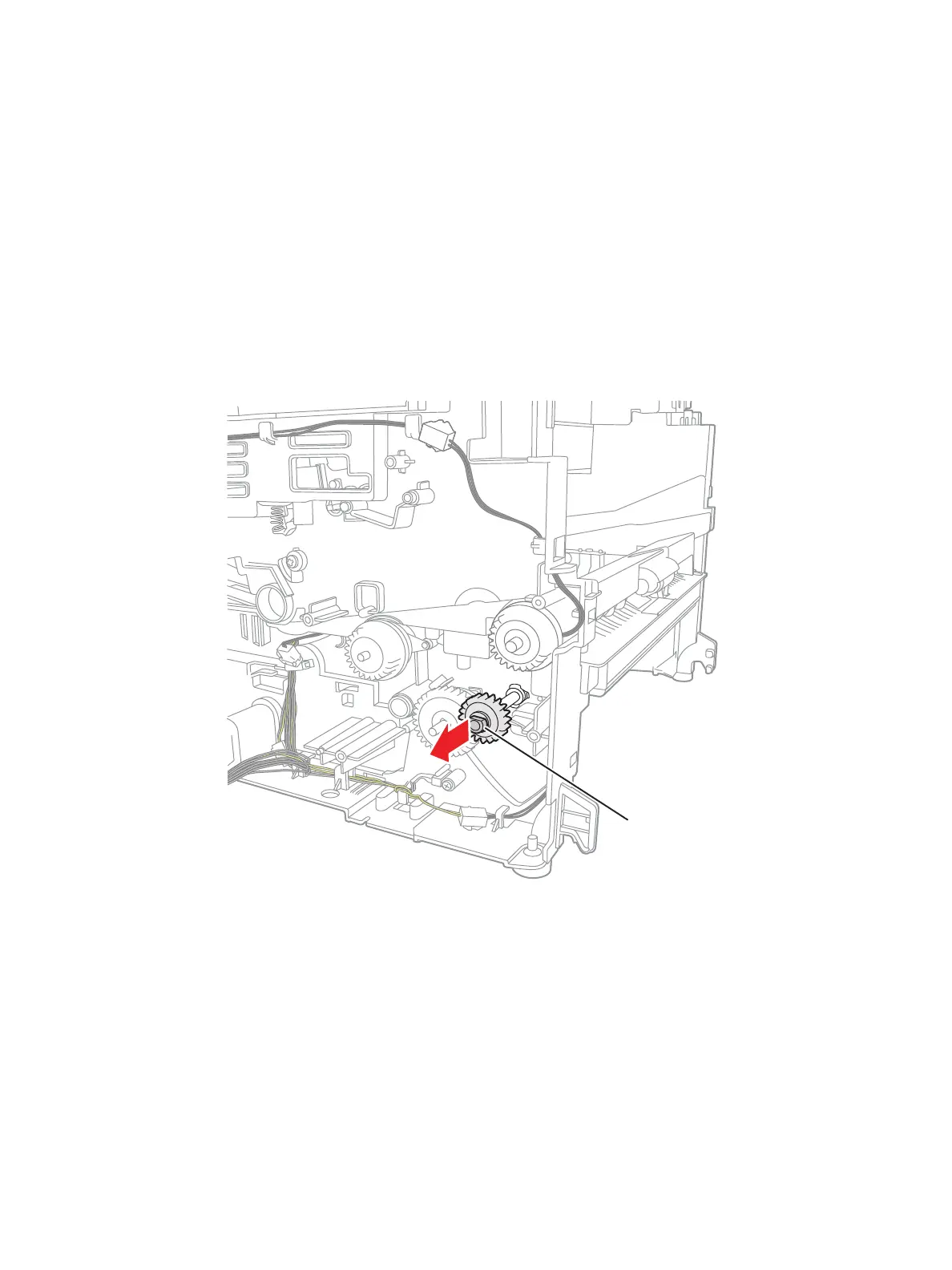

5. Remove the bushing and the 20 Feed Gear (Parts List 3.1A Frame (2 of 2), PL 3.1A.56).
s3320-140
Bushing
