Service Parts Disassembly
Xerox Internal Use Only Phaser 3330 and WorkCentre 3335/3345
Service Manual
4-117

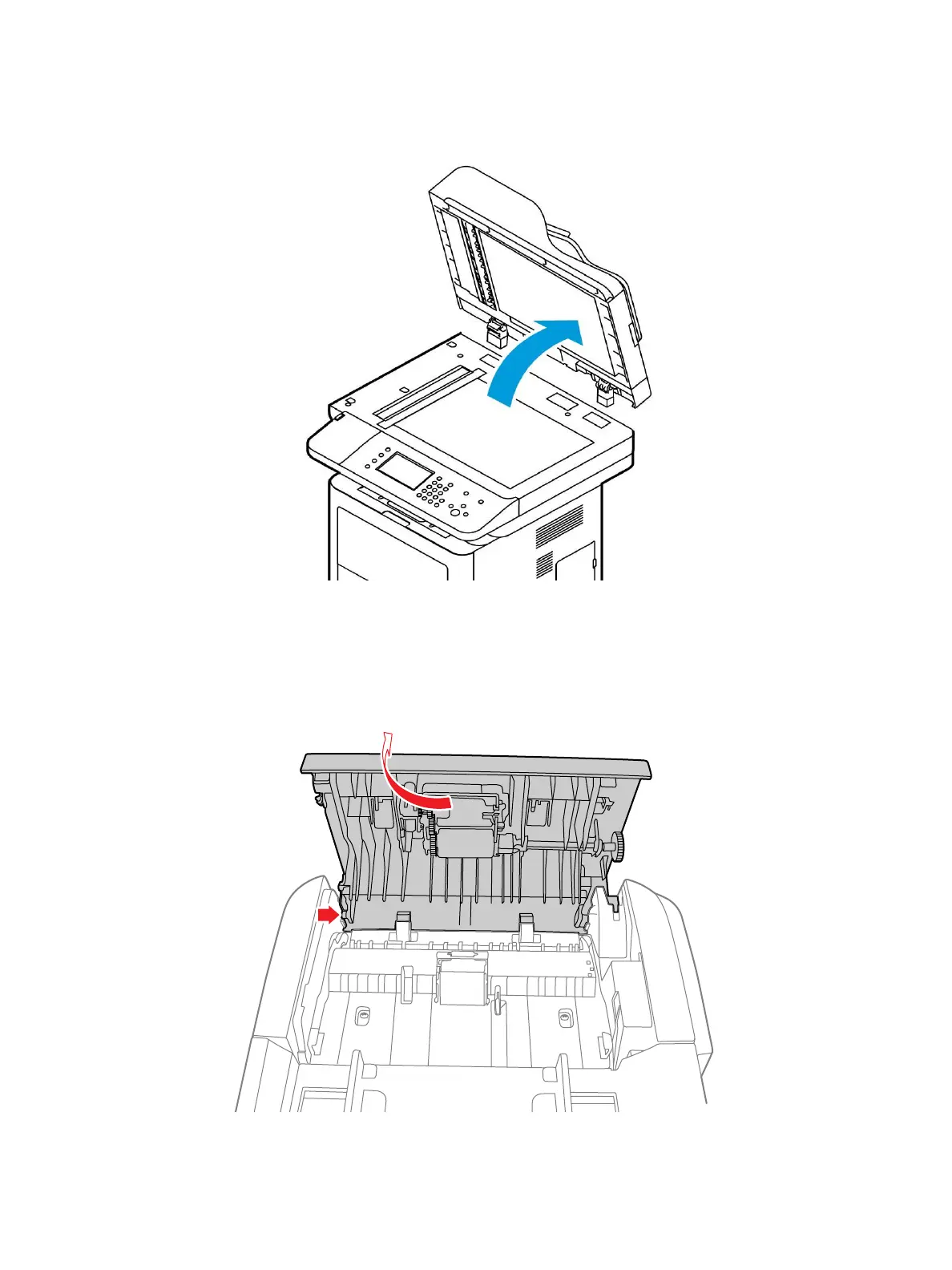

4. Lift up and release the DADF unit (Parts List 8.1A WorkCentre 3345 DADF, PL 8.1A.20).
DADF Cover
Parts List 8.1 WorkCentre 3345 SCANNER and DADF
1. Release the Boss on each side and remove the DADF Cover.
s3320-106
